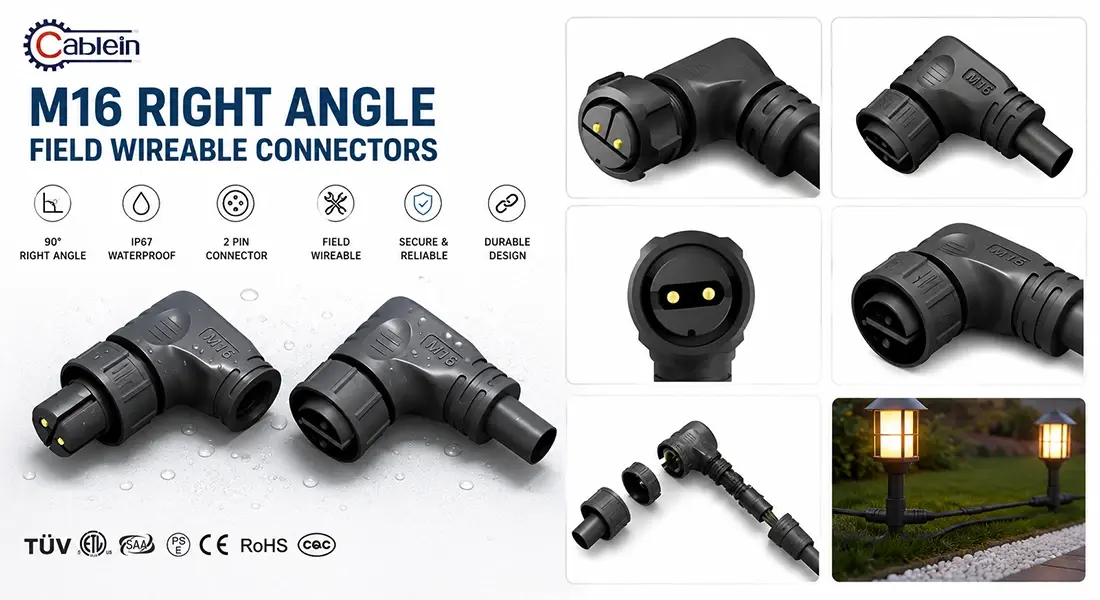

M16 Right Angle Field Wireable Connectors
2. Delivers IP67 or IP68 waterproof performance for demanding industrial environments.
3. Right-angle quick clamp design prevents cable stress in tight mounting spaces.
4. Ideal for solar inverters, battery cabinets, and conveyor system connections.
5. Factory-assembled cable assembly ensures consistent quality and rapid deployment.
6. TUV and CE certified, compliant with RoHS and ISO9001 standards.
7. Tested for consistent performance over repeated connections.
8. We offer fully custom cable harnesses with your choice of length, gauge, and termination.
M16 Right Angle Field Wireable Connectors – Professional Industrial Waterproof Connection Solution
When you need reliable connectivity in tight spaces, M16 Right Angle Field Wireable Connectors from Cablein Technology deliver enterprise-grade performance. Our connectors highlight fortified PA66 nylon lodging with gold-plated brass contacts and exactness silicone seals, accomplishing IP67/IP68 waterproof assurance. Supporting 2-12 stick arrangements with evaluations up to 500V DC/AC and 15A, they work dependably from -40℃ to 105℃. The ninety-degree calculated plan spares space in swarmed control boards whereas the fast clamp component empowers secure establishment without extraordinary apparatuses. TUV and CE certified, compliant with RoHS and ISO9001:2015 benchmarks, these field-wireable connectors suit cable distances across from 3-12mm and withstand over 500 mating cycles.
Why Choose Right-Angle Field Wireable Design?
Traditional straight connectors regularly make establishment cerebral pains in compact walled in areas. You confront cable twisting push, squandered board space, and muddled wire routing.
Our right-angle arrangement tackles these issues elegantly.
The 90-degree exit permits cables to run parallel to mounting surfaces. This plan dispenses with over the top cable circles and keeps your establishment organized. You pick up more usable space interior control cabinets and intersection boxes.
Field-wireable end implies you can customize cable lengths on-site. No require for pre-molded congregations or specialized creasing gear. Your specialists can perform patch or screw end specifically at the establishment point.
This adaptability diminishes stock complexity. You stock less SKUs and adjust rapidly to changing extend requirements.
The speedy clamp locking instrument locks in with a basic fractional turn. It gives secure cable maintenance without apparatuses. Amid upkeep, you can detach and reconnect quickly, minimizing downtime.
Technical Specifications That Matter
Electrical Performance
Your applications demand consistent power and signal transmission. Our connectors deliver:

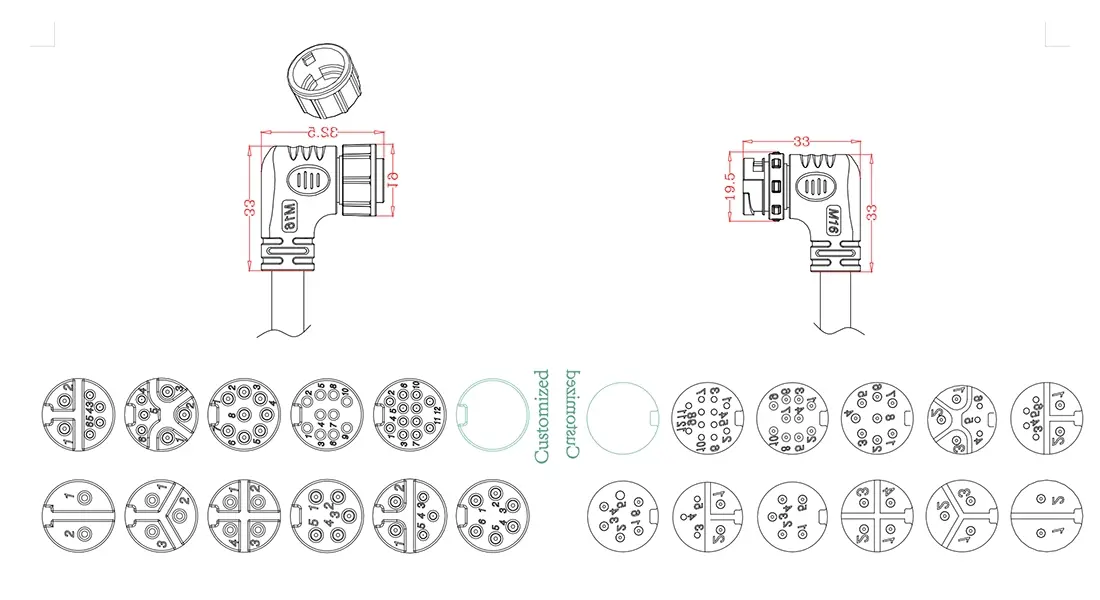

Multi-Pin Configuration Options:
- 2/3/4 contacts: 500V DC/AC, 15A/8A
- A+B hybrid contacts: 500V, 8A power + 3A signal
- 5-12 pin contacts: 100V, 8A/3A for sensor networks
Dielectric strength: DC 1KV, 2mA for 60 seconds
Insulation resistance: ≥200MΩ at DC 500V
These ratings ensure your connections maintain signal integrity under harsh electrical conditions.
Environmental Protection
Industrial environments are unforgiving. Our M16 Right Angle Field Wireable Connectors withstand:
- IP66/IP67 waterproof rating – Protects against dust ingress and water immersion
- Operating temperature: -40℃ to 105℃ – Functions in extreme climates
- Cable diameter range: 3-12mm – Accommodates various wire gauges
The reinforced PA66 housing resists vibration, temperature fluctuations, and chemical exposure. Gold-plated brass contacts prevent corrosion and maintain low contact resistance over thousands of cycles.
Real-World Applications
Solar Energy Systems
In solar inverters and battery cabinets, space is premium. The right-angle design allows you to mount connectors flush against equipment walls. Cables route neatly along surfaces rather than protruding awkwardly.
The IP67 sealing protects connections from rain, dust, and temperature swings in outdoor installations.
Industrial Automation
Conveyor systems, robotic arms, and sensor networks benefit from the space-saving profile. The 90-degree exit prevents cable strain in tight robotic joints where traditional straight connectors won't fit.
High vibration resistance ensures reliable data transmission in manufacturing environments. The quick-connect mechanism speeds up equipment changes on production lines.
LED Lighting and Urban Infrastructure
Stadium lighting, landscape installations, and agricultural lighting systems require weatherproof connections that last years without maintenance.
Our connectors handle repeated connection cycles without degradation. The field-wireable design lets installers create custom cable lengths for unique mounting situations.
Marine and Transportation
Salt spray, moisture, and vibration challenge connector reliability. Our corrosion-resistant housing and robust sealing maintain performance in deck-mounted control panels and rail transportation systems.
The low-profile right-angle design prevents accidental impact damage in high-traffic areas.
Quality Assurance You Can Trust
Cablein Technology implements ISO9001:2015 quality management across our 6,000㎡ production facility.
Every M16 Right Angle Field Wireable Connector undergoes:
- Waterproof integrity testing – Validates IP rating under pressure
- Insulation resistance verification – Ensures values exceed specifications
- Contact resistance measurement – Confirms optimal conductivity
- Mechanical stress testing – Verifies cable gland pull-out strength
- Temperature cycling – Tests performance across operating range
We maintain stable inventory of over 10,000 pieces per item. Standard delivery takes just 7-10 days. Custom orders receive flexible scheduling to meet your project timelines.
Our certifications include CE, RoHS, TUV, ETL, and multiple international standards, ensuring global compliance.
Customization Options
No two installations are identical. We offer comprehensive customization:
Hybrid configurations – Combine power and signal pins in one connector
Custom cable lengths – Specify exact dimensions for your application
Wire gauge selection – Match your power or data requirements
Overmold colors – Color-code connections for easy identification
Termination styles – Choose solder cups or screw terminals
Our engineering team provides 24-hour technical support throughout your project. We assist with connector selection, cable assembly design, and installation guidance.
With over 30 utility model patents and 9 years of industry experience, we handle complex customization requirements efficiently.
Frequently Asked Questions
Q: What cable distances across work with these connectors?
A: Our M16 connectors oblige cables from 3mm to 12mm breadth. Diverse seal embeds keep up IP evaluations over this range.
Q: Can I utilize them for control transmission?
A: Yes. Arrangements with 2-4 contacts back up to 15A at 500V. They're reasonable for DC control applications in sun powered frameworks and battery equipment.
Q: Which is way better – patch or screw termination?
A: Patch end offers prevalent vibration resistance and a more compact profile. Screw end permits quicker field repairs without patching gear. Select based on your upkeep requirements.
Q: How do I keep up EMC shielding?
A: When collecting, overlap the cable shield back over the inside protecting ring. This makes nonstop 360° EMI/RFI security for delicate flag applications.
Q: Are they congruous with other manufacturers?
A: Our connectors take after industry-standard measurements. They regularly mate with other M16 circular connectors, in spite of the fact that we suggest testing for basic applications.
Q: What's the anticipated benefit life?
A: Our connectors are tried to surpass 500 mating cycles whereas keeping up electrical and waterproof execution. Appropriate establishment amplifies operational life significantly.
Partner With Cablein Technology
Since 2017, we've delivered reliable waterproof connectivity solutions to customers in over 100 countries. Our modern manufacturing facility, experienced engineering team of 200+ professionals, and commitment to innovation make us your trusted partner.
We don't just sell connectors. We solve connection challenges.
Whether you need standard M16 configurations or fully customized cable assemblies, we provide the expertise and production capacity to support your projects.
Contact Us
Ready to discuss your connectivity requirements? Contact our technical team at nick@cableinco.com to request technical specifications, confirm pin configurations for your application, or M16 Right Angle Field Wireable Connectors samples for testing.
