QC16 Fast Lock Waterproof Connector
2. Offers both IP67 and IP68 waterproof ratings for medium-power applications.
3. Straight quick clamp mechanism provides tool-free locking with a simple twist.
4. Suitable for industrial power supplies, outdoor LED drivers, and renewable energy gear.
5. Pre-molded cable design reduces on-site assembly time and potential errors.
6. CE and RoHS certified, manufactured under ISO9001 quality control systems.
7. Rated for -40℃ to 150℃ for extreme temperature operation.
8. Customization includes cable length, wire gauge, overmold color, and pin configuration.
QC16 Fast Lock Waterproof Connector – Industrial-Grade Power & Signal Solution
When your installation demands rapid deployment and uncompromising reliability, the QC16 Fast Lock Waterproof Connector delivers enterprise-level performance you can trust. Built by Cablein Innovation, this connector highlights a tool-free speedy clamp component that locks safely with a straightforward bend, evaluated for 500V DC/AC and up to 15A current capacity. With double fixing rings accomplishing IP67 and IP68 assurance, gold-plated brass contacts guaranteeing ≥200MΩ cover resistance, and a temperature extend from -40℃ to 150℃, it's built for extraordinary conditions. Pre-molded cable plans kill field get together blunders, whereas customizable stick arrangements (2P to 12P) adjust to your correct venture specifications.
What Is the QC16 Fast Lock Waterproof Connector?
The QC16 Fast Lock Waterproof Connector is a precision circular interconnect solution designed to eliminate the hassles of traditional screw-thread coupling. Its bayonet-style push-pull locking mechanism enables you to achieve secure connections in seconds—no tools, no threading, no delays.
You'll appreciate this when working in high-vibration open air settings. Conventional strung connectors can release over time, causing discontinuous signals or perilous electrical shorts. The QC16 fathoms this torment point with a spring-loaded pike framework that mechanically interlocks. Once clicked into put, it won't back out due to vibration, guaranteeing steady contact weight and continuous control or flag integrity.
This connector is broadly recognized over businesses for keeping up association soundness against dampness entrance, clean defilement, and mechanical shock—critical in mechanical robotization, open air framework, and accuracy agriculture.
Technical Specifications That Matter
You need connectors that meet real-world demands. The QC16 Fast Lock delivers specifications backed by rigorous testing and international compliance.
Core Electrical Parameters:
- Rated Voltage & Current: 500V DC/AC with 15A (2-4 contacts), 8A+3A (A+B contacts), and 100V DC/AC for 5-12P configurations
- Dielectric Withstanding Voltage: DC 1KV, 2mA, 60 seconds
- Insulation Resistance: ≥200MΩ at DC 500V
- Contact Resistance: <5mΩ for efficient power transmission
Mechanical & Environmental Protection:
- IP Rating: IP66 / IP67 / IP68 (depending on configuration)
- Operating Temperature: -40℃ to 105℃
- Material: UV-resistant PA66 nylon with UL94V-0 flame rating
- Contact Material: Gold-plated solid brass for corrosion resistance
- Cable Diameter Range: 3-12mm
- Mating Cycles: Over 1,000 cycles without mechanical fatigue
The gold-plated contacts deliver low resistance and high durability. The PA66 housing withstands UV exposure and extreme thermal cycling. You get reliable performance whether installed in a desert solar farm or an offshore marine sensor network.
Key Advantages for Your Project
1. Tool-Free Installation Saves Time and Labor
Your installation teams will appreciate the quick clamp mechanism. Simply align the connector, push, and twist to lock. No screwdrivers. No thread alignment. This reduces installation time by up to 60% compared to traditional connectors, cutting labor costs on large-scale deployments.
2. Dual Sealing Rings for Superior Protection
The QC16 uses a silicone O-ring and injection-molded cable seal to achieve IP67 and IP68 waterproof ratings. Your connections remain secure even when temporarily submerged (IP67: 30 minutes at 1m) or continuously exposed to heavy rain, dust storms, and high-pressure washdowns.
3. Accommodates Multiple Cable Gauges
The quick clamp design accepts cables from 3mm to 12mm in diameter. This flexibility means you can standardize on one connector type across various applications, reducing inventory complexity and procurement costs.
4. Pre-Molded Cable Design Reduces Errors
Each connector arrives with cable pre-installed and sealed at the factory. This eliminates field assembly errors, ensures consistent waterproof performance, and speeds up project completion. You get predictable, repeatable quality on every connection.
5. Customization for Specific Requirements

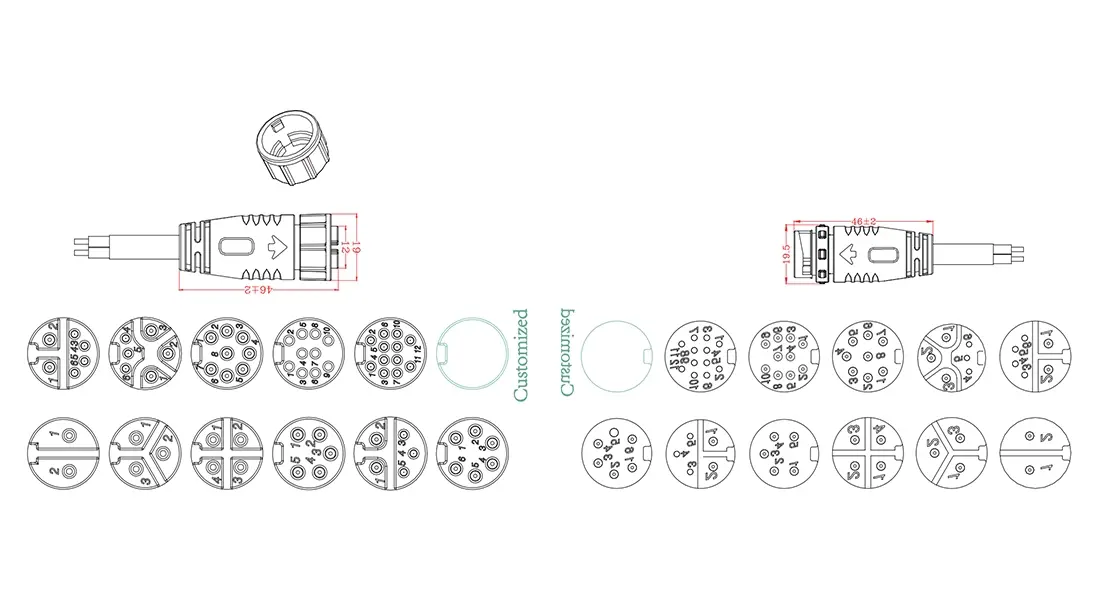

Need a specific cable length, wire gauge, or housing color? Cablein offers full customization including pin configuration (2P to 12P), overmold color coding for phase identification, and cable specifications to match your exact power or signal requirements.
Where You'll Use the QC16 Fast Lock Waterproof Connector
Outdoor LED & Infrastructure
Architectural lighting, stadium illumination, and digital signage systems rely on the QC16 for rapid daisy-chaining of power connections. The connector withstands heavy rain, UV radiation, and thermal cycling while maintaining stable electrical performance. Its quick-lock feature enables fast installations on elevated structures and tight spaces.
Precision Agriculture
Automated irrigation systems, soil moisture sensors, and precision farming equipment face exposure to chemical fertilizers, mud, and high-pressure cleaning. The QC16's IP68 rating and chemical-resistant materials ensure reliable operation season after season. The quick-disconnect feature simplifies equipment maintenance during harvest periods.
Industrial Automation & Robotics
In fabricating situations with high-frequency vibrations, the 'Fast Lock' component gives a secure, 'click-to-confirm' material criticism. Not at all like strung connectors that may release over time, the QC16 keeps up steady contact weight. This is basic in mechanized generation lines where association disappointment implies exorbitant downtime.
Renewable Energy Systems
Solar board clusters and wind turbine establishments advantage from the QC16's temperature resistance (-40℃ to 150℃) and UV-resistant lodging. The connector handles the warm extension and compression common in open air vitality frameworks whereas keeping up moo contact resistance for proficient control transmission.
Quality Control You Can Verify
Cablein implements a multi-stage testing protocol aligned with CE, RoHS, and ISO9001:2015 standards. Each QC16 Fast Lock Waterproof Connector undergoes:
IPX8 Drenching Testing: Confirms seal judgment at indicated profundities and terms to affirm waterproof execution beneath real-world conditions.
Salt Shower Testing: 48-96 hours of presentation guarantees gold-plating and lodging stand up to oxidative erosion in marine and coastal environments.
Dielectric Withstand Voltage Testing: Affirms no breakdown or flashover between contacts at appraised voltages, securing your hardware from electrical faults.
Tensile Quality Testing: Approves that coordinates strain alleviation withstands high-pull powers without breaking inside seals or harming cable conductors.
Thermal Stun Testing: Quick temperature cycling confirms PA66 fabric soundness and seal execution over the full working temperature range.
Every connector gets 100% assessment some time recently shipping, guaranteeing reliable quality and unwavering quality for your basic applications.
Frequently Asked Questions
Q: How does the QC16 'Fast Lock' component handle high-vibration environments?
A: The component employments a spring-loaded pike framework that gives mechanical interlock. Not at all like strung connectors, it cannot 'back out' due to vibration, guaranteeing steady contact weight all through operation.
Q: Can the QC16 connector be utilized in saltwater environments?
A: Yes, when the shell fabric is indicated for marine utilize and contacts are gold-plated to anticipate galvanic erosion. We suggest examining your particular application with our designing group for ideal fabric selection.
Q: What is the distinction between IP67 and IP68 adaptations of the QC16?
A: IP67 secures against brief submersion (30 minutes at 1 meter profundity), whereas the IP68 adaptation is custom-sealed for ceaseless submerged operation based on manufacturer-specified profundities and durations.
Q: Does the connector require extraordinary apparatuses for field assembly?
A: Most QC16 variations are planned for tool-less mating. The pre-molded cable plan kills field end for standard arrangements. Custom arrangements may require standard patching or screw-driver sets depending on terminal type.
Q: Is the PA66 fabric utilized in QC16 connectors UV-stabilized?
A: Yes. Professional-grade QC16 connectors utilize UV-stabilized nylon to avoid brittleness and breaking when uncovered to coordinate daylight for long-term open air installations.
Q: What customization alternatives are available?
A: We offer customization of cable length, wire gage (AWG), overmold color, stick arrangement (2P to 12P), and contact course of action to meet your correct determinations. Lead time for custom orders is regularly talked about amid the citation process.
Ready to Upgrade Your Connections?
Experience the reliability of industrial-grade waterproof connectivity. Contact nick@cableinco.com to request technical specifications, discuss your QC16 Fast Lock Waterproof Connector requirements, or inquire about samples.
