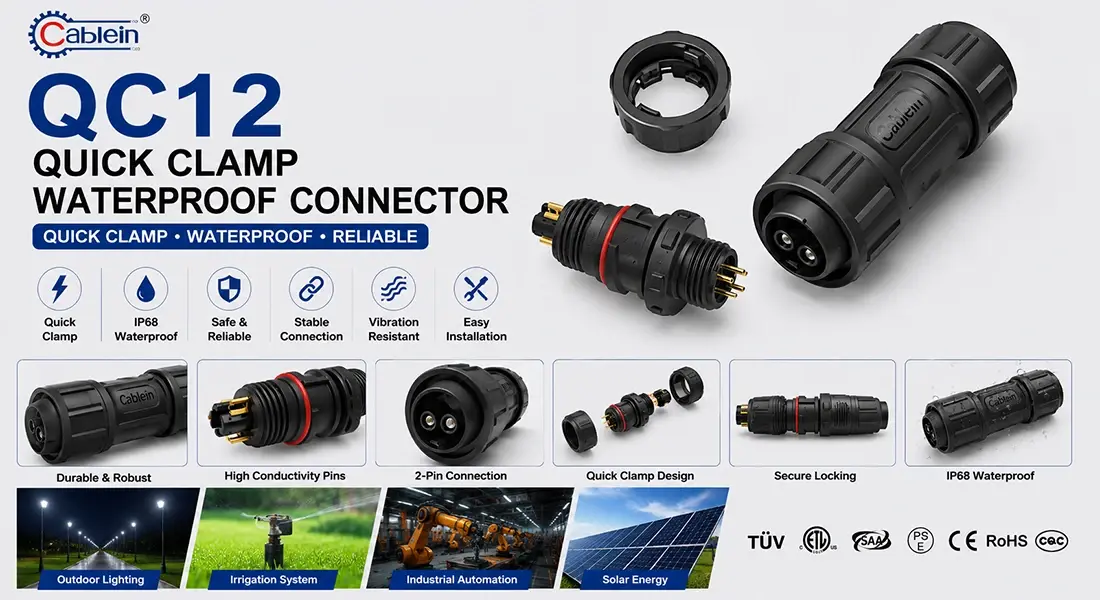

QC12 Quick Clamp Waterproof Connector
2. Available in IP67 and IP68 waterproof ratings for tool-free field installation.
3. Quarter-turn quick clamp mechanism locks the cable without special tools.
4. Commonly used in LED signage, outdoor displays, and compact sensor housings.
5. Screw termination allows quick wire attachment and easy cable replacement.
6. CE and RoHS certified, manufactured under ISO9001 quality management.
7. Tested for 500+ mating cycles to ensure long-term reliability.
8. Custom pin configurations, cable lengths, and pre-wired options available.
QC12 Quick Clamp Waterproof Connector: Fast Installation for Harsh Environments
When you need reliable outdoor connectivity without the hassle, the QC12 Quick Clamp Waterproof Connector delivers enterprise-grade performance with tool-free simplicity. Planned by Cablein Advancement, this field-assembled connector highlights a quarter-turn expedient clamp instrument that locks cables in seconds—no specialized disobedient required. Built with PA66 nylon lodging, gold-plated brass contacts, and silicone seals, it finishes IP68 waterproof security over a -40℃ to 105℃ working expand. Assessed at 60V DC/AC and 8A current capacity, it withstands 500+ mating cycles and meets CE and RoHS measures. With screw conclusion for 3-6.5mm cables and cover resistance outperforming 200MΩ, the QC12 combines speed, quality, and versatility for your most asking installations.
Why Choose the QC12 Quick Clamp Connector?
1. Lightning-Fast Installation
You do not require a tool stash to make a secure connection.
The fast clamp pike coupling locks with a halfway twist—significantly speedier than strung options. Field specialists can total wiring on-site in seconds, lessening labor costs and venture timelines. This is particularly profitable in high-volume establishments like Driven signage clusters and open air sensor networks.
2. IP68 Waterproof Protection
Your associations remain dry indeed when submerged.
Tested to IP68 benchmarks, this connector stands up to tidy entrance and transitory inundation. Dual-stage silicone seals keep dampness out in coastal situations, rooftop installations, and underground conduits. Whether you're wiring a wellspring show or a sun based cluster, you can believe long-term reliability.
3. Screw End Simplicity
No pleating devices. No patching irons.
The screw terminals acknowledge both strong and stranded wires from 3mm to 6.5mm breadth. This adaptability implies you can work with different cable sorts without connectors or uncommon connectors. On-site adjustments and cable substitutions ended up clear, indeed in farther locations.
4. Gold-Plated Contact Durability
Low contact resistance. Negligible corrosion.
Gold-plated brass contacts keep up electrical keenness through 500+ association cycles. This is basic in applications with visit support get to or regular establishments. The plating avoids oxidation in sticky climates and guarantees steady flag transmission in sensor applications.
5. Wide Temperature Tolerance
From ice winters to leave summers, execution remains consistent.
The PA66 lodging withstands -40℃ to 105℃ without brittleness or misshapening. This makes it reasonable for year-round open air use—whether in Nordic road lighting or Center Eastern building exteriors. Your associations won't come up short when temperatures swing.
Where You'll Use the QC12 Connector
Outdoor Driven Lighting Systems
Bridge exteriors, high rise brightening, and landmark lighting request vibration-resistant associations at stature. The fast clamp instrument avoids coincidental detachment from wind influence or warm development, whereas UV-stabilized materials stand up to a long time of sun exposure.
Industrial Robotization Networks
Smart manufacturing plants require fast reconfiguration as generation lines alter. The tool-free plan permits support groups to reroute sensor cables without closing down adjoining hardware. Resistance to mechanical oils and chemical washdowns makes it perfect for nourishment handling and pharmaceutical plants.
Marine and Renewable Energy
Yacht route frameworks and sun based PV clusters confront steady introduction to salt splash and dampness. The QC12's IP68 rating and corrosion-resistant materials (tried to ASTM B117 salt splash measures) guarantee dependable operation in coastal and seaward installations.
Agricultural and Natural Monitoring
Irrigation controllers and climate stations require associations that survive sloppy areas and high-pressure washdowns. The connector's fixed plan secures against soil defilement and overwhelming rain, whereas the fast clamp permits regular gear changes without specialized labor.
Technical Specifications at a Glance
| Parameter | Value |
|---|---|
| Rated Voltage | 60V DC/AC |
| Rated Current | 8A / 3A (8A+3A) |
| Insulation Resistance | ≥200MΩ @ 500V DC |
| Dielectric Strength | 1KV DC, 2mA, 60s |
| IP Rating | IP67 / IP68 |
| Operating Temperature | -40℃ to 105℃ |
| Cable Diameter | 3-6.5mm |
| Mating Cycles | 500+ |
| Materials | PA66 housing, gold-plated brass contacts, silicone seals |
| Certifications | CE, RoHS, ISO9001:2015 |
Rigorous Quality Assurance
Every QC12 Quick Clamp Waterproof Connector undergoes multi-tier testing before shipment:
- IPX8 Submersion: 72-hour underwater testing ensures seal integrity
- Electrical Validation: Contact resistance and insulation tests verify performance
- Salt Spray Testing: Simulates decades of coastal exposure
- Thermal Shock Cycles: Confirms material stability across temperature extremes
- Mechanical Strength: Tensile tests ensure the clamp mechanism resists accidental disconnection
This comprehensive protocol aligns with UL2238 safety standards and ISO9001:2015 quality management systems.
Frequently Asked Questions
Q: Can I introduce the item without tools?
A: Yes. The quarter-turn clamp component requires as it were hand weight. The screw terminals acknowledge wire without pleating instruments or fastening equipment.
Q: What cable sorts work with this connector?
A: It obliges strong or stranded wires from 3mm to 6.5mm in distance across. This incorporates most standard Driven and sensor cables utilized in open air installations.
Q: How do I know the connector is completely sealed?
A: The fast clamp gives material and capable of being heard criticism when appropriately locked in. Moreover, the silicone seal makes unmistakable compression around the cable passage point.
Q: Is the QC12 appropriate for submerged applications?
A: Yes, when legitimately introduced. The IP68 rating permits brief submersion (regularly 1 meter for expanded periods). For changeless submerged utilize, counsel our specialized group for specialized fixing options.
Q: Can I get custom stick configurations?
A: Completely. Cablein offers custom stick formats, pre-wired cable congregations, and custom-made cable lengths to coordinate your extend specifications.
Q: What's the normal conveyance time for standard models?
A: Standard QC12 connectors dispatch inside 7-10 days. Custom setups may require extra lead time depending on complexity.
Why Cablein Technology?
Since 2017, we've specialized in waterproof network arrangements for the world's hardest situations. Our 6,000㎡ office in Shenzhen produces over 10,000 units per thing in steady stock, guaranteeing you won't confront supply delays.
With 30+ utility demonstrate licenses and ISO9001:2015 certification, we convey advancement supported by unwavering quality. Our worldwide coordinations accomplices (UPS, DHL, FedEx) give cost-effective shipping to over 100 countries.
You'll moreover get 24-hour specialized back all through your project—from beginning detail to after-sales service.
Ready to Simplify Your Next Installation?

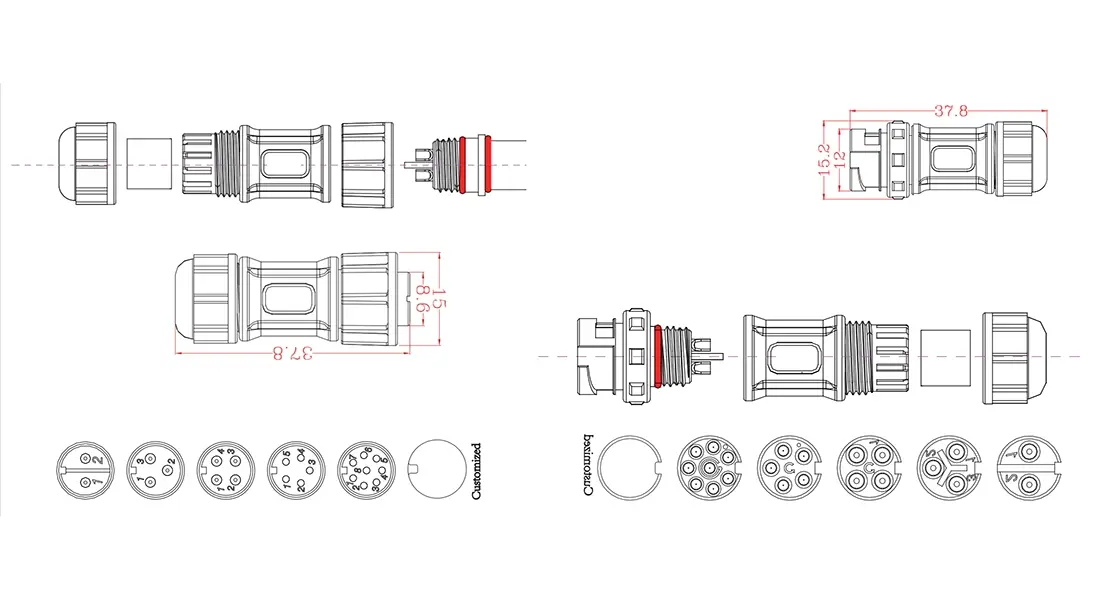

The QC12 Quick Clamp Waterproof Connector is available now with custom configurations to match your exact requirements. Whether you need samples for testing, detailed technical drawings, or project-specific modifications, our team is ready to assist.
Contact us today: nick@cableinco.com
