QC20 Quick Clamp Panel Mount Waterproof Connector
2. Offers IP67 and IP68 waterproof sealing for large equipment enclosure pass-through.
3. Front-mount design with rotatable rear clamp for adjustable cable exit direction.
4. Suited for large medical devices, marine electronics, and heavy industrial panels.

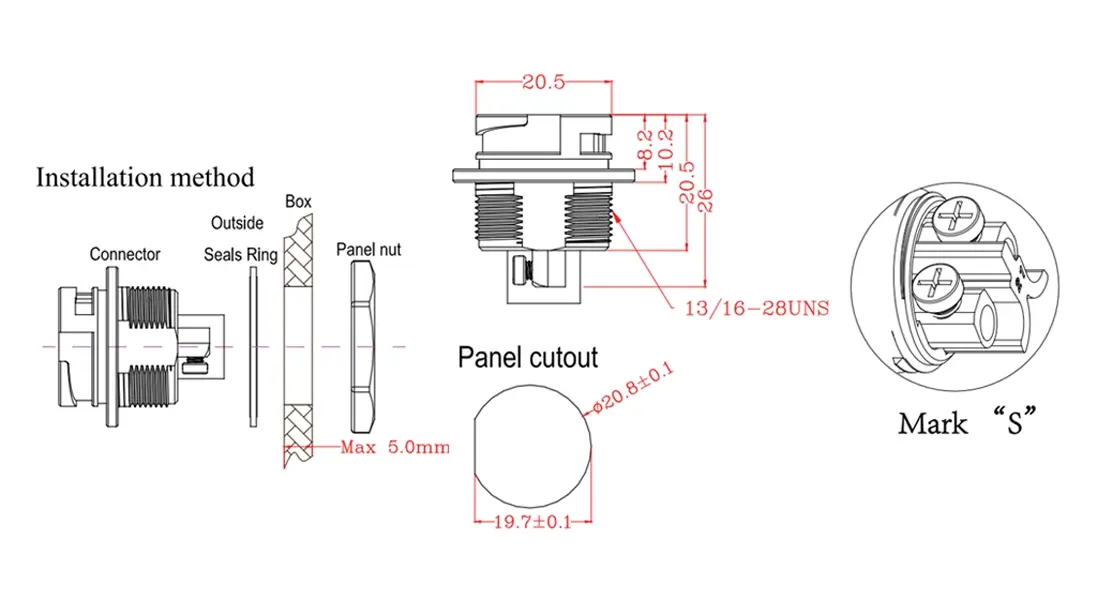

5. Standardized cutout simplifies panel design and reduces tooling investment.
6. TUV and ETL certified under ISO9001 and RoHS compliance.
7. Proven durability for long-term industrial use.
8. Custom pin count, flange shape, and pre-wired internal pigtails available.
QC20 Quick Clamp Panel Mount Waterproof Connector – Industrial-Grade Sealed Connection Solution
When your equipment faces outdoor exposure, washdown environments, or high-vibration conditions, the QC20 Quick Clamp Panel Mount Waterproof Connector delivers enterprise-level protection you can trust. Built by Cablein Innovation, this connector highlights a PA66 nylon lodging, gold-plated brass pins, and a silicone O-ring to accomplish IP67 and IP68 waterproof evaluations. Supporting 2 to 7 contacts with evaluated voltage up to 500V DC/AC and current up to 25A, it guarantees steady execution from -40℃ to 105℃. The front-mount plan with rotatable raise clamp permits flexible cable exit course, whereas the speedy clamp instrument disentangles establishment without strung couplings. TUV and ETL certified beneath ISO9001 and RoHS compliance, this connector meets the requests of marine hardware, therapeutic gadgets, and overwhelming mechanical panels.
What Is the QC20 Quick Clamp Panel Mount Waterproof Connector?
The QC20 Quick Clamp Panel Mount Waterproof Connector is a high-performance industrial interconnect solution designed for rapid deployment and high-reliability sealing in harsh environments.
It highlights a special push-lock instrument that dispenses with time-consuming strung couplings. This decreases establishment labor significantly.
Traditional connectors regularly endure from flag insecurity caused by mechanical vibration. They too confront dampness entrance in high-pressure washdown situations. The chance of over-tightening or cross-threading is common in routine circular connectors.
This panel-mount variation gives a secure, settled interface for hardware chassis. It guarantees a airtight seal—typically IP67 or IP68—between inner gadgets and outside elements.
You get solid security without the hassle.
Key Properties and Technical Specifications
Robust Material Composition
The shell is constructed from high-grade PA66 thermoplastic (UL94-V0) or corrosion-resistant zinc alloy with nickel plating.
Internally, gold-plated copper alloy contacts ensure minimal contact resistance—less than 5mΩ—and maximum signal integrity.
Performance Parameters
- Rated Current: 5A to 25A (depending on pin configuration)
- Rated Voltage: 250V to 500V
- Operating Temperature: -40°C to +105°C
- Dielectric Withstanding Voltage: DC 3KV, 2mA, 60s
- Insulation Resistance: ≥200MΩ at DC 500V
Waterproof Rating
The quick clamp interface guarantees an audible and tactile click upon successful engagement. This ensures an IP68 waterproof rating at 1 meter depth for 72 hours.
You know the connection is secure the moment you hear the click.
Core Advantages of the QC20 Quick Clamp Panel Mount Waterproof Connector
Heavy-Duty Panel Mount Design
The oversized flange distributes mounting stress evenly across enclosure walls. This prevents stress fractures in thin-walled panels.
Adjustable Cable Exit Direction
Front-mount configuration with rotatable rear clamp allows you to adjust cable exit direction before final locking. This flexibility simplifies routing in tight spaces.
High-Current Transmission
The quick clamp mechanism accepts large-gauge cables. It supports high-current transmission without voltage drop.
IP68 Protection
IP68 protection at the panel interface prevents moisture entry in outdoor or washdown environments. Your equipment stays safe even in heavy rain or submersion.
Corrosion-Resistant Materials
Housing materials withstand salt spray exposure and extreme temperature variations. This makes the connector ideal for marine and coastal applications.
OEM Customization
Customizable with pre-attached internal pigtails or specific pin configurations. You get exactly what your project needs.
Where Is the QC20 Quick Clamp Panel Mount Waterproof Connector Used?
Outdoor LED Displays and Architectural Lighting
It resists UV degradation and rainwater ingress while allowing fast modular maintenance. Lighting installers save time during repairs and upgrades.
Industrial Automation and Robotics
The vibration-resistant clamping mechanism prevents accidental disconnection in high-motion CNC or robotic arm applications. Your production line stays running.
Marine and Renewable Energy Systems
Used in solar inverters and shipboard sensors, it resists salt spray (ISO 9227) and high-humidity environments. Long-term operational stability means fewer maintenance cycles.
Quality Control You Can Trust
Cablein Technology implements a multi-stage testing protocol for every QC20 Quick Clamp Panel Mount Waterproof Connector.
Ingress Protection Testing
IPX8 testing verifies vacuum-sealed performance under water. Each unit undergoes rigorous submersion tests.
Mechanical Endurance Testing
The quick-clamp mechanism maintains integrity over 500+ mating cycles. You can connect and disconnect without worrying about wear.
Salt Spray Corrosion Testing
48-hour or 96-hour salt spray tests validate the durability of plating and housing. Coastal and marine environments pose no challenge.
Electrical Dielectric Withstand Voltage Testing
This prevents arc-over between pins. Your equipment stays safe from electrical faults.
Pull-Out Force Validation
The quick clamp lock withstands specified cable tension without disengaging. Accidental disconnection becomes a thing of the past.
Frequently Asked Questions
Q: Does the QC20 back EMI/RFI shielding?
A: Yes, metal-shell adaptations offer 360-degree protecting for high-interference mechanical environments.
Q: Can I utilize this connector in saltwater environments?
A: Yes, given you select the form with a salt-spray-resistant coating or high-grade polymer housing.
Q: What is the standard board set pattern estimate for a QC20?
A: The '20' as a rule signifies a 20mm mounting gap. Continuously allude to the particular datasheet for resilience requirements.
Q: Is the quick-clamp component secure against overwhelming vibration?
A: Completely. It meets IEC 60068-2-6 guidelines for vibration resistance, frequently beating strung connectors which can extricate over time.
Q: Are diverse stick arrangements available?
A: Yes, the QC20 arrangement ordinarily bolsters arrangements from 2-pin control formats to 12-pin multi-signal layouts.
Q: What certifications does this connector have?
A: TUV, ETL, CE, RoHS, and made beneath ISO9001:2015 quality administration systems.
Q: Can I arrange custom cable lengths or pre-wired pigtails?
A: Yes, Cablein offers OEM/ODM customization counting pre-attached inner ponytails and particular stick configurations.
Why Choose Cablein Technology?
9 Years of Industry Experience
Founded in 2017, Cablein has built a reputation for reliability and innovation. Our 6,000 ㎡ production facility and 200+ professional team members ensure consistent quality.
Over 30 Utility Model Patents
Our R&D team specializes in quick-connect, solder-free, and high-power waterproof solutions.
Fast Delivery and Stable Inventory
We maintain stable inventory of more than 10,000 pieces per item. Standard delivery takes 7–10 days.
Global Logistics Support
Through partnerships with UPS, DHL, FedEx, and professional freight forwarders, we provide efficient worldwide shipping.
24-Hour Technical Support
Our customer-centric service ensures smooth project execution from design to delivery.
Get Your QC20 Quick Clamp Panel Mount Waterproof Connector Today
Ready to upgrade your equipment with reliable waterproof connectivity? Contact us at nick@cableinco.com to request technical specifications, confirm details, or inquire about QC20 Quick Clamp Panel Mount Waterproof Connector samples and custom configurations.
