RJ45 Right Angle Waterproof Connector

RJ45 Right Angle Waterproof Connector – Industrial Ethernet Solution for Harsh Environments

When your equipment faces extreme weather, limited space, or demanding industrial conditions, you need more than a standard connector. The RJ45 Right Angle Waterproof Connector from Cablein Technology delivers enterprise-grade protection with a space-saving 90-degree design. Built with PA66 nylon lodging, gold-plated phosphor bronze contacts, and silicone fixing gaskets, this connector accomplishes IP67 and IP68 waterproof appraisals. It bolsters Cat5e transmission at 1000MHz, handles 20A evaluated current at 125V, and works dependably over -40℃ to 150℃. The right-angle board mount plan courses cables parallel to surfaces, sparing valuable walled in area profundity whereas keeping up secure, weatherproof information associations in open air broadcast communications, mechanical mechanization, and marine electronics.

What Is an RJ45 Right Angle Waterproof Connector?

An RJ45 Right Angle Waterproof Connector is a specialized Ethernet interconnect engineered for environments where moisture, dust, and tight spaces converge.

Unlike vertical connectors, this 90-degree arrangement diminishes mechanical strain on cables and PCBs interior shallow cabinets. You get low-profile cable administration without relinquishing flag quality.

The waterproof plan follows to IP67 or IP68 benchmarks. That implies your association remains fixed indeed when uncovered to rain, splash, or transitory submersion.

This component fathoms genuine issues: cable weakness in cramped control boards, flag misfortune from dampness entrance, and the challenge of keeping up fixed walled in areas whereas directing high-speed information outdoors.

Key Technical Properties That Ensure Reliability

Mechanical Integrity

Your connector must withstand a long time of UV introduction and chemical contact. Cablein's lodging employments UV-stabilized PA66 nylon that stands up to splitting and corruption in daylight, oils, and mechanical solvents.

Contact Performance

Gold-plated phosphor bronze contacts keep up contact resistance underneath 20mΩ. This moo resistance minimizes flag misfortune, guaranteeing steady execution over Cat5e, Cat6, and Cat6a frequencies.

Environmental Sealing

Integrated silicone O-rings and gaskets convey IP68 security. The board seal avoids dampness entrance at the mounting gap, indeed amid drawn out open air exposure.

Locking Mechanisms

A strung coupling with locknut gives vibration-proof obsession to boards of shifting thicknesses. No extra equipment required—just torque to spec and you're secured.

Data Integrity

Shielded development offers predominant EMI/RFI assurance. In electrically loud plant floors or close high-power gear, your arrange keeps up high-speed throughput without interference.

Where You'll Use RJ45 Right Angle Waterproof Connectors

Outdoor Telecommunications & 5G Small Cells

Compact base-station enclosures demand low-profile cable exits. The 90-degree design keeps your housing sleek while protecting network backhaul from rain and UV damage.

Industrial Automation & Robotics

Manufacturing control panels often sit close to walls. This connector routes Ethernet parallel to surfaces, avoiding tight bends that exceed cable minimum radius. Result? Constant uptime despite vibration and limited clearance.

Marine & Maritime Electronics

Shipboard navigation systems and sonar equipment face salt spray and deck-level moisture. The connector's IP68 sealing and corrosion-resistant plating safeguard critical data links in harsh marine conditions.

Energy Storage & Solar Installations

Outdoor inverters and battery management systems need reliable monitoring networks. These connectors ensure your data flows uninterrupted, even in desert heat or coastal humidity.

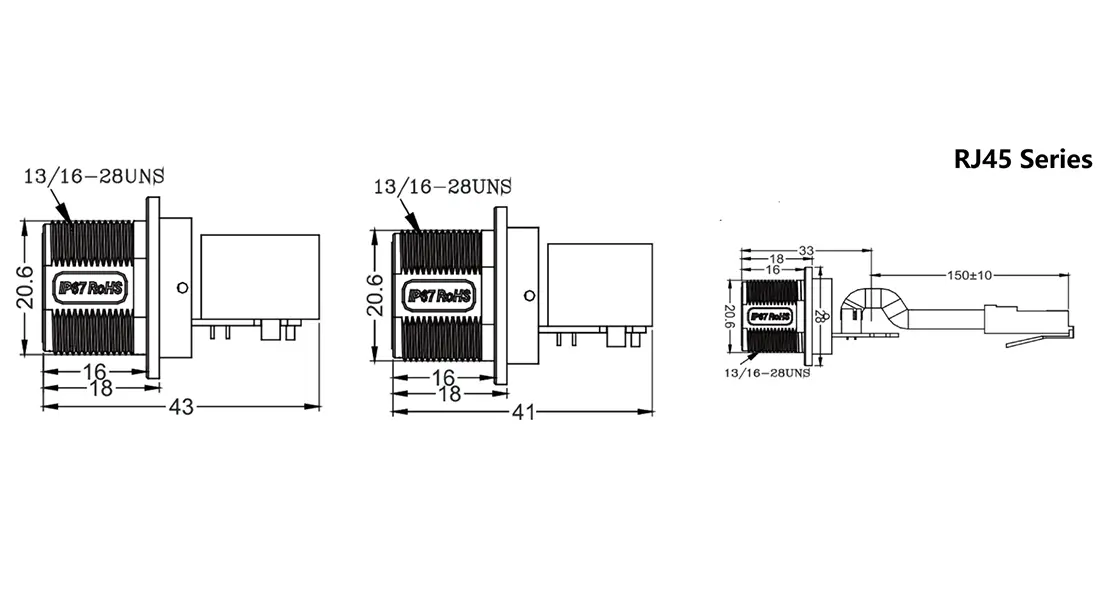

Technical Specifications at a Glance

Six Advantages That Set This Connector Apart

1. Space-Saving Right-Angle Design

Routes cables parallel to mounting surfaces, liberating up profundity in shallow walled in areas and tight cabinets.

2. Double IP67/IP68 Board Seal

Silicone gasket avoids dampness entrance at the board set pattern, keeping your walled in area fixed in rain, splash, or submersion.

3. Secure Strung Coupling

Locknut gives vibration-proof obsession without additional brackets, supporting boards of different thicknesses.

4. Protected Flag Integrity

Gold-plated contacts and protected development keep up Cat5e/Cat6 execution in electrically loud mechanical settings.

5. Extraordinary Temperature Range

Operates dependably from -40℃ solidifying open air destinations to 150℃ high-heat mechanical zones.

6. Standard RJ45 Compatibility

Works with off-the-shelf fix strings, empowering speedy field substitution without reterminating cables.

Rigorous Quality Control You Can Trust

Cablein's ISO9001:2015-certified facility enforces strict testing protocols to ensure long-term reliability:

• IP Testing: Water immersion at 1 meter for 30 minutes validates IP67/IP68 ratings.
• Salt Spray (ASTM B117): 48–96 hours of exposure confirms corrosion resistance.
• Mechanical Cycle Testing: Over 750 mating cycles verify connector durability.
• Fluke Link Testing: Ensures right-angle geometry meets TIA/EIA-568-C.2 for NEXT and Return Loss.
• Thermal Shock & Vibration: Validates locking mechanism integrity from -40°C to +105°C under industrial vibration.

Every connector undergoes 100% inspection before shipment, so you receive a product ready for harsh-environment deployment.

Frequently Asked Questions

Q1: Does the 90-degree twist influence Cat6a flag speeds?

A: No. Professional-grade connectors utilize compensated PCB follows and optimized stick formats to keep up flag keenness up to 500MHz, assembly Cat6a specifications.

Q2: What's the contrast between IP67 and IP68?

A: IP67 secures against transitory inundation (up to 30 minutes at 1 meter). IP68 means nonstop submersion at more noteworthy profundities, as indicated by the manufacturer.

Q3: Can I field-assemble these connectors?

A: Yes. Numerous models highlight field-terminable plans (IDC or tool-less), permitting specialists to introduce them on-site without plant overmolding equipment.

Q4: Is the lodging UV resistant?

A: Absolutely. Cablein employments UV-stabilized PA66 nylon to anticipate splitting or brittleness beneath delayed daylight exposure.

Q5: How do I guarantee a appropriate seal amid installation?

A: Follow the indicated torque settings for the fixing nut. Guarantee the board gasket sits flush and is free of flotsam and jetsam some time recently last tightening.

Why Choose Cablein Technology?

Since 2017, Cablein has specialized in mechanical waterproof connectors from our 6,000㎡ Shenzhen office. Our group of over 200 experts coordinating R&D, exactness fabricating, and worldwide logistics.

• Certifications: CE, RoHS, ETL, TUV, ISO9001:2015
• Inventory: Over 10,000 pieces per item for fast delivery (7–10 days standard)
• Custom Solutions: OEM/ODM support, private mold development, and pre-assembled harnesses
• Global Shipping: Partnerships with UPS, DHL, FedEx for efficient air and sea freight

We hold over 30 utility demonstrate licenses and serve more than 100 nations over Driven lighting, renewable vitality, mechanical computerization, marine frameworks, and beyond.

Ready to Secure Your Network Connection?

Contact us today at nick@cableinco.com to request technical specifications, discuss custom cable lengths, or RJ45 Right Angle Waterproof Connector samples for testing. Bookmark this page for future reference and let Cablein keep your connections reliable—wherever you are.
