IP67 M12 Waterproof Circular Connector Threaded Butt Type 2 Pin Circular Connector
All Category

Waterproof Circular Connector

Waterproof Male Female Connector

Waterproof Power Connector

Waterproof Cable Connector

Waterproof Signal Connector

Waterproof Data Connector

RJ45 Waterproof Connector

Waterproof Panel Mount Connector

Waterproof LED Connectors

Power Plug
Contact Us
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contact Now
IP67 M12 Waterproof Circular Connector Threaded Butt Type 2 Pin Circular Connector
  • name
  • name
  • name
  • name

IP67 M12 Waterproof Circular Connector Threaded Butt Type 2 Pin Circular Connector

Brand Name: Cablein
Model Number: CB-M12-MDF01-2P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T, Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
M12 Threaded Butt Type Waterproof Connector
Metal:
Gilded Brass
Material:
PA6 Nylon
Insertion Life:
1000 Times
Voltage:
100V
Waterproof:
IP67
Highlight:

IP67 Waterproof Circular Connector

,

Waterproof Circular Connector 2 Pin

,

Waterproof 2 Pin Circular Connector

Product Description

M12 Threaded Butt Type waterproof connectors is in common use for led street lighting,Livestock industry, poultry industry area. Its the CSA starndard connectors in China.Popular to all the lighting application, this thread butt connectors could support IP67 outdoor using, no matter for dimming lights, landscape lighting or floor lighting,even its is widely used in many others underwater tight request application.





M12 Threaded Butt Type Waterproof Circular Connector Details



Pin: 2Pin Male Femal Connector               Current Rating(A): 8A Max



Material:PA6 Nylon                                    Conenction Way: Threaded Butt Type



Operating Voltage: 100V                          Assembly Wire: Soldering or screw fitting



Out Door UV Resistance: Pass               Cable Jacket OD: 4-8 mm²



M12 threaded butt type female connector plug datasheet

 Voltage Rating    100V AC Max
 Current Rating     8A
 Molding Cable Diameter     4-8mm²
 DC 2mA60S Insulation voltage     3KV
 DC500V Insulation resistance     200MΩ
 Operating Temperature     -40℃-105℃
 IP Class     IP67
 Contact/Terminal Material     Gold Plated Brass
 Seal Material     Silicone

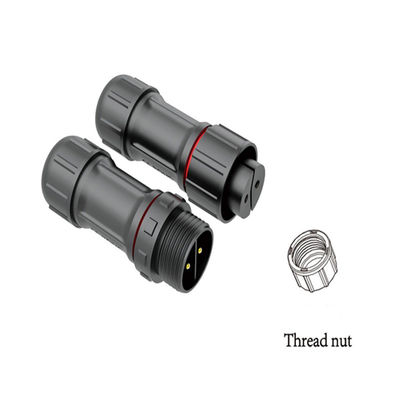

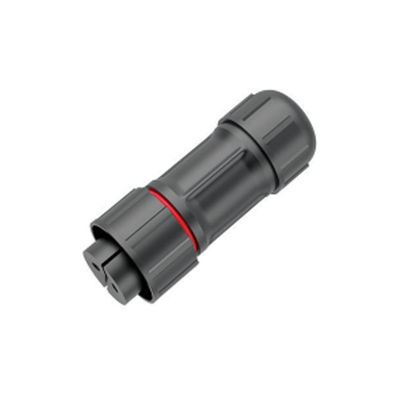

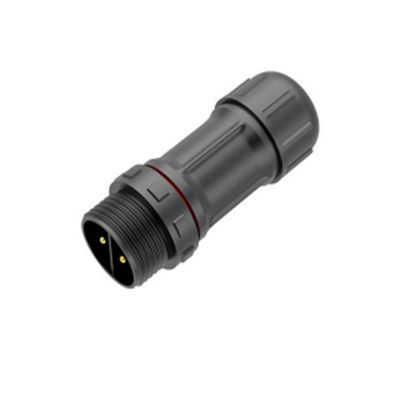

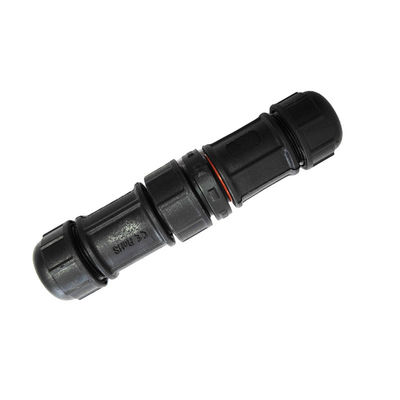

M12 threaded butt type female connector plug material details.

IP67 M12 Waterproof Circular Connector Threaded Butt Type 2 Pin Circular Connector 0

IP67 M12 Waterproof Circular Connector Threaded Butt Type 2 Pin Circular Connector 1

M12 threaded butt type female connector plug Drawing

IP67 M12 Waterproof Circular Connector Threaded Butt Type 2 Pin Circular Connector 2

FAQ





1. Q: What type waterproof connectors do you have?
A: We have All series type waterproof connectors, Many types are our private mold, some of our connectors are customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector,Livestock industry, poultry industry waterproof connector, New Energy Waterproof Connector, Solar System waterproof connector...



2. Q: How to buy your products?
A: Contact With Our Sales Team online or By email



* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way


3. Q: How to contact with you?


A: Please give us email or Phone number,skype or whatsapp ID if possible, we have worked for this industry more than 8 years,we have Professional sales and R&D team , we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.





4. Q: Can i get samples?



A: It's my honor for us to offer you samples,you just need pay freight cost.You can let me know your courier number and your detail address,Then I can send you sample at once.









Tags:

Water Resistant Circular Connector

Male And Female Connectors

Circular Cable Connectors
