3 Pin 8A Current Rating M12 Threaded Butt Type Waterproof Circular Connector with PA6 Nylon Material IP67 Rated
All Category

Waterproof Circular Connector

Waterproof Male Female Connector

Waterproof Power Connector

Waterproof Cable Connector

Waterproof Signal Connector

Waterproof Data Connector

RJ45 Waterproof Connector

Waterproof Panel Mount Connector

Waterproof LED Connectors

Power Plug
Contact Us
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contact Now

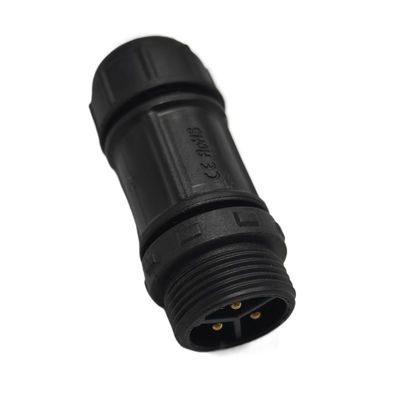

3 Pin 8A Current Rating M12 Threaded Butt Type Waterproof Circular Connector with PA6 Nylon Material IP67 Rated
  • name
  • name
  • name
  • name

3 Pin 8A Current Rating M12 Threaded Butt Type Waterproof Circular Connector with PA6 Nylon Material IP67 Rated

Brand Name: Cablein
Model Number: CB-M12-FDM01-3P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
3Pin Ip67 M12 Threaded Butt Type Waterproof Circular Connector
Metal:
Gilded Brass
Material:
PA6 Nylon
Insertion Life:
1000 Times
Voltage:
100V
Waterproof:
IP67
Highlight:

M12 Waterproof Circular Connector

,

Waterproof Circular Connector 8A

,

Waterproof IP67 Connector 3 Pin

Product Description
M12 Threaded Butt Type Waterproof Circular Connector 8A IP67 3 Pin
M12 Threaded Butt Type waterproof connectors are commonly used for LED street lighting, livestock industry, and poultry industry applications. These CSA standard connectors in China are popular for all lighting applications. This thread butt connector supports IP67 outdoor use for dimming lights, landscape lighting, floor lighting, and many other applications requiring underwater tightness.
Product Specifications
Pin Configuration: 3Pin Male Female Connector
Current Rating: 8A Max
Material: PA6 Nylon
Connection Type: Threaded Butt Type
Operating Voltage: 100V
Assembly Method: Soldering or screw fitting
UV Resistance: Pass
Cable Jacket OD: 4-8 mm²
Technical Datasheet
Pins Number 2Pins 3Pins 4Pins 5Pins 2+3Pins 6Pins 8Pins
Rated Voltage 100V 100V 80V 80V 80V 80V 80V
Rated Current 8A 8A 8A 8A 8A+3A 3A 3A
Insulation Voltage 3KV 3KV 1KV 1KV 1KV 1KV 1KV
DC 500V Insulation Resistance 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ
IP Code IP67 IP67 IP67 IP67 IP67 IP67 IP67
Cable Specifications ≤1mm² ≤1mm² ≤1mm² ≤1mm² ≤1mm² ≤1mm² ≤1mm²
Assembly Cable Diameter 4-8mm² 4-8mm² 4-8mm² 4-8mm² 4-8mm² 4-8mm² 4-8mm²
Product Advantages
Waterproof, moisture-proof, rainproof, sunscreen, anti-corrosion
Flame retardant, antioxidant, environmental protection (all products are from green production)
Improves working process: connectors simplify the assembly process of electronic products
Easy maintenance: when there is a failure, no need to pinch off the cable, electroplastic sleeve, etc., only need to unscrew the two ends of the waterproof connector, which is very convenient for the maintenance of LED, solar, geothermal and other waterproof products
3 Pin 8A Current Rating M12 Threaded Butt Type Waterproof Circular Connector with PA6 Nylon Material IP67 Rated 0
Technical Drawing
3 Pin 8A Current Rating M12 Threaded Butt Type Waterproof Circular Connector with PA6 Nylon Material IP67 Rated 1
Frequently Asked Questions
What type waterproof connectors do you have?
We have all series type waterproof connectors. Many types are our private mold, some of our connectors are customized. We focus on LED Waterproof connector, Assembly waterproof connector, Over-mold waterproof connector, T waterproof connector, Y customized waterproof connector, Livestock industry, poultry industry waterproof connector, New Energy Waterproof Connector, Solar System waterproof connector...
How to buy your products?
Contact With Our Sales Team online or By email. Confirm Current Rating and Number of Contacts, Confirm Assembly style, Confirm Cable Wire gauge, Confirm Cable Length and shipping way.
How to contact with you?
Please give us email or Phone number, Skype or WhatsApp ID if possible. We have worked for this industry more than 8 years, we have Professional sales and R&D team, we can catch your problem and solve it in a short time. If you have any question please feel free to let us know.
Can I get samples?
It's our honor to offer you samples. You just need to pay freight cost. You can let me know your courier number and your detail address, then I can send you sample at once.
Tags:
