IP67 PA6 Nylon Waterproof Circular Connector M12 100VAC Industrial Threaded Type

Brand Name:	Cablein
Model Number:	CB-M12-FFM01-2P-X
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Name:

PA6 IP67 Waterproof Industrial Circular Connectors M12 100VAC Treaded Type

Metal:

Gilded Brass

Material:

PA6 Nylon

Insertion Life:

1000 Times

Voltage:

Waterproof:

Highlight:

IP67 Industrial Circular Connectors

Industrial Circular Connectors 100VAC

PA6 M12 Waterproof Connector

Product Description

PA6 IP67 Industrial Circular Connectors

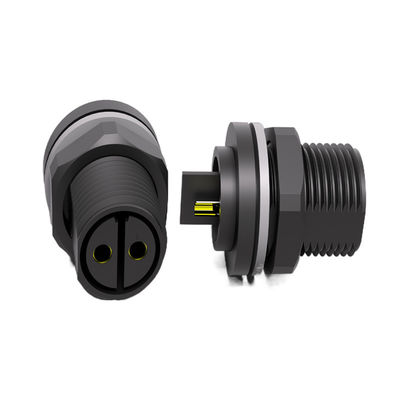

M12 100VAC Threaded Type Waterproof Connector with 2-pin male/female configuration

Product Specifications

Pin Configuration: 2 Pin Male/Female

Current Rating: 8A Max

Material: PA6 Nylon

Connection Type: Threaded Panel Mount

Operating Voltage: 100V

Wire Assembly: Soldering or Screw Fitting

UV Resistance: Outdoor Rated

Cable Jacket OD: 4-8 mm²

Technical Specifications

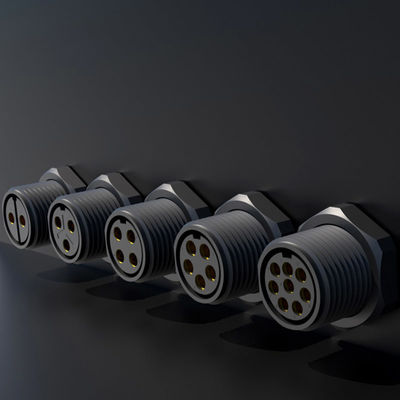

Parameter	2Pins	3Pins	4Pins	2+3Pins	6Pins	8Pins
Rated Voltage	100V	100V	80V	80V	80V	80V
Rated Current	8A	8A	8A	8A+3A	3A	3A
Insulation Voltage	3KV	3KV	1KV	1KV	1KV	1KV
DC 500V Insulation Resistance	200MΩ	200MΩ	200MΩ	200MΩ	200MΩ	200MΩ
IP Rating	IP67	IP67	IP67	IP67	IP67	IP67
Cable Specifications	≤1mm²	≤1mm²	≤1mm²	≤1+0.3mm²	≤0.2mm²	≤0.2mm²

Key Advantages

Waterproof, moisture-proof, rainproof, sunscreen, and anti-corrosion protection
Flame retardant, antioxidant, and environmentally friendly (green production)
Simplifies electronic product assembly processes
Easy maintenance - no need to cut cables; simply unscrew connector ends for LED, solar, geothermal, and other waterproof product maintenance

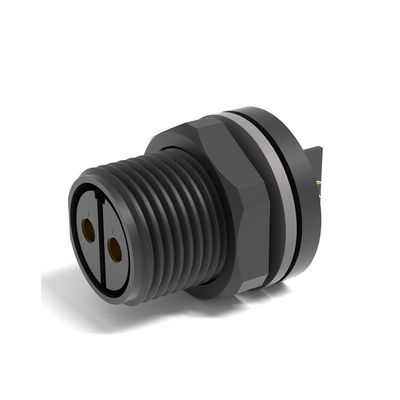

M12 Threaded Panel Mount Female Connector Plug

Frequently Asked Questions

What type of waterproof connectors do you have?

We offer all series types of waterproof connectors, including private mold designs and custom solutions. Our product range includes LED waterproof connectors, assembly waterproof connectors, over-mold waterproof connectors, T-connectors, Y-customized connectors, livestock/poultry industry connectors, and new energy/solar system waterproof connectors.

How to buy your products?

Contact our sales team online or by email. Please provide: current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.

How to contact you?

Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D team can quickly understand and solve your technical requirements.

Can I get samples?

Yes, we provide samples with freight cost only. Please provide your courier account number and detailed shipping address for immediate sample dispatch.
