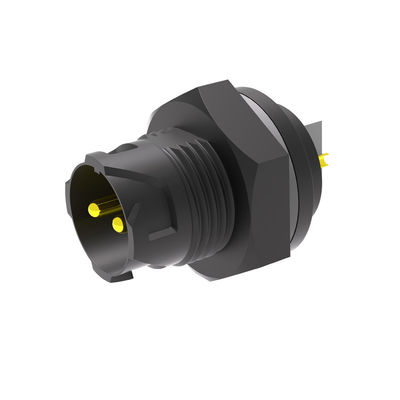

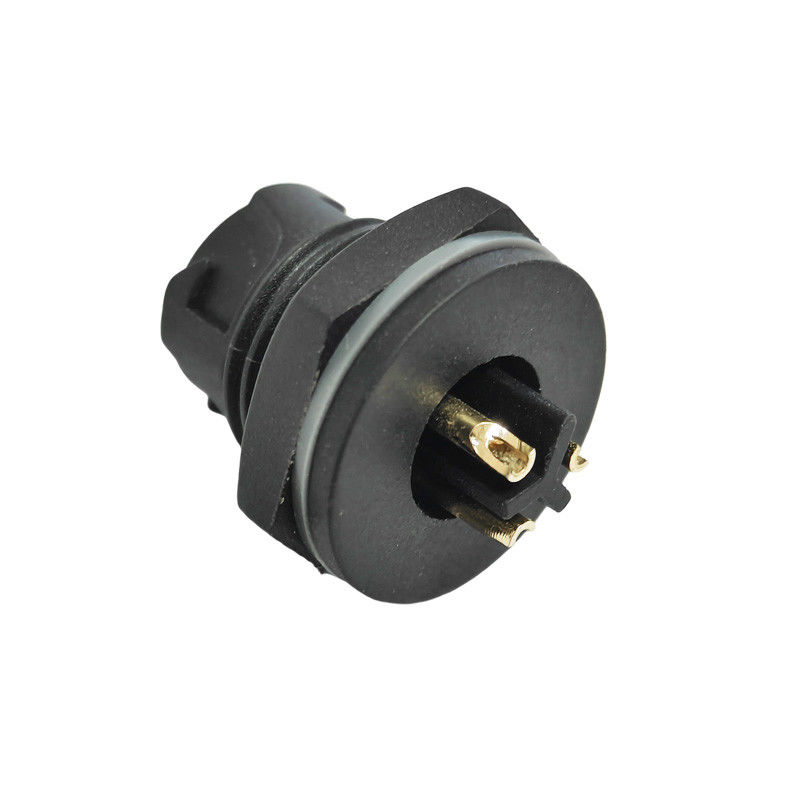

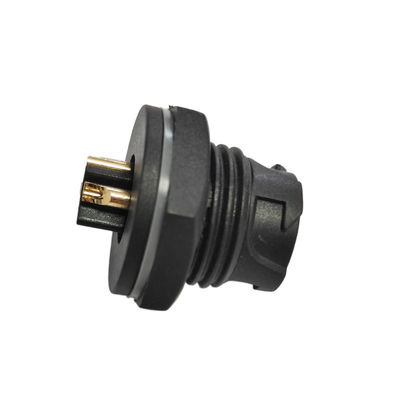

IP67 250V Self-Locking Industrial Circular Waterproof Connector with PA6 Nylon Housing
  • name
  • name
  • name
  • name

IP67 250V Self-Locking Industrial Circular Waterproof Connector with PA6 Nylon Housing

Brand Name: Cablein
Model Number: CB-P12-FFM01-3P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
IP67 P12 Self-Locking Industrial Circular Waterproof Connector
Metal:
Gilded Brass
Material:
PA6 Nylon
Insertion Life:
1000 Times
Voltage:
250V
Waterproof:
IP67
Highlight:

Industrial Circular Waterproof Connector

,

Circular Waterproof Connector 250V

,

Ip67 Waterproof Connector P12

Product Description
Industrial IP67 Circular Waterproof Connector 250V P12 Self Locking
Product Specifications
Pin Configuration: 2/3/4/5/2+4/6/8 Pin Male/Female Connector
Current Rating: 8A Maximum
Material: PA6 Nylon
Connection Method: Threaded Panel Type
Operating Voltage: 100V
Assembly Wire: Screw folding or Self Locking
Cable Jacket OD: 4-8 mm²
UV Resistance: Outdoor Certified
Technical Specifications
Pins Number 2Pins 3Pins 4Pins 2+3Pins 5Pins 6Pins 8Pins
Rated Voltage 100V 100V 80V 80V 220V 80V 80V
Rated Current 8A 8A 8A 8A+3A 5A 3A 3A
Insulation Voltage 3KV 3KV 1KV 1KV 1KV 1KV 1KV
DC 500V Insulation Resistance 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ
IP Code IP67 IP67 IP67 IP67 IP67 IP67 IP67
Cable Specifications ≤1mm² ≤1mm² ≤1mm² ≤1+0.3mm² 0.5mm² ≤0.2mm² ≤0.2mm²
IP67 250V Self-Locking Industrial Circular Waterproof Connector with PA6 Nylon Housing 0
Product Advantages
  • Comprehensive environmental protection: Waterproof, moisture-proof, rainproof, UV resistant, and anti-corrosion
  • High-performance materials: Flame retardant, antioxidant, and environmentally friendly (all products from green production)
  • Process optimization: Simplifies electronic product assembly procedures
  • Easy maintenance: Quick disconnect design eliminates need for cable cutting or sleeve replacement - ideal for LED, solar, geothermal, and other waterproof applications
Product Diagram
IP67 250V Self-Locking Industrial Circular Waterproof Connector with PA6 Nylon Housing 1
Frequently Asked Questions
What types of waterproof connectors do you offer?
We provide a comprehensive range of waterproof connectors including LED waterproof connectors, assembly waterproof connectors, over-mold waterproof connectors, T-connectors, Y-customized connectors, livestock industry connectors, poultry industry connectors, new energy connectors, and solar system connectors. Many are proprietary designs with custom molding capabilities.
How do I purchase your products?
Contact our sales team online or by email. Please provide: current rating and number of contacts required, assembly style preference, cable wire gauge specifications, cable length requirements, and preferred shipping method.
How can I contact you?
Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D teams can quickly understand your requirements and provide effective solutions.
Can I request samples?
Yes, we're pleased to provide samples. Customers only need to cover freight costs. Please provide your courier account number and detailed shipping address for immediate sample dispatch.
Tags:

Water Resistant Circular Connector

Male And Female Connectors

Circular Cable Connectors

Good price online
