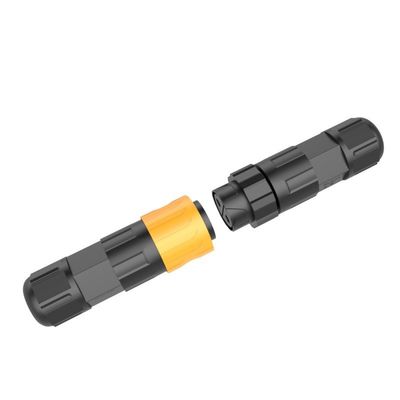

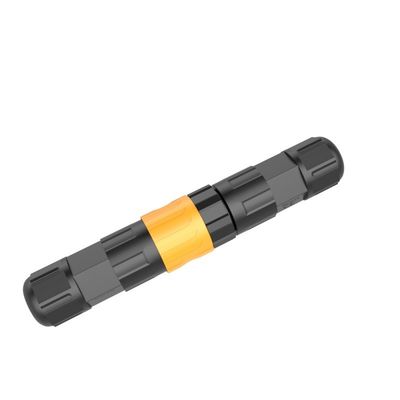

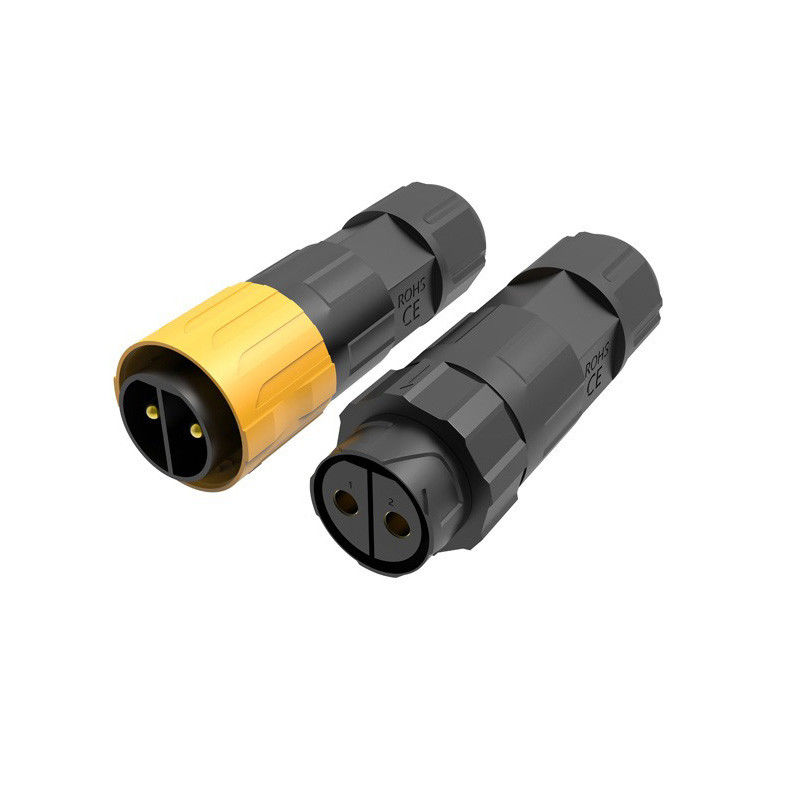

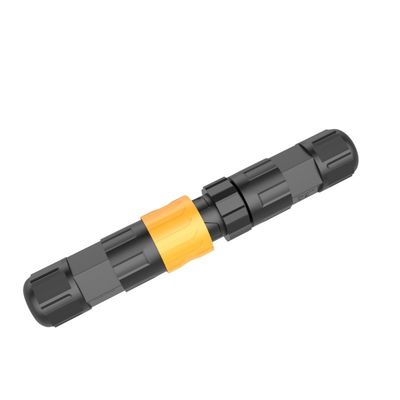

PA6 Nylon 500V Self-Locking Butt Type Waterproof Circular Connector IP67 P16

Brand Name: Cablein
Model Number: CB-P16-MDF01-4P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
M16 IP67 500V Threaded Butt Type Waterproof Circular Connector
Metal:
Gilded Brass
Material:
PA6 Nylon
Insertion Life:
1000 Times
Voltage:
500V
Waterproof:
IP67
Highlight:

PA6 Nylon Waterproof Circular Connector

,

Waterproof Circular Connector 500V

,

P16 IP67 Circular Connectors

Product Description
PA6 Nylon Waterproof Circular Connector 500V P16 Type IP67
Product Overview
Pin Configuration: 4 Pin Male/Female Connector
Current Rating: 15A Maximum
Material: PA6 Nylon
Connection Type: Self-locking butt type
Operating Voltage: 500V
Assembly Method: Soldering or screw fitting
Outdoor UV Resistance: Certified
Cable Jacket OD: 4.5-9.2 mm²
Technical Specifications
Parameter 2 Pins 3 Pins 4 Pins 8 Pins
Rated Voltage 500V 500V 500V 100V
Rated Current 15A 15A 15A 5A
Insulation Voltage 3KV 3KV 1KV 1KV
DC 500V Insulation Resistance 500MΩ 500MΩ 500MΩ 500MΩ
IP Code IP67 IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.5mm² ≤1.5mm²
Assembly Cable Diameter 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm
Key Advantages
The P16 IP67 500V Self-Locking Butt Waterproof Circular Connector is engineered to withstand harsh environmental conditions, making it ideal for various applications. This connector features waterproof protection that ensures reliable performance even in rainy and dusty environments. The self-locking mechanism provides secure connections, reducing the risk of accidental disconnections. With a 500V rating, it can handle demanding electrical loads, making it suitable for power transmission in challenging settings. Its durability and superior protection make it a trusted choice for enhancing operational efficiency and reliability.
Application Industries
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery
PA6 Nylon 500V Self-Locking Butt Type Waterproof Circular Connector IP67 P16 0
Technical Drawing
PA6 Nylon 500V Self-Locking Butt Type Waterproof Circular Connector IP67 P16 1
Frequently Asked Questions
How to buy your products?
Contact our sales team online or by email. Please provide the following information:
  • Current Rating and Number of Contacts
  • Assembly Style
  • Cable Wire Gauge
  • Cable Length and Shipping Method
Can I get samples?
Yes, we can provide samples. You only need to pay the freight cost. Please provide your courier account number and detailed address, and we will send the sample immediately.
