Self-Locking 500V PA6 Nylon Waterproof Circular Connector IP67 Rated for Secure Outdoor Connections
All Category

Waterproof Circular Connector

Waterproof Male Female Connector

Waterproof Power Connector

Waterproof Cable Connector

Waterproof Signal Connector

Waterproof Data Connector

RJ45 Waterproof Connector

Waterproof Panel Mount Connector

Waterproof LED Connectors

Power Plug
Contact Us
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contact Now
name
  • name
  • name
  • name

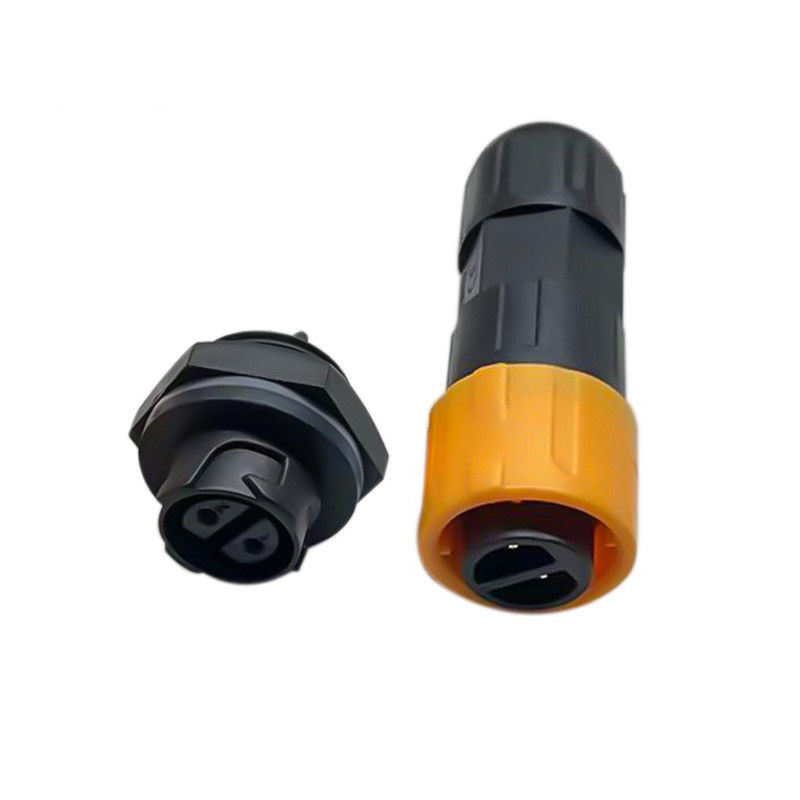

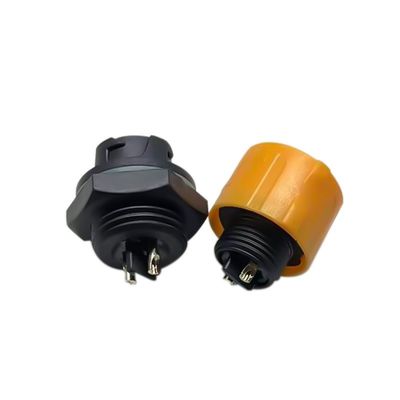

Self-Locking 500V PA6 Nylon Waterproof Circular Connector IP67 Rated for Secure Outdoor Connections

Brand Name: Cablein
Model Number: CB-M16-MDF01-3P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
Self-Locking P16 Rear Panel Assembled Male Head 2 Core Male Female Butt IP67 Circular Connector
Metal:
Gilded Brass
Material:
PA6 Nylon
Insertion Life:
1000 Times
Voltage:
500V
Waterproof:
IP67
Highlight:

Self Locking Waterproof Circular Connector

,

P16 Waterproof Circular Connector

,

IP67 Male Female Connector

Product Description
Self Locking P16 Waterproof Circular Connector
IP67 rated male and female butt connector with self-locking mechanism for secure outdoor and industrial applications.
Product Specifications
Pin Configuration: 3 Pin Male/Female
Current Rating: 15A Max
Material: PA6 Nylon
Connection Type: Self-locking butt
Operating Voltage: 500V
Wire Assembly: Soldering or screw fitting
UV Resistance: Outdoor rated
Cable Diameter: 4.5-9.2 mm²
Technical Data Sheet
Parameter 2 Pins 3 Pins 4 Pins 8 Pins
Rated Voltage 500V 500V 500V 100V
Rated Current 15A 15A 15A 5A
Insulation Voltage 3KV 3KV 1KV 1KV
Insulation Resistance 500MΩ 500MΩ 500MΩ 500MΩ
IP Rating IP67 IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.5mm² ≤1.5mm²
Cable Diameter 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm
Key Advantages
  • Easy plug-and-play assembly with secure self-locking mechanism
  • IP67 waterproof rating protects against water, dust, and harsh elements
  • Multiple waterproofing levels with o-rings, sealant, and flexible end seals
  • Quick disconnect by unscrewing main body and pulling apart ends
  • Secure and stable connection reduces risk of accidental disconnections
  • Simplified male and female butt design for easy installation
  • Sleek circular shape with compact design
Application Industries
  • Communications Equipment
  • Product Coding Machines & Inkjet Systems
  • Solar Power Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory & Forensic Equipment
  • Heavy Machinery
  • Outdoor LED Displays & Lighting
  • Marine Applications (Cruise Ships)
  • Infrastructure (Tunnel Lights, Street Lights)
Product Images
Self-Locking 500V PA6 Nylon Waterproof Circular Connector IP67 Rated for Secure Outdoor Connections 0 Self-Locking 500V PA6 Nylon Waterproof Circular Connector IP67 Rated for Secure Outdoor Connections 1
Technical Drawing
Self-Locking 500V PA6 Nylon Waterproof Circular Connector IP67 Rated for Secure Outdoor Connections 2
Frequently Asked Questions
How to buy your products?
Contact our sales team online or by email. Please provide:
  • Current rating and number of contacts required
  • Assembly style preference
  • Cable wire gauge specifications
  • Cable length and shipping method
Can I get samples?
Yes, we provide samples. You only need to pay the freight cost. Please provide your courier account number and detailed shipping address, and we will dispatch the sample immediately.
