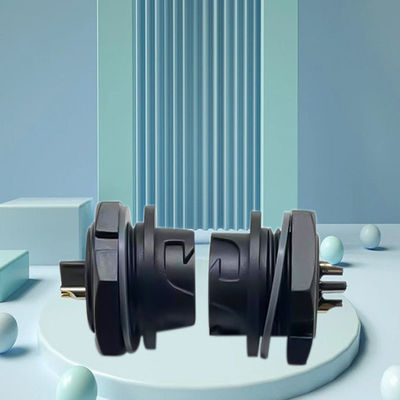

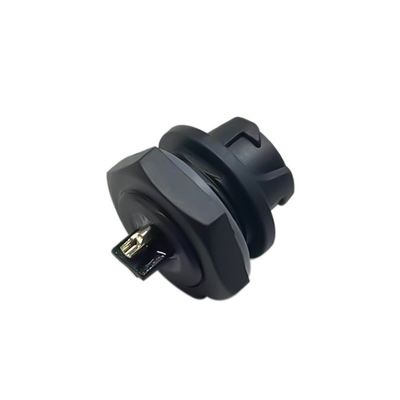

500V IP67 Waterproof Circular Connector M16 LED Lighting Connector with Gilded Brass Contacts
  • name
  • name
  • name
  • name

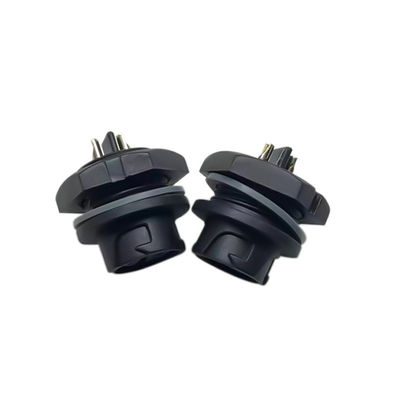

500V IP67 Waterproof Circular Connector M16 LED Lighting Connector with Gilded Brass Contacts

Brand Name: Cablein
Model Number: CB-M16-FFM01-2P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
M16 Rear Panel Male Plug LED Lighting Waterproof Plug Plant Growth Light Circular Connector
Metal:
Gilded Brass
Material:
PA6 Nylon
Insertion Life:
1000 Times
Voltage:
500V
Waterproof:
IP67
Highlight:

LED Lighting Waterproof Circular Connector

,

500V Waterproof Circular Connector

,

M16 Male Plug Connector

Product Description
500V LED Lighting Waterproof Circular Connector M16 Rear Panel Male Plug
High-performance M16 rear panel male plug connector designed specifically for LED lighting and plant growth light applications, featuring waterproof construction and reliable electrical performance.
Product Specifications
Pin Configuration
2/3/4/5/2+4/6/8/10/12 Pin Male/Female
Current Rating
15A Maximum
Material
PA6 Nylon
Connection Method
Threaded Panel Type
Operating Voltage
500V
Wire Assembly
Screw Folding or Self Locking
UV Resistance
Outdoor Rated
Cable Jacket OD
4.8-9.2 mm²
Technical Datasheet
Pins Number 2Pins 3Pins 4Pins 2+3Pins 5Pins 6Pins 8Pins 10Pins 12Pins
Rated Voltage 500V 500V 500V 500V 100V 100V 100V 100V 100V
Rated Current 15A 15A 8A 8A+3A 8A 8A 3A 3A 3A
Insulation Voltage 3KV 3KV 1KV 1KV 1KV 1KV 1KV 1KV 1KV
DC 500V Insulation Resistance 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ
IP Code IP67 IP67 IP67 IP67 IP67 IP67 IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.0mm² 1.0mm² ≤0.75mm² ≤0.5mm² ≤0.5mm² ≤0.5mm² ≤0.5mm²
Product Advantages
The M16 Rear Panel Male Plug is a high-quality waterproof connector specifically engineered for LED lighting and plant growth light applications. This circular connector ensures secure and stable connections, delivering reliable performance even in demanding environments.
With its IP67 waterproof rating, this connector is suitable for both indoor and outdoor use, effectively protecting electrical components from moisture and environmental damage. The durable construction enhances the efficiency and longevity of your plant growth light systems.
Engineered for professional growers and plant enthusiasts, this connector eliminates connectivity issues while promoting healthy, thriving plant growth through consistent, reliable electrical performance.
500V IP67 Waterproof Circular Connector M16 LED Lighting Connector with Gilded Brass Contacts 0
Technical Drawing
500V IP67 Waterproof Circular Connector M16 LED Lighting Connector with Gilded Brass Contacts 1
Frequently Asked Questions
What type of waterproof connectors do you have?
We offer a comprehensive range of waterproof connectors including LED waterproof connectors, assembly waterproof connectors, over-mold waterproof connectors, T-connectors, Y-customized connectors, and specialized connectors for livestock, poultry, new energy, and solar system applications. Many feature our proprietary molds and custom designs.
How to buy your products?
Contact our sales team online or via email with the following details:
  • Confirm current rating and number of contacts required
  • Specify assembly style preference
  • Provide cable wire gauge specifications
  • Indicate cable length and preferred shipping method
How to contact with you?
Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D team can quickly understand your requirements and provide effective solutions. We're available to answer any questions you may have.
Can I get samples?
Yes, we're pleased to provide samples. You only need to cover the freight cost. Please provide your courier account number and detailed shipping address, and we'll dispatch samples immediately.
