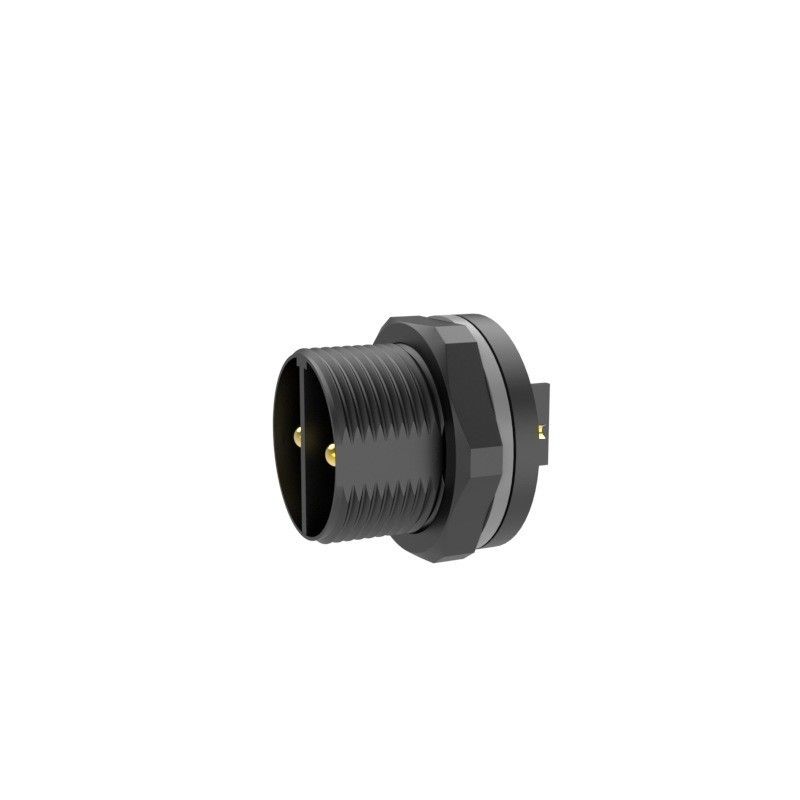

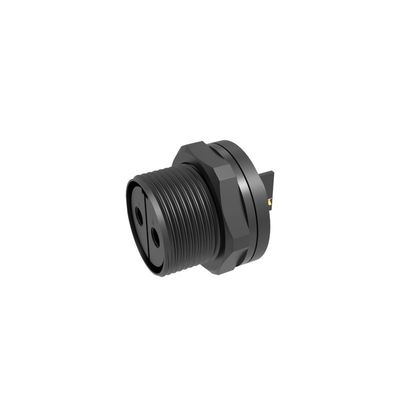

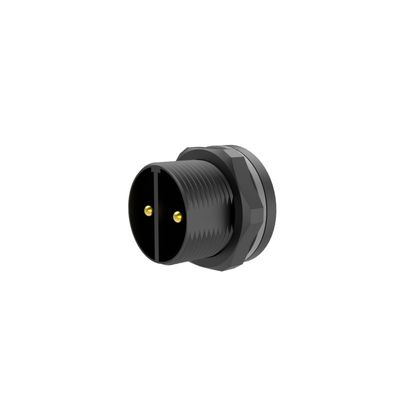

IP67 Waterproof M16 Circular Connector with Threaded Panel Mount and 500V Rating

Brand Name: Cablein
Model Number: CB-M16-FFM01-4P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
IP67 M12 Threaded Through Hole Industrial Waterproof Circular Connector
Metal:
Gilded Brass
Material:
PA6 Nylon
Insertion Life:
1000 Times
Voltage:
500V
Waterproof:
IP67
Highlight:

M16 Waterproof Circular Connector

,

Female Waterproof Circular Connector

,

Circular M16 Waterproof Connector

Product Description
M16 Front Female Pin Waterproof Circular Connector Threaded Welded Panel Controller
Product Overview
High-performance M16 circular power connector featuring front female pin configuration with threaded welded panel mounting for secure industrial applications.
Technical Specifications
Pin Configuration: M16 welded waterproof panel socket 2-8 cores
Current Rating: 15A Max
Material: PA6 Nylon
Connection Type: Threaded Panel
Operating Voltage: 500V
Wire Assembly: Soldering or screw fitting
UV Resistance: Outdoor rated
Cable Jacket OD: 4.5-9.2 mm²
Performance Data
Pins Number 2Pins 3Pins 4Pins 2+3Pins 6Pins 8Pins 10Pins 12Pins
Rated Voltage 500V 500V 500V 500V 100V 100V 100V 100V
Rated Current 15A 15A 8A 8A 8A 3A 3A 3A
Insulation Voltage 3KV 3KV 1KV 1KV 1KV 1KV 1KV 1KV
DC 500V Insulation Resistance 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ
IP CODE IP67 IP67 IP67 IP67 IP67 IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.0mm² ≤1.5+0.3mm² ≤0.75mm² ≤0.5mm² ≤0.5mm² ≤0.5mm²
This M16 circular power connector features an IP67 waterproof rating for reliable performance in harsh environments. Assembly requires only a screwdriver to attach wires inside each main body. Once connected, the wiring is fully protected from environmental elements. Soldering versions are also available upon request.
IP67 Waterproof M16 Circular Connector with Threaded Panel Mount and 500V Rating 0
Key Advantages
The M16 Front Female Pin Panel Threaded Welded Waterproof Circular Connector Controller delivers exceptional performance with multiple benefits:
  • IP67 waterproof rating ensures reliable operation in harsh and wet environments
  • Threaded and welded design provides secure, stable connections resistant to loosening
  • High durability withstands mechanical stress and vibrations
  • Excellent electrical conductivity for efficient signal transmission
  • Compact circular design saves space and simplifies installation
  • Ideal for industrial machinery, automotive systems, and outdoor electronics
Technical Drawing
IP67 Waterproof M16 Circular Connector with Threaded Panel Mount and 500V Rating 1
Frequently Asked Questions
What type of waterproof connectors do you have?
We offer comprehensive waterproof connector solutions including LED waterproof connectors, assembly waterproof connectors, over-mold waterproof connectors, T connectors, Y customized connectors, livestock industry connectors, poultry industry connectors, new energy waterproof connectors, and solar system waterproof connectors. Many feature our proprietary molds and custom designs.
How to buy your products?
Contact our sales team online or by email with the following details:
  • Current rating and number of contacts required
  • Preferred assembly style
  • Cable wire gauge specifications
  • Cable length and shipping preferences
How to contact with you?
Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D team can quickly understand your requirements and provide effective solutions. Don't hesitate to reach out with any questions.
Can I get samples?
Yes, we're pleased to provide samples. You only need to cover the freight cost. Please share your courier account number and detailed shipping address, and we'll dispatch samples immediately.
