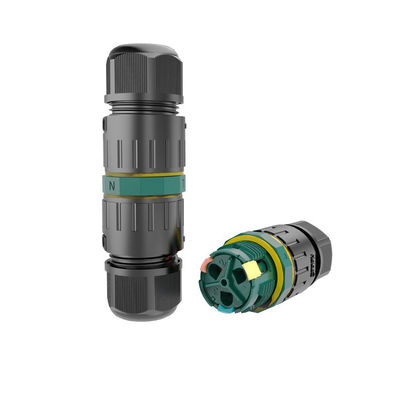

M20 3 Core IP68 Waterproof Circular Connector with 25A Push-Type Quick Card Adapter for Field Light

Brand Name: Cablein
Model Number: CB-M20-FLF01-3O
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
M20-3 Core Push-Type Quick Card Adapter IP68 25A Waterproof Circular Connector For Field Light
Temperature Range:
-40-105℃
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
450V
Waterproof:
IP68
Cable Length:
Per Your Requirement
Sample Availability:
Yes
Highlight:

3 Core Waterproof Circular Connector

,

Waterproof Circular Connector IP68

Product Description
M20 3 Core Waterproof Circular Connector Push Type Quick Card Adapter IP68
This M20-3 Core Push-Type Quick Card Adapter is an IP68 rated 25A waterproof circular connector specifically designed for field light applications and harsh environments.
Product Specifications
Pin Configuration 3Pins Male/Female Connector
Rated Voltage 450V
Rated Current 24A Max
Insulation Voltage 3KV
DC 500V Insulation Resistance 100MΩ
IP Rating IP68
Cable Specifications 0.5mm²-2.5mm²
Assembly Cable Diameter 5-9mm, 9-12mm
Material PA66 Nylon
Connection Method Screw-less Type Waterproof Connector
Assembly Wire Soldering or Screw Fitting
Outdoor UV Resistance Pass

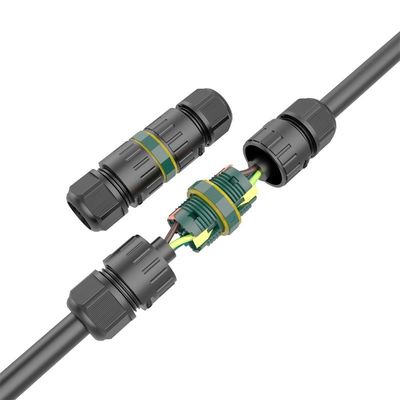

Key Features & Advantages
M20 3 Core IP68 Waterproof Circular Connector with 25A Push-Type Quick Card Adapter for Field Light 0
  • IP68 waterproof rating ensures protection against moisture and dust for outdoor applications
  • Push-type quick card design enables effortless installation and disconnection
  • 25A current capacity provides stable power supply for field lights
  • Designed to withstand harsh environmental conditions
  • Simple assembly requiring only a screwdriver for wire attachment
  • Available in both screw fitting and soldering versions
  • UV resistant material suitable for outdoor use

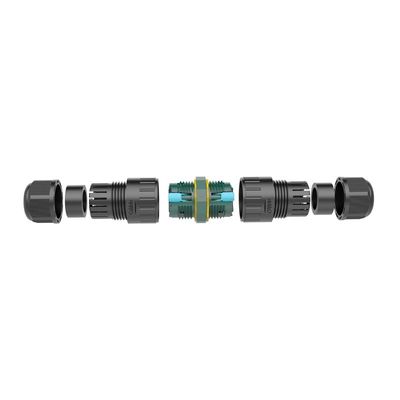

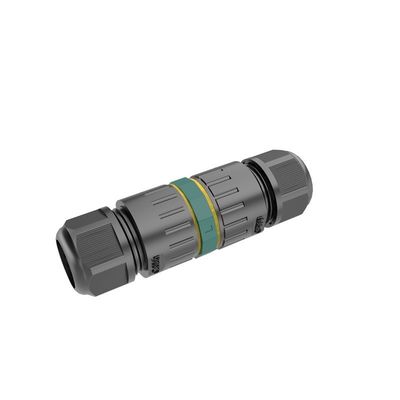

Product Drawings
M20 3 Core IP68 Waterproof Circular Connector with 25A Push-Type Quick Card Adapter for Field Light 1 M20 3 Core IP68 Waterproof Circular Connector with 25A Push-Type Quick Card Adapter for Field Light 2
Frequently Asked Questions
What type of waterproof connectors do you have?
We offer comprehensive series of waterproof connectors including LED waterproof connectors, assembly waterproof connectors, over-mold waterproof connectors, T connectors, Y customized connectors, livestock industry connectors, poultry industry connectors, new energy waterproof connectors, and solar system waterproof connectors. Many feature our private molds and custom designs.
How to buy your products?
Contact our sales team online or by email. Please provide: current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.
How to contact with you?
Please provide your email, phone number, Skype, or WhatsApp ID. Our professional sales and R&D team with over 8 years of industry experience is ready to assist with any questions or technical requirements.
Can I get samples?
Yes, we provide samples. You only need to pay the freight cost. Provide your courier number and detailed address, and we will dispatch samples immediately.
