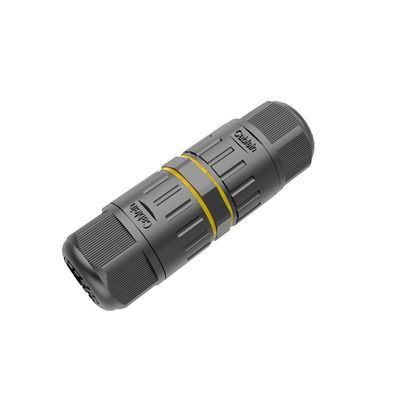

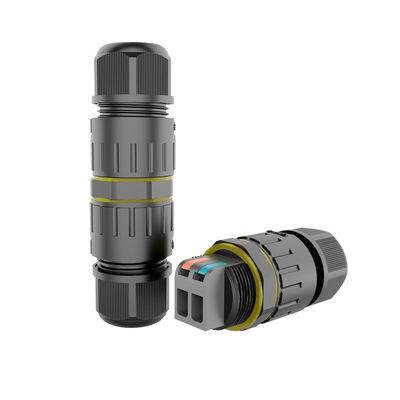

M20 Waterproof Circular Connector IP68 Rated with 25A Current Capacity and PA66 Nylon Material for Field Light

Brand Name: Cablein
Model Number: CB-M20-FLF01-2O
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
M20-3 Core Push-Type Quick Card Adapter IP68 25A Waterproof Circular Connector For Field Light
Temperature Range:
-40-105℃
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
450V
Waterproof:
IP68
Highlight:

Nylon Plastic Circular Connectors

,

M20 Plastic Circular Connectors

,

Waterproof IP68 Circular Connector

Product Description
M20 3-Core Nylon Plastic Circular Connectors - IP68 Waterproof
Quick Overview
Pin Configuration: 2-Pin Male/Female Connector
Current Rating: 24A Maximum
Material: PA66 Nylon
Connection Type: Screw-less Push-Type Waterproof
Operating Voltage: 450V
Wire Assembly: Soldering or Screw Fitting
UV Resistance: Outdoor Rated
Cable Jacket OD: 5-9mm, 9-12mm
Technical Specifications
Parameter Specification
Number of Pins 2 Pins
Rated Voltage 450V
Rated Current 24A
Insulation Voltage 3KV
DC 500V Insulation Resistance 100MΩ
IP Rating IP68
Cable Specifications 0.5mm² - 2.5mm²
Assembly Cable Diameter 5-9mm, 9-12mm
Key Features & Benefits
M20 Waterproof Circular Connector IP68 Rated with 25A Current Capacity and PA66 Nylon Material for Field Light 0

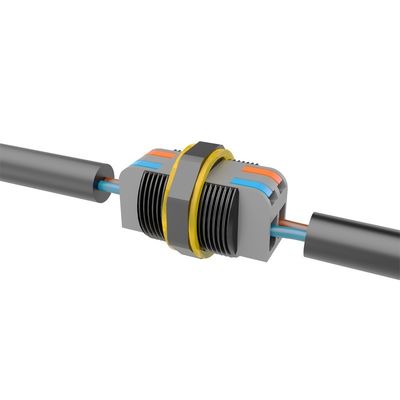

  • Tool-less lever connector design - pull lever up 90°, insert wire, push lever down for secure connection
  • Quick card screwless series for easy, fast, and safe installation
  • Compatible with solid, stranded, and thin wire conductors from 0.5 to 2.5 mm²
  • Handles up to 5 core wires with 16A current and 450V voltage capacity
  • IP68 waterproof rating ensures reliable performance in harsh weather and outdoor environments
  • Protection against moisture and dust for enhanced longevity
  • 25A current capacity meets demanding power requirements for field lighting systems
  • Available in various designs and configurations with comprehensive accessory options
This connector delivers reliable and secure connections in challenging outdoor environments, ensuring optimal performance for your field light installations. The push-type quick card design enables efficient installation while maintaining superior durability.
Product Drawings & Diagrams
M20 Waterproof Circular Connector IP68 Rated with 25A Current Capacity and PA66 Nylon Material for Field Light 1 M20 Waterproof Circular Connector IP68 Rated with 25A Current Capacity and PA66 Nylon Material for Field Light 2
Frequently Asked Questions
What types of waterproof connectors do you offer?
We provide comprehensive waterproof connector solutions including LED waterproof connectors, assembly waterproof connectors, over-mold connectors, T-connectors, Y-customized connectors, livestock industry connectors, poultry industry connectors, new energy connectors, and solar system connectors. Many feature our proprietary molds and custom designs.
How do I purchase your products?
Contact our sales team online or via email. Please provide: current rating and number of contacts required, assembly style preference, cable wire gauge specifications, cable length requirements, and preferred shipping method.
How can I contact you?
Please provide your email, phone number, Skype, or WhatsApp ID. Our experienced team with over 8 years in the industry includes professional sales and R&D specialists ready to quickly address and resolve your technical requirements.
Can I request samples?
Yes, we're pleased to provide samples. You only need to cover the freight cost. Please provide your courier account number and detailed shipping address, and we'll dispatch samples immediately.
