M20T IP68 Waterproof Circular Connector with PA66 Nylon Material and 24A Current Rating for Outdoor Street Lights

Brand Name: Cablein
Model Number: CB-M20-FTF01-2O
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
M20T Three-Way Four-Core Lock Screw Connector IP68 Outdoor Street Light Waterproof Circular Connector
Temperature Range:
-40-105℃
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
300V
Waterproof:
IP68
Highlight:

M20 Waterproof Circular Connector

,

Three Way Waterproof Circular Connector

,

Four Core Screw Lock Connector

Product Description
M20 T-Type Three Way Waterproof Circular Connector
Four-core screw lock connector designed for industrial outdoor applications with IP68 waterproof rating.
Product Specifications
Parameter Specification
Pin Configuration 3-Way Four Core
Current Rating 24A Max
Material PA66 Nylon
Connection Method Quick Lock
Operating Voltage 450V
Assembly Method Soldering or screw fitting
Cable Jacket OD 5-9 mm, 9-12 mm
Technical Datasheet
Parameter Value
Pins Number 2 Pins
Rated Voltage 300V
Rated Current 24A
Insulation Voltage 3KV
DC 500V Insulation Resistance 100MΩ
IP Code IP68
Cable Specifications 0.5mm²-2.5mm²
Assembly Cable Diameter 5-9mm, 9-12mm
Product Features

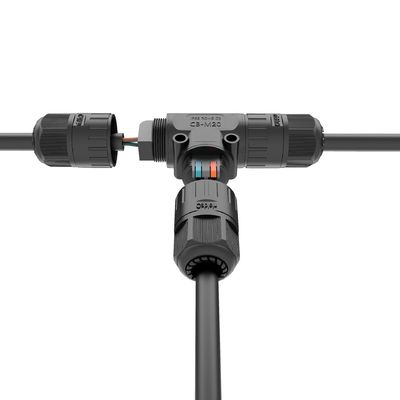

M20T IP68 Waterproof Circular Connector with PA66 Nylon Material and 24A Current Rating for Outdoor Street Lights 0
The M20T Three-Way Four-Core Lock Screw Connector delivers exceptional performance in industrial environments. With its IP68 waterproof rating and high-quality construction, this connector ensures reliable operation even in harsh outdoor conditions.
Specifically engineered for outdoor street lighting applications, this connector provides secure and stable connections. The three-way, four-core configuration enables efficient power and data transmission, while the lock screw mechanism guarantees a tight fit that prevents loosening or disconnections.
In industrial settings where durability and dependability are critical, this connector reduces maintenance costs and enhances lighting system functionality, making it an ideal solution for optimizing outdoor lighting infrastructure.
Product Drawings

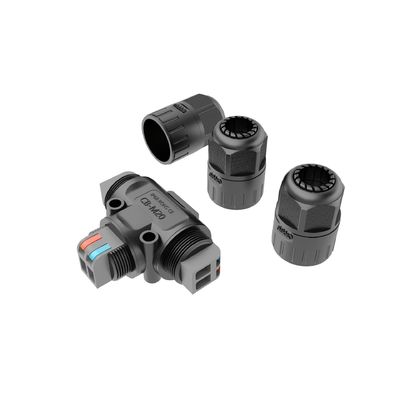

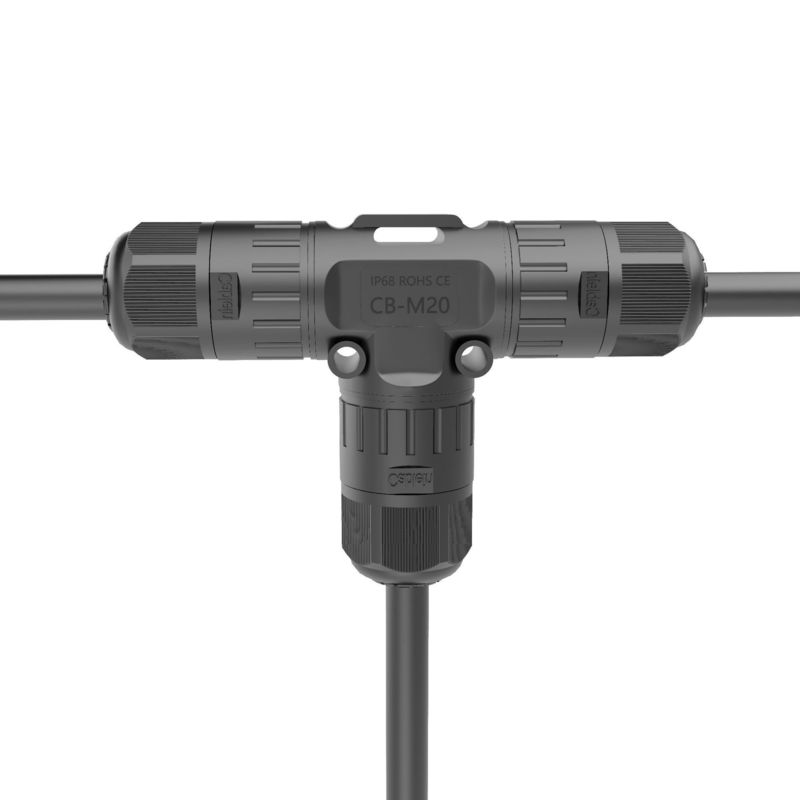

M20T IP68 Waterproof Circular Connector with PA66 Nylon Material and 24A Current Rating for Outdoor Street Lights 1 M20T IP68 Waterproof Circular Connector with PA66 Nylon Material and 24A Current Rating for Outdoor Street Lights 2
Frequently Asked Questions
Q: What type of waterproof connectors do you have?
A: We offer a comprehensive range of waterproof connectors including LED waterproof connectors, assembly waterproof connectors, over-mold waterproof connectors, T-type connectors, Y-customized connectors, livestock industry connectors, poultry industry connectors, new energy waterproof connectors, and solar system waterproof connectors. Many of our connectors feature proprietary molds and custom designs.
Q: How to buy your products?
A: Contact our sales team online or by email. Please provide the following information: current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.
Q: How to contact with you?
A: Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D team can quickly understand and resolve your technical requirements.
Q: Can I get samples?
A: Yes, we provide samples. You only need to cover the freight cost. Please provide your courier account number and detailed address for immediate sample shipment.
