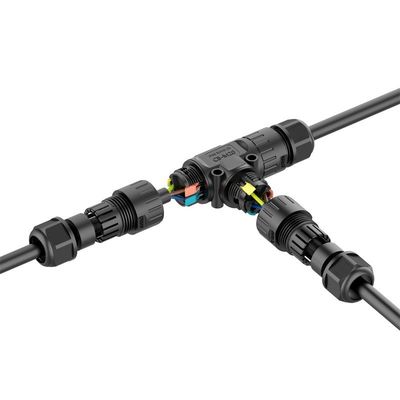

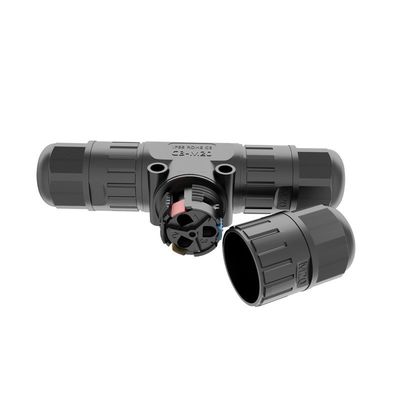

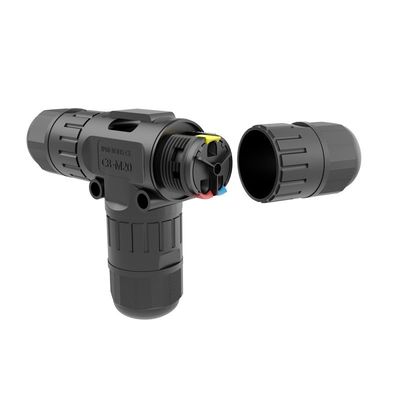

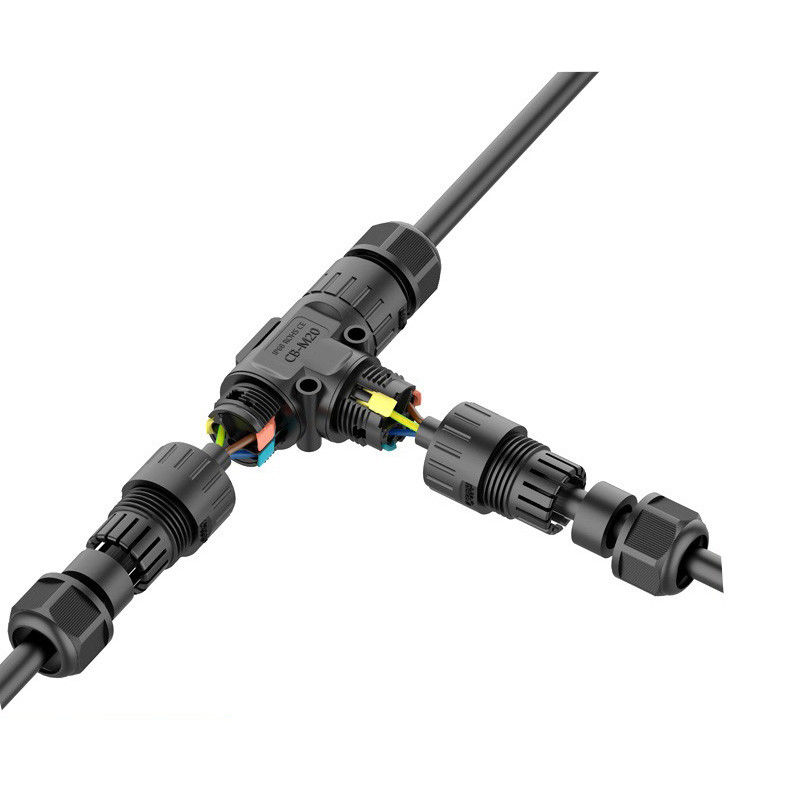

M20 Outdoor Landscape Lighting Connector IP68 Waterproof 24A High Power PA66 Nylon Adapter

Brand Name: Cablein
Model Number: CB-M20-FTF01-3O
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
Outdoor Landscape Lighting M20 High Power Current 6 Square Tee Adapter Black Waterproof Circular Connector
Temperature Range:
-40-105℃
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
450V
Waterproof:
IP68
Connection Way:
Push Lock
Mating Style:
Male And Female
Highlight:

Outdoor Landscape Lighting Connectors Waterproof

,

M20 Outdoor Landscape Lighting Connectors

Product Description
M20 Outdoor Landscape Lighting Connectors Waterproof High Power Adapter
Product Overview
This high-performance M20 waterproof circular connector is specifically designed for outdoor landscape lighting applications, featuring robust construction and reliable waterproof protection.
Key Specifications
Pin Configuration 3-Way Four Core Connector
Current Rating 24A Maximum
Material PA66 Nylon
Connection Method Quick Lock
Operating Voltage 450V
Wire Assembly Soldering or Screw Fitting
UV Resistance Outdoor Rated
Cable Jacket OD 5-9 mm, 9-12 mm
Technical Specifications
Parameter Specification
Pins Number 3 Pins
Rated Voltage 450V
Rated Current 24A
Insulation Voltage 3KV
DC 500V Insulation Resistance 100MΩ
IP Code IP68
Cable Specifications 0.5mm²-2.5mm²
Assembly Cable Diameter 5-9mm, 9-12mm
Product Advantages
M20 Outdoor Landscape Lighting Connector IP68 Waterproof 24A High Power PA66 Nylon Adapter 0
The M20 waterproof circular connector high power adapter delivers exceptional performance for outdoor landscape lighting applications. Its IP68-rated waterproof design ensures reliable operation in harsh weather conditions, protecting lighting systems from moisture damage. The high power capacity enables brighter, more consistent illumination for enhanced outdoor space beauty and safety.
  • Engineered for maximum durability and long service life
  • Secure circular connector design prevents loose connections
  • High power output capability for superior lighting performance
  • Weather-resistant construction for outdoor applications
Product Drawings
M20 Outdoor Landscape Lighting Connector IP68 Waterproof 24A High Power PA66 Nylon Adapter 1 M20 Outdoor Landscape Lighting Connector IP68 Waterproof 24A High Power PA66 Nylon Adapter 2
Frequently Asked Questions
What type of waterproof connectors do you have?
We offer a comprehensive range of waterproof connectors including LED waterproof connectors, assembly waterproof connectors, over-mold waterproof connectors, T-connectors, Y-customized connectors, livestock industry connectors, poultry industry connectors, new energy waterproof connectors, and solar system waterproof connectors. Many feature our proprietary molds and custom designs.
How to buy your products?
Contact our sales team online or by email. Please provide: current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.
How to contact with you?
Please provide your email, phone number, Skype, or WhatsApp ID. Our experienced team with over 8 years in the industry includes professional sales and R&D staff ready to quickly address your requirements and solve technical challenges.
Can I get samples?
Yes, we're pleased to provide samples. You only need to cover the freight cost. Please provide your courier account number and detailed shipping address for immediate sample dispatch.
