M25 Waterproof Circular Connector IP68 Rated 32A High Current 3-Core for Photovoltaic Micro Inverter

Brand Name: Cablein
Model Number: CB-P16-MDM01-4P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
M25 Assembles 3-Core Connector 32A High Current IP68 Photovoltaic Micro Inverter Waterproof Circular Connector
Metal:
Gilded Brass
Shell Material:
PA6 Nylon
Insertion Life:
1000 Times
Voltage:
500V
Waterproof:
IP67
Highlight:

Circular Waterproof Connector IP68

,

Circular Waterproof Connector 32A

Product Description
M25 Assembles Circular Waterproof Connector IP68 3 Core 32A Micro Inverter
Product Overview
High-performance 3-core circular connector designed for photovoltaic micro inverter applications with IP68 waterproof rating and 32A current capacity.
Technical Specifications
Parameter Specification
Pin Configuration 3 Pin Male/Female Connector
Current Rating 30A Maximum
Material PA6 Nylon
Connection Type Self-locking butt type
Operating Voltage 500V
Assembly Method Soldering or screw fitting
UV Resistance Outdoor rated
Cable Jacket OD 6-14 mm²
Performance Data
Pins Number 2Pins 3Pins 4Pins 5Pins
Rated Voltage 500V 500V 500V 100V
Rated Current 30A 30A 30A 30A
Insulation Voltage 3KV 3KV 3KV 3KV
DC 500V Insulation Resistance 500MΩ 500MΩ 500MΩ 500MΩ
IP Code IP67 IP67 IP67 IP67
Cable Specifications ≤4.0mm² ≤4.0mm² ≤4.0mm² ≤4.0mm²
Assembly Cable Diameter 6-14mm² 6-14mm² 6-14mm² 6-14mm²
Key Advantages
The M25 3-Core Connector delivers exceptional performance in photovoltaic systems with its 32A high current capacity and IP68 waterproof rating, ensuring reliable operation in demanding environmental conditions.
The three-core design provides stable and balanced power flow, enhancing micro inverter performance and system safety. The compact, robust construction simplifies installation and maintenance while ensuring long-term durability.
Application Industries
  • Communications Equipment
  • Product Coding Machines
  • Inventory Product Coding Systems
  • Inkjet Systems
  • Solar Power Systems
  • Industrial Inkjet Equipment
  • Electric Power Equipment
  • Laboratory Forensic & Pathology Equipment
  • Heavy Machinery

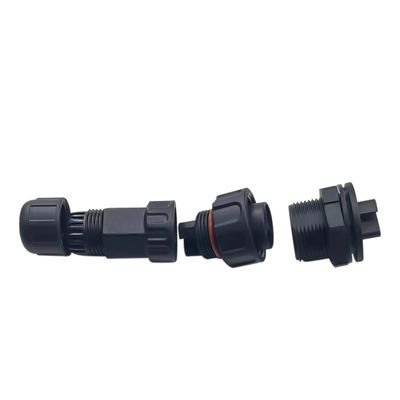

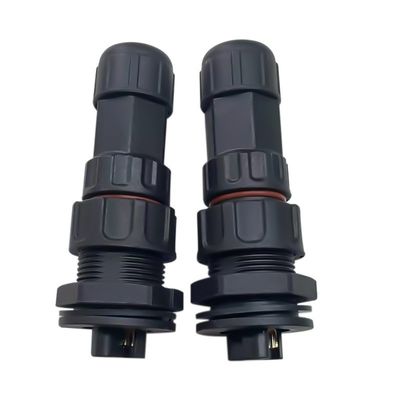

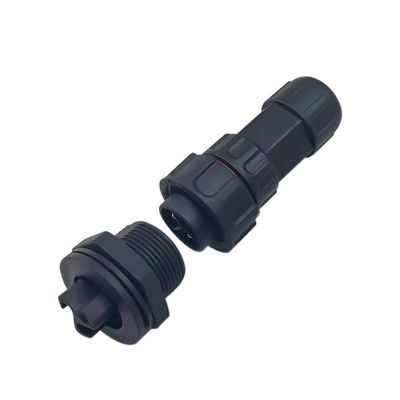

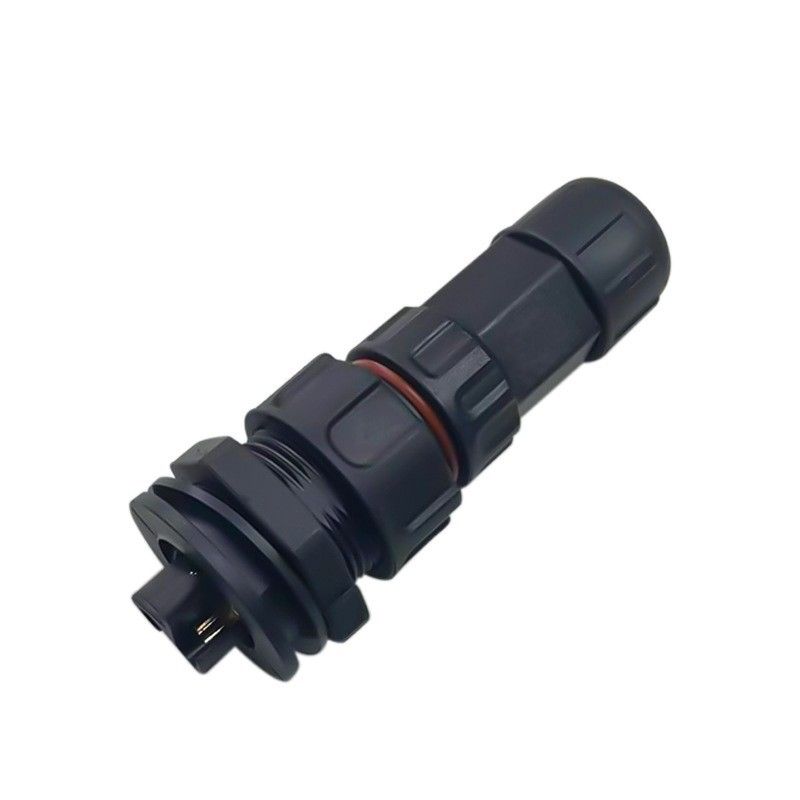

Product Images
M25 Waterproof Circular Connector IP68 Rated 32A High Current 3-Core for Photovoltaic Micro Inverter 0 M25 Waterproof Circular Connector IP68 Rated 32A High Current 3-Core for Photovoltaic Micro Inverter 1
Technical Drawing
M25 Waterproof Circular Connector IP68 Rated 32A High Current 3-Core for Photovoltaic Micro Inverter 2
Frequently Asked Questions
Q: How to buy your products?
A: Contact our sales team online or by email. Please provide:
  • Current rating and number of contacts required
  • Assembly style preference
  • Cable wire gauge specifications
  • Cable length and shipping method
Q: Can I get samples?
A: We are pleased to provide samples. You only need to pay the freight cost. Please provide your courier account number and detailed shipping address, and we will dispatch the sample immediately.
