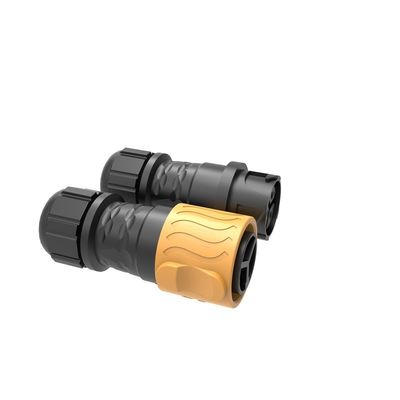

P25 Three-Core IP67 Waterproof Circular Connector with 25A Current Rating and Self-Locking Assembly for Micro Inverter Box

All Category

Waterproof Male Female Connector

Waterproof Panel Mount Connector

Power Plug

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contact Now

P25 Three-Core IP67 Waterproof Circular Connector with 25A Current Rating and Self-Locking Assembly for Micro Inverter Box

Brand Name:	Cablein
Model Number:	CB-P25-MDM01-3P-X
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL, CB, SAA

Gender:

Male And Female

Metal:

Gilded Brass

Material:

PA66 Nylon

Insertion Life:

1000 Times

Voltage:

Waterproof:

Contact Resistance:

Connection Type:

Solder Type

Highlight:

Three Core Waterproof Circular Connector

P25 Waterproof Circular Connector

Product Description

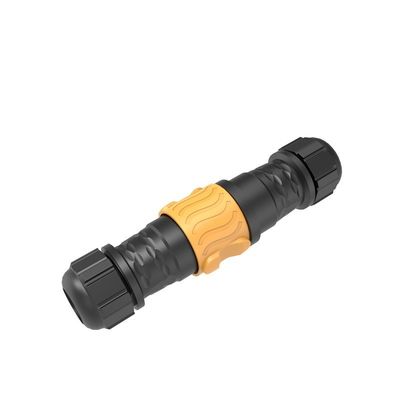

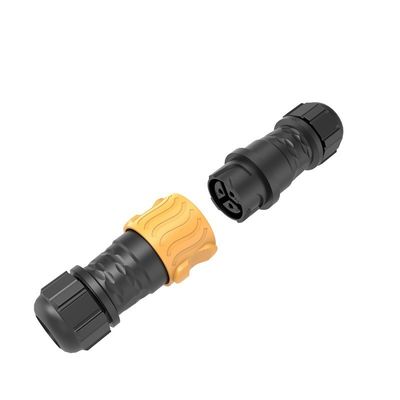

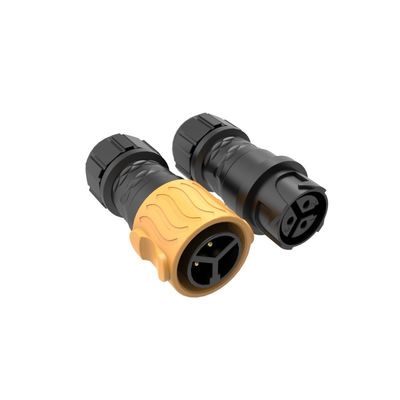

P25 Three-Core Waterproof Circular Connector Self-Locking Assembly

This micro inverter box connector provides reliable and secure connections in various environments with its self-locking mechanism and waterproof design.

Quick Specifications

Pin Configuration: 3 Pin Male/Female

Current Rating: 25A +5A Max

Material: PA66 Nylon

Connection Type: Self-locking butt type

Operating Voltage: 300V

Assembly Method: Soldering or screw fitting

UV Resistance: Outdoor rated

Cable Jacket OD: 6-12 mm²

Technical Specifications

Specification	3 Pins	3+9 Pins
Rated Voltage	300V	300V
Rated Current	25A	25A + 5A
Insulation Voltage	3KV	2KV
DC 500V Insulation Resistance	100MΩ	100MΩ
IP Code	IP67	IP67
Cable Specifications	≤2.5mm²	≤2.5mm²
Assembly Cable Diameter	6-12mm²	6-12mm²

Product Advantages

The P25 Three-Core Waterproof Circular Connector Self-Locking Assembly delivers exceptional performance for micro inverter box connections. Engineered with precision and high-quality materials, this innovative connector ensures reliable operation in diverse environmental conditions. The self-locking mechanism prevents accidental disconnections, while the IP67 waterproof rating protects electrical components from moisture and environmental elements. Easy assembly reduces installation time and effort, providing long-lasting performance with minimal maintenance requirements.

Application Industries

Stage Equipment

Smart Grid Systems

LED Lighting

Solar Energy Equipment

Ship Equipment

Agriculture

Electric Power Equipment

Vehicle Equipment

Ebike/Motorcycle

Communications Equipment

Heavy Machinery

Transportation

Product Drawing

Frequently Asked Questions

How to buy your products?

Contact our sales team online or by email. Please provide the following information:
- Current rating and number of contacts
- Assembly style requirements
- Cable wire gauge specifications
- Cable length and shipping preferences

Can I get samples?

Yes, we are pleased to offer samples. You only need to pay the freight cost. Please provide your courier account number and detailed shipping address, and we will dispatch the sample immediately.
