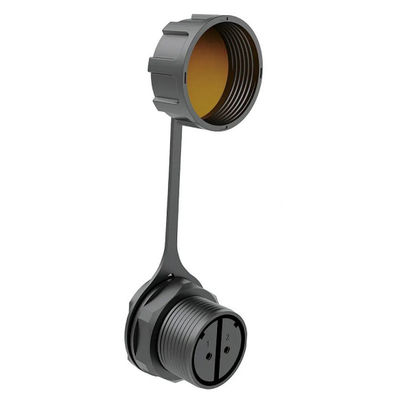

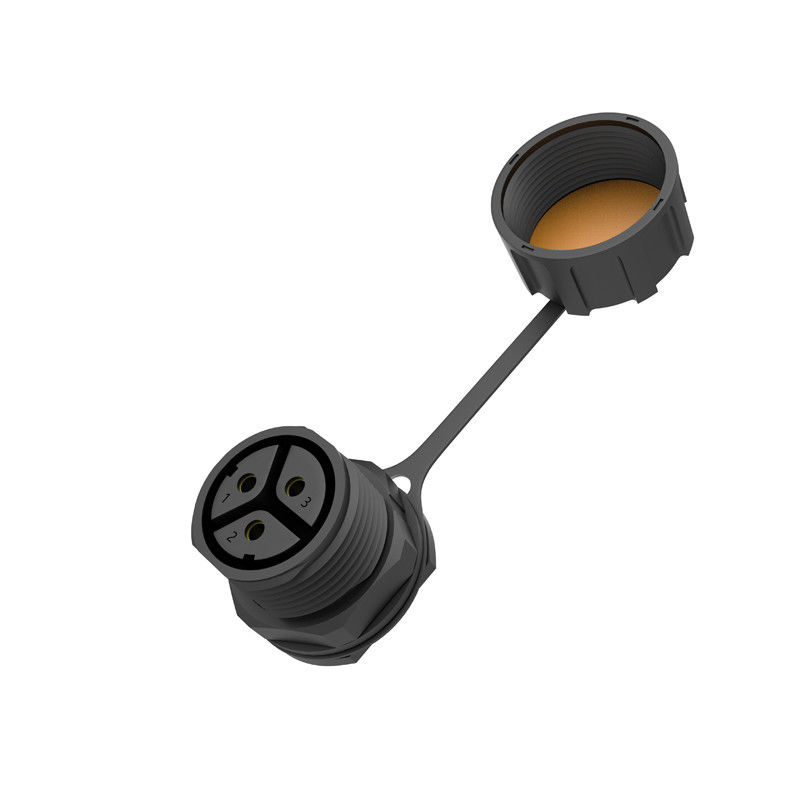

M25 3-Core IP67 Waterproof Circular Connector Female Micro Inverter 500V Rated

Brand Name: Cablein
Model Number: CB-M25-FFF01-2P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL, CB, SAA
Name:
M25-3-Core Front Panel Female Chain Dust Cover Waterproof Circular Connector For Micro Inverter
Metal:
Gilded Brass
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
500V
Waterproof:
IP67
Highlight:

M25 Circular Wire Connector

,

Waterproof Circular Wire Connector

,

Female Micro Inverter Connector

Product Description
M25 3-Core Waterproof Circular Wire Connector Female Micro Inverter Connector
Product Specifications
Pin Configuration: 2/3/4/5 Pin Male/Female Connector
Current Rating: 30A Max
Material: PA66 Nylon
Connection Type: Panel Type Docking Butt Type
Operating Voltage: 500V
Assembly Method: Soldering or Screw Fitting
Outdoor UV Resistance: Certified
Cable Jacket OD: 4.0 mm²
Technical Specifications
Pins Number 2 Pins 3 Pins 4 Pins 5 Pins
Rated Voltage 500V 300V 500V 500V
Rated Current 30A 30A 30A 30A
Insulation Voltage 3KV 3KV 3KV 2KV
DC 500V Insulation Resistance 500MΩ 500MΩ 500MΩ 200MΩ
IP CODE IP67 IP67 IP67 IP67
Cable Specifications ≤4.0mm² ≤4.0mm² ≤4.0mm² ≤4.0mm²
Key Features
  • Advanced IP67 self-locking connector structure

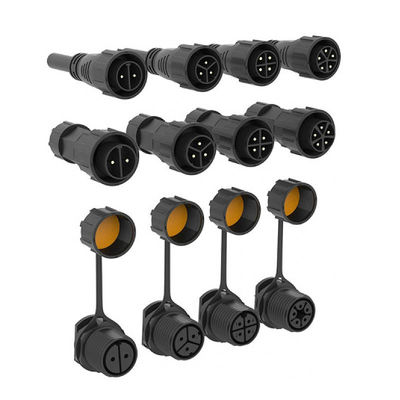

  • Multiple pin configurations: 2, 3, 4, 5, 6, 7, 8, 9 to 32 pins available
  • Flexible connection methods: soldering or screw terminal
  • Versatile assembly: cable-to-cable, male and female without cable
  • Industry certifications: UL, TUV, CE, ROHS, CQC
  • Push-pull locking type connection mechanism
Application Industries
  • Stage equipment and LED lighting
  • Smart grid and solar energy equipment
  • Ship equipment and agriculture applications
  • Electric power equipment and vehicle equipment
  • E-bike/motorcycle and communications equipment
  • Heavy machinery and transportation systems
Product Drawing
M25 3-Core IP67 Waterproof Circular Connector Female Micro Inverter 500V Rated 0
The M25 3-Core Waterproof Circular Connector Female Chain Dust Cover is engineered to enhance the performance and longevity of micro inverter systems. Precision-crafted for durability, this dust cover provides superior waterproof protection, safeguarding connectors from moisture, dust, and environmental contaminants.
The circular design ensures a secure fit with reliable sealing that prevents unwanted intrusion. Constructed from high-quality materials, it withstands demanding environmental conditions and is essential for maintaining optimal efficiency and reliability in micro inverter installations.
Frequently Asked Questions
How to purchase your products?
Contact our sales team online or by email. Please provide the following details:
• Current rating and number of contacts required
• Preferred assembly style
• Cable wire gauge specifications
• Cable length requirements and shipping method
Can I request samples?
Yes, we are pleased to provide samples. Customers are responsible for freight costs only. Please provide your courier account number and detailed shipping address, and we will dispatch samples immediately.
