P25 Three-Core IP67 Waterproof Circular Connector with Self-Locking Plate for Micro Inverter 25A Current Rating
All Category

Waterproof Circular Connector

Waterproof Male Female Connector

Waterproof Power Connector

Waterproof Cable Connector

Waterproof Signal Connector

Waterproof Data Connector

RJ45 Waterproof Connector

Waterproof Panel Mount Connector

Waterproof LED Connectors

Power Plug
Contact Us
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contact Now

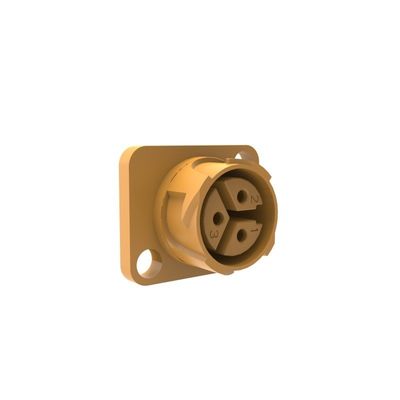

P25 Three-Core IP67 Waterproof Circular Connector with Self-Locking Plate for Micro Inverter 25A Current Rating

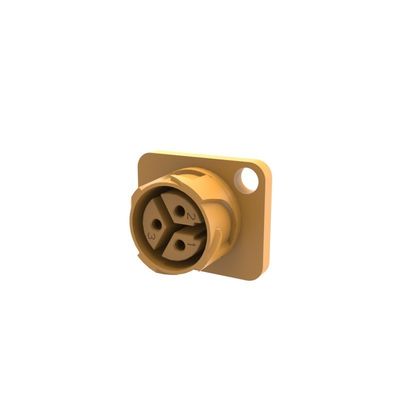

  • name
  • name

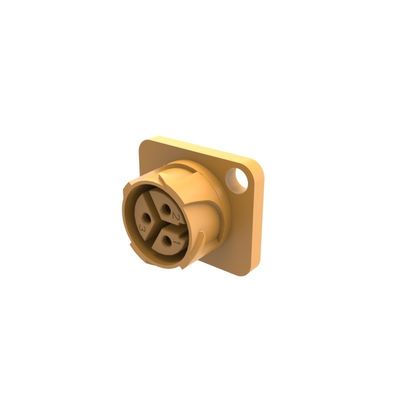

  • name
  • name

P25 Three-Core IP67 Waterproof Circular Connector with Self-Locking Plate for Micro Inverter 25A Current Rating

Brand Name: Cablein
Model Number: CB-P25-FFF01-3P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL, CB, SAA
Name:
P25 Three-Core Self-Locking Plate End Waterproof Circular Connector Micro Inverter Connector Box
Metal:
Gilded Brass
Material:
PA66 Nylon
Mechnical Life:
1000 Times
Voltage:
300V
Waterproof:
IP67
Application:
Power
Type:
Circular
Highlight:

P25 Circular Waterproof Connector

,

Three Core Circular Waterproof Connector

Product Description
P25 Three-Core Circular Waterproof Connector Micro Inverter Connector Box
Product Overview
Pin Configuration: 3/3+9 Pin Male Female Connector
Current Rating: 25A +5A Max
Material: PA66 Nylon
Connection Type: Panel Type Docking Butt
Operating Voltage: 300V
Assembly Method: Soldering or Screw Fitting
UV Resistance: Outdoor Rated
Cable Jacket OD: 1.5+0.3 mm²
Technical Specifications
Parameter 3 Pins 3+9 Pins
Rated Voltage 300V 300V
Rated Current 25A 25A +5A
Insulation Voltage 3KV 2KV
DC 500V Insulation Resistance 100MΩ 100MΩ
IP Code IP67 IP67
Cable Specifications ≤2.5mm² ≤1.5+0.3mm²
Key Advantages
The P25 Three-Core Self-Locking Plate End Waterproof Circular Connector Box delivers reliable performance for demanding applications. Its self-locking mechanism ensures secure connections that resist accidental disconnection, while the IP67 waterproof rating provides dependable protection in diverse environmental conditions.
The three-core configuration enables efficient power transmission, and the circular design facilitates easy installation while maintaining an aesthetically pleasing appearance. This connector box is engineered for micro inverter systems and various electrical applications where durability and reliability are paramount.
Application Industries
Stage Equipment
Smart Grid
LED Lighting
Solar Energy Equipment
Ship Equipment
Agriculture
Electric Power Equipment
Vehicle Equipment
Ebike/Motorcycle
Communications Equipment
Heavy Machinery
Transportation
Product Drawing
P25 Three-Core IP67 Waterproof Circular Connector with Self-Locking Plate for Micro Inverter 25A Current Rating 0
Frequently Asked Questions
How to buy your products?
Contact our sales team online or by email. Please provide the following information:
  • Current Rating and Number of Contacts
  • Assembly Style
  • Cable Wire Gauge
  • Cable Length and Shipping Method
Can I get samples?
Yes, we are pleased to provide samples. You only need to pay the freight cost. Please provide your courier account number and detailed shipping address, and we will dispatch the sample immediately.
