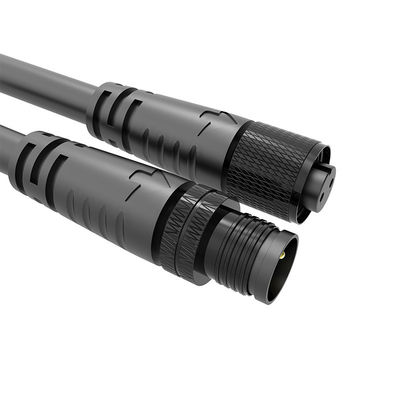

M10 IP68 Waterproof Male Female Connector with PA66 Nylon Material for 60V LED Cable

Brand Name: Cablein
Model Number: CB-M8-MDF11-2P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
60V
Waterproof:
IP68
Name:
M10 Metal Head Coated Waterproof Connector
Temperature Range:
-40-105℃
Highlight:

Waterproof Male Female Connector 2 Core

,

Waterproof Male Female Connector 3 Core

,

M10 Waterproof Connector IP68

Product Description
M10 Metal Head Coated Waterproof Connector LED Cable
Product Overview
High-performance M10 metal head waterproof connectors designed for LED cable applications with 2-core and 3-core configurations. Featuring IP68 waterproof rating and durable construction for reliable performance in demanding environments.
Technical Specifications

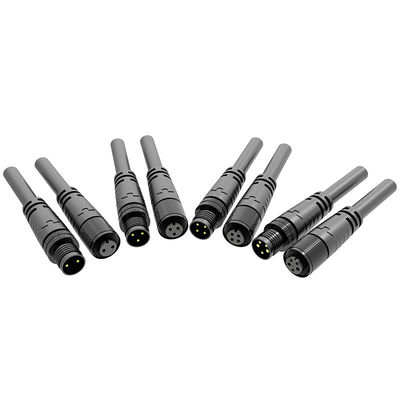

  • Pin Configuration: 2/3/4/2+3 Pins Male Female Connector
  • Current Rating: 8A+3A Maximum
  • Material: PA66 Nylon
  • Connection Type: Screw-less waterproof connector
  • Operating Voltage: 60V
  • Assembly Method: Soldering or screw fitting
  • Outdoor UV Resistance: Certified Pass
  • Cable Jacket OD: 2-6 mm
Detailed Specifications Table
Parameter 2Pins 3Pins 4Pins 3Pins
Rated Voltage 60V 60V 60V 60V
Rated Current 8A 8A 8A 8A+3A
Insulation Voltage 1KV 1KV 1KV 1KV
DC 500V Insulation Resistance 200MΩ 200MΩ 200MΩ 200MΩ
IP CODE IP67 IP67 IP67 IP67
Cable Specifications ≤1.0mm² ≤1.0mm² ≤1.0mm² ≤1.0mm²
Assembly Cable Diameter 2-6mm 2-6mm 2-6mm 2-6mm
Product Features

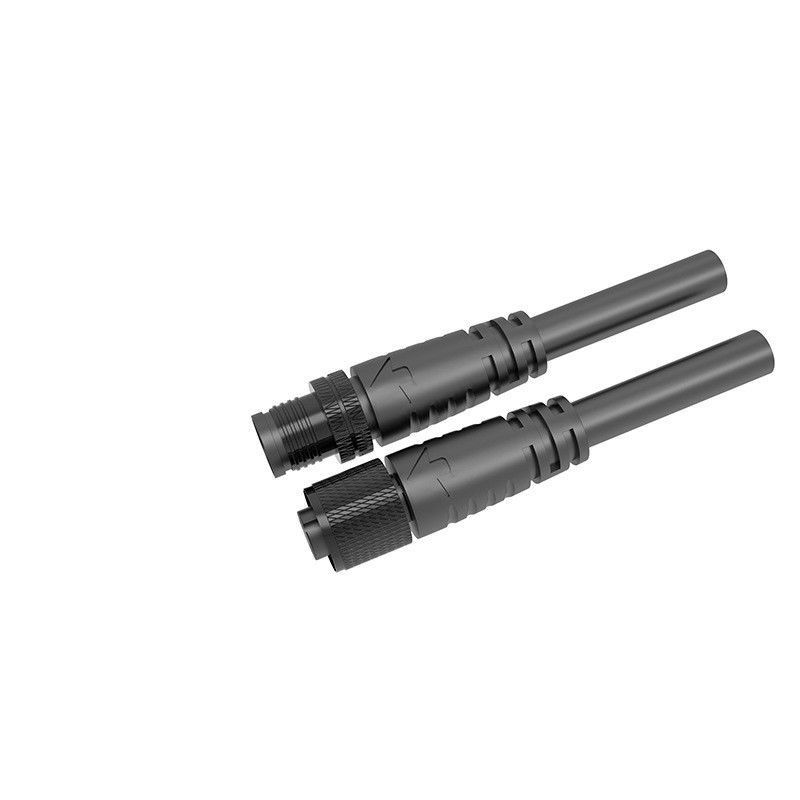

M10 IP68 Waterproof Male Female Connector with PA66 Nylon Material for 60V LED Cable 0
The M10 Metal Head Coated Waterproof Connector is engineered for superior performance in various applications including outdoor lighting, industrial equipment, and moisture-prone environments. Available in 2-core and 3-core configurations to meet diverse electrical requirements.
The advanced waterproof coating ensures reliable operation in wet conditions, protecting connection integrity and electrical flow. The durable metal head construction provides enhanced durability and professional appearance, making installation and maintenance straightforward for both professionals and DIY enthusiasts.
Technical Drawing
M10 IP68 Waterproof Male Female Connector with PA66 Nylon Material for 60V LED Cable 1
Frequently Asked Questions
What type of waterproof connectors do you have?
We offer comprehensive waterproof connector series including LED waterproof connectors, assembly waterproof connectors, over-mold waterproof connectors, T connectors, Y customized connectors, livestock industry connectors, poultry industry connectors, new energy waterproof connectors, and solar system waterproof connectors. Many feature our proprietary molds and custom designs.
How to purchase your products?
Contact our sales team online or via email. Please provide: current rating and number of contacts, assembly style requirements, cable wire gauge specifications, cable length preferences, and preferred shipping method.
How to contact you?
Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D teams can quickly understand your requirements and provide effective solutions. Don't hesitate to reach out with any questions.
Can I get samples?
Yes, we're pleased to provide samples. You only need to cover the freight cost. Please provide your courier account number and detailed shipping address, and we'll dispatch samples immediately.
