Waterproof Male Female Connector

Outdoor M12 Waterproof Male Female Connector with IP68 Rating, PA66 Nylon Material, and 100V Voltage for Power Cables

All Category

Waterproof Male Female Connector

Waterproof Panel Mount Connector

Power Plug

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contact Now

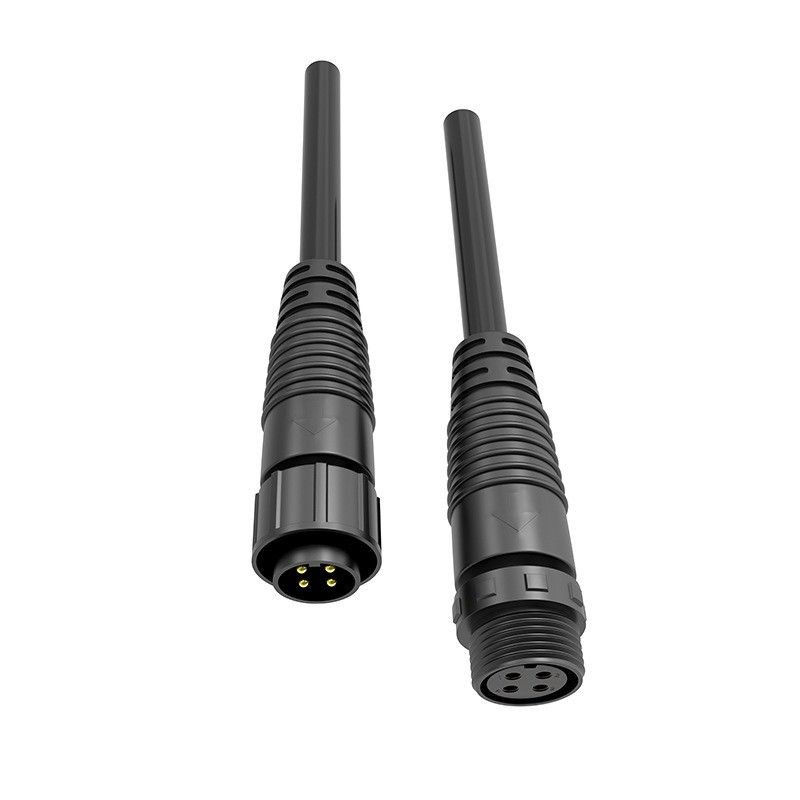

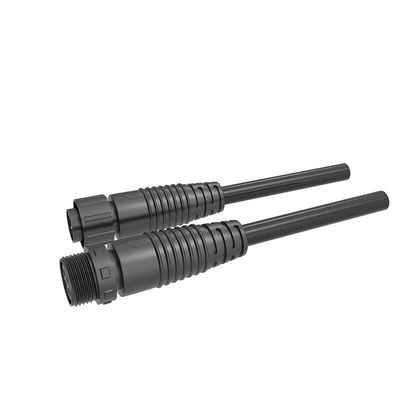

Outdoor M12 Waterproof Male Female Connector with IP68 Rating, PA66 Nylon Material, and 100V Voltage for Power Cables

Brand Name:	Cablein
Model Number:	CB-M12-MDF11-2P-X
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Name:

2/3/4/5 Core Outdoor M12 Male And Female Docking Reverse Connector Waterproof Head Power Cable

Temperature Range:

-40-105℃

Material:

PA66 Nylon

Insertion Life:

1000 Times

Voltage:

Waterproof:

Color:

Black

Gender:

Male And Female

Highlight:

Outdoor Waterproof Male Female Connector

M12 Waterproof Male Female Connector

Product Description

Outdoor M12 Waterproof Male Female Connector Docking Reverse Head Power Cable

Product Specifications

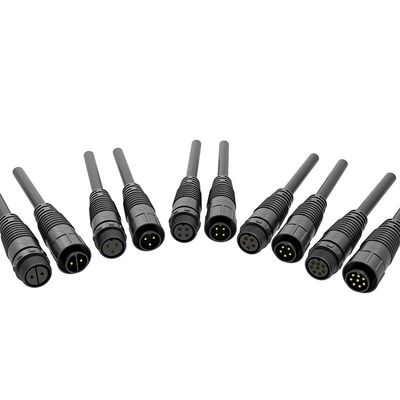

Pin Configuration: 2/3/4/5/2+3/6/8 Pins Male Female Connector
Current Rating: 8A+3A Max
Material: PA66 Nylon
Connection Method: Screw-less type waterproof connector
Operating Voltage: 100V
Assembly Wire: Soldering or screw fitting
Outdoor UV Resistance: Pass
Cable Jacket OD: 4-8 mm

Technical Datasheet

Pins Number	2Pins	3Pins	4Pins	5Pins	2+3Pins	6Pins	8Pins
Rated Voltage	100V	100V	80V	80V	80V	80V	80V
Rated Current	8A	8A	8A	8A	8A+3A	3A	3A
Insulation Voltage	3KV	3KV	1KV	1KV	1KV	1KV	1KV
DC 500V Insulation Resistance	200MΩ	200MΩ	200MΩ	200MΩ	200MΩ	200MΩ	200MΩ
IP CODE	IP67	IP67	IP67	IP67	IP67	IP67	IP67
Cable Specifications	≤1.0mm²	≤1.0mm²	≤0.75mm²	≤0.5mm²	≤1+0.5mm²	≤0.2mm²	≤0.2mm²
Assembly Cable Diameter	4-8mm	4-8mm	4-8mm	4-8mm	4-8mm	4-8mm	4-8mm

Product Advantages

M12 waterproof power connectors provide an ideal solution for creating custom waterproof connection cables with ease. Featuring screw-based terminals that eliminate the need for soldering, installation can be completed in just minutes.

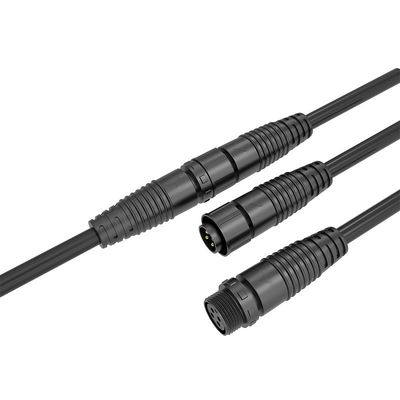

Once assembled, the M12 Outdoor Waterproof Connector offers simple plug-and-play functionality while effectively protecting splices and junctions from water and environmental elements. Disconnection is straightforward - simply unscrew the main body and separate the two ends.

These connectors incorporate multiple waterproofing levels including o-rings, waterproof sealant, and flexible end seals that tighten and seal completely when screwed together. With an IP67 waterproof rating, they provide reliable protection in demanding outdoor conditions.

Assembly requires only a screwdriver to attach wires inside each main body, resulting in fully protected wiring that withstands harsh environmental exposure.

Product Drawing

Frequently Asked Questions

What type of waterproof connectors do you have?

We offer comprehensive waterproof connector series, including many proprietary mold designs and custom solutions. Our product range includes LED waterproof connectors, assembly waterproof connectors, over-mold waterproof connectors, T-connectors, Y-customized connectors, livestock and poultry industry connectors, new energy waterproof connectors, and solar system waterproof connectors.

How to buy your products?

Contact our sales team online or via email with the following details:
• Confirm current rating and number of contacts
• Confirm assembly style
• Confirm cable wire gauge
• Confirm cable length and shipping method

How to contact with you?

Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D teams can quickly understand your requirements and provide effective solutions. Don't hesitate to reach out with any questions.

Can I get samples?

We're pleased to provide samples - you only need to cover the freight cost. Simply share your courier account number and detailed shipping address, and we'll dispatch samples immediately.
