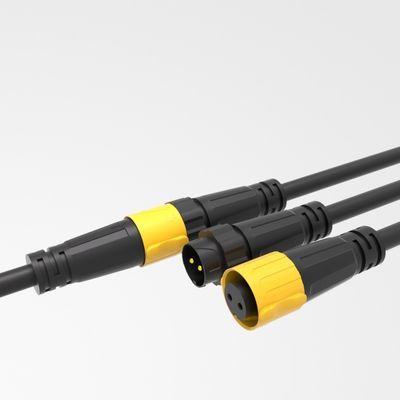

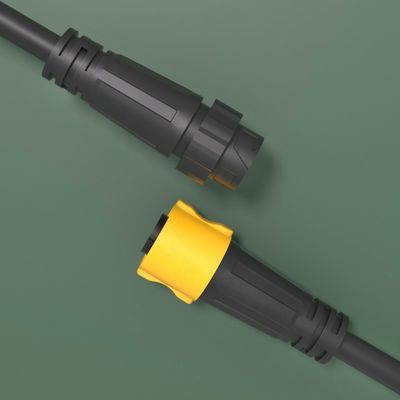

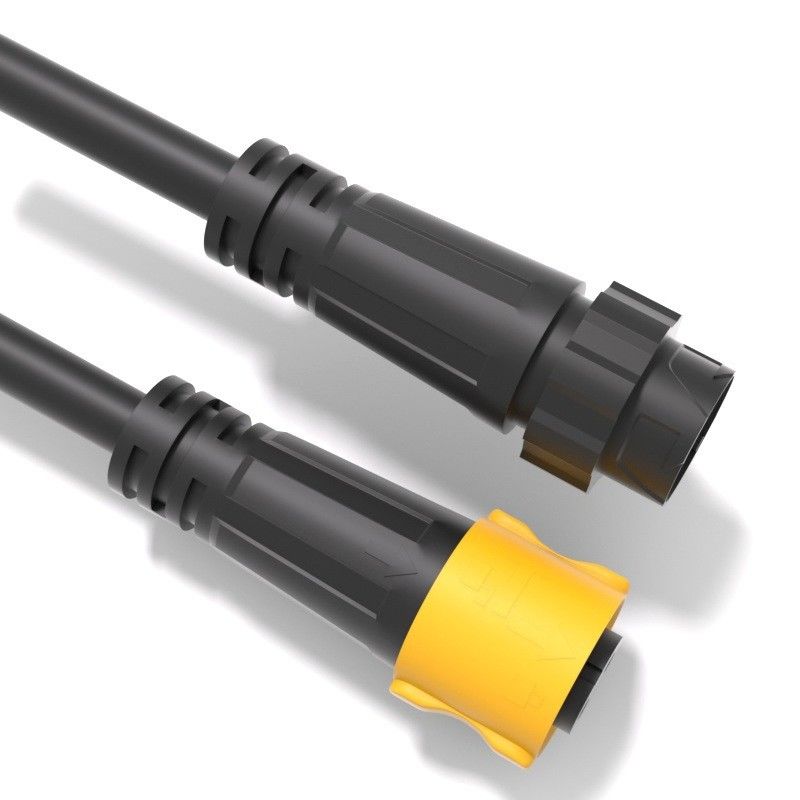

Self Locking IP67 Waterproof Male Female Connector 2-8 Core PA66 Nylon for Breeding Farm Equipment

Brand Name: Cablein
Model Number: CB-P12-MDF11-3P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
P12 Self-locking Male And Female 2-8 Core Connector IP67 Livestock Breeding Farm Breeding Equipment
Application:
Industrial,LED Light
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
250V
Waterproof:
IP68
Length:
Customize
Shell Color:
Black
Highlight:

Self Locking Waterproof Male Female Connector

,

Waterproof Male Female Connector 8 Core

,

IP67 Waterproof Connector 2 Core

Product Description
Self Locking IP67 Waterproof Male Female Connector 2-8 Core
Designed specifically for breeding farm equipment, this connector provides reliable performance in demanding agricultural environments.
Product Specifications
  • Pin Configuration: 2/3/4/5/2+3/6/8 Pins Male Female Connector
  • Current Rating: 8A+3A Maximum
  • Material: PA66 Nylon
  • Connection Type: Screw-less waterproof connector
  • Operating Voltage: 250V
  • Wire Assembly: Soldering or screw fitting
  • UV Resistance: Outdoor rated
  • Cable Jacket OD: 4-8 mm
Technical Datasheet
Pins Number 2Pins 3Pins 4Pins 5Pins 2+3Pins 6Pins 2+4Pins 8Pins
Rated Voltage 250V 250V 250V 250V 250V 250V 250V 250V
Rated Current 8A 8A 5A 5A 8A+3A 5A 8A+3A 5A
Insulation Voltage 3KV 3KV 1KV 1KV 1KV 1KV 1KV 1KV
DC 500V Insulation Resistance 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ
IP Code IP67 IP67 IP67 IP67 IP67 IP67 IP67 IP67
Cable Specifications ≤1.0mm² ≤1.0mm² ≤0.75mm² ≤0.5mm² ≤1+0.3mm² ≤0.2mm² ≤1+0.3mm² ≤0.2mm²
Assembly Cable Diameter 4-8mm 4-8mm 4-8mm 4-8mm 4-8mm 4-8mm 4-8mm 4-8mm
Product Advantages

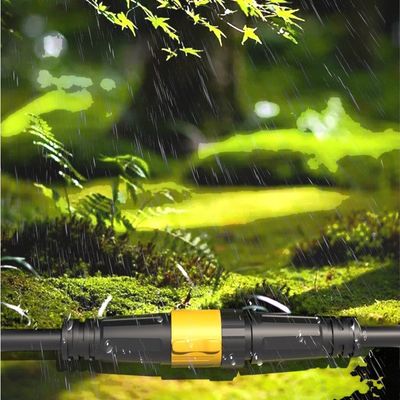

Self Locking IP67 Waterproof Male Female Connector 2-8 Core PA66 Nylon for Breeding Farm Equipment 0
This connector offers reliable waterproof protection with an IP67 rating, ensuring seamless operation even in harsh and wet environments commonly found on farms. The self-locking feature provides a secure connection, reducing the risk of accidental disconnections.
With 2 to 8 cores, it caters to various data and power transmission needs of breeding farm equipment. It is engineered to withstand the demanding conditions of the agricultural setting, guaranteeing durability and long-term performance.
Technical Drawing
Self Locking IP67 Waterproof Male Female Connector 2-8 Core PA66 Nylon for Breeding Farm Equipment 1
Frequently Asked Questions
Q: What type waterproof connectors do you have?
A: We have all series type waterproof connectors. Many types are our private mold, some of our connectors are customized. We focus on LED waterproof connectors, assembly waterproof connectors, over-mold waterproof connectors, T waterproof connectors, Y customized waterproof connectors, livestock industry and poultry industry waterproof connectors, new energy waterproof connectors, and solar system waterproof connectors.
Q: How to buy your products?
A: Contact with our sales team online or by email. Please confirm current rating and number of contacts, assembly style, cable wire gauge, cable length and shipping way.
Q: How to contact with you?
A: Please provide us with your email or phone number, Skype or WhatsApp ID if possible. We have worked in this industry for more than 8 years and have professional sales and R&D teams. We can understand your problem and solve it quickly.
Q: Can I get samples?
A: We are happy to provide samples. You just need to pay the freight cost. Please provide your courier number and detailed address, and we will send you samples immediately.
