M15 2 Pin 3 Pin 4 Pin 5 Pin Waterproof Male Female Connector F-Type Module Socket with 500V Rated Voltage IP67 Waterproof Push Locking

Brand Name: Cablein
Model Number: CB-M15-MDF11-2P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Screw Part:
Metal
Housing:
PA66 / Plastic
Rated Voltage:
500V
Connect Method:
Push Locking Waterproof Connector
Connector Type:
M12 Waterproof Connector
Material:
Nylon
Working Temperature:
-10℃~105℃
Contact Material:
Brass
Highlight:

4 Pin Waterproof Male Female Connector

,

M15 Waterproof Male Female Connector

,

M15 5 Pin Male Female Connector

Product Description

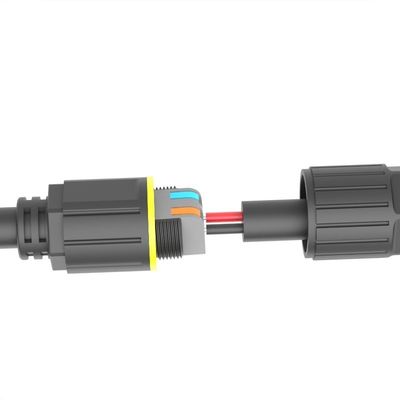

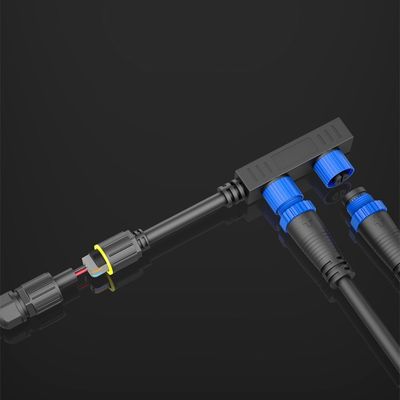

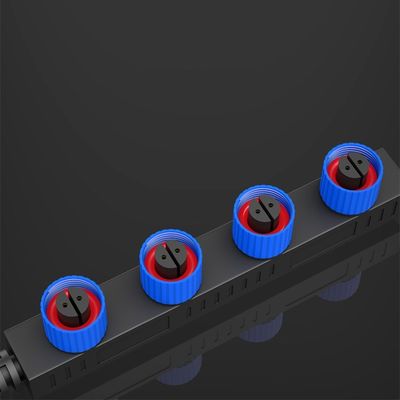

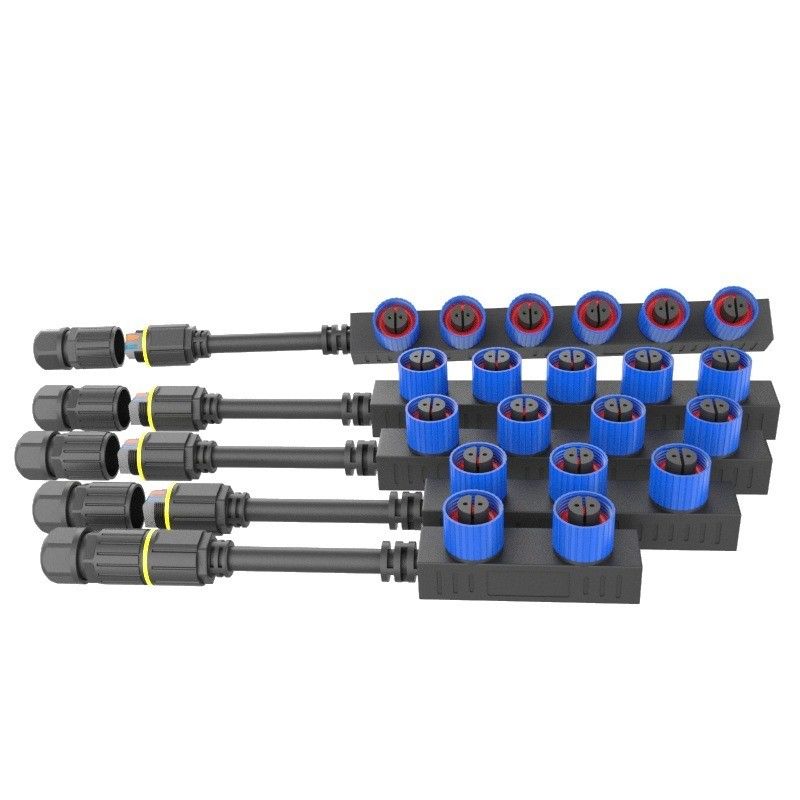

M15 Parallel F-Type Module Socket Waterproof Connector
Professional M15 parallel F-type module socket featuring waterproof construction for reliable performance in demanding environments. Available in 2, 3, 4, and 5 pin configurations with screw-less connection technology.
Product Specifications
Pin Configuration: 2/3/4/5 Pins
Current Rating: 10A Max
Material: PA66 Nylon
Operating Voltage: 500V
Connection Type: Screw-less waterproof
Wire Assembly: Soldering or screw fitting
Cable Diameter: 4.5-9.2 mm
UV Resistance: Pass
Technical Data Sheet
Specification 2 Pins 3 Pins 4 Pins 5 Pins
Rated Voltage 500V 500V 500V 500V
Rated Current 10A 10A 10A 10A
Insulation Voltage 3KV 3KV 3KV 3KV
DC 500V Insulation Resistance 200MΩ 200MΩ 200MΩ 200MΩ
IP Code IP67 IP67 IP67 IP67
Cable Specifications ≤1.0mm² ≤1.0mm² ≤0.75mm² ≤0.5mm²
Assembly Cable Diameter 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm
Product Features
M15 2 Pin 3 Pin 4 Pin 5 Pin Waterproof Male Female Connector F-Type Module Socket with 500V Rated Voltage IP67 Waterproof Push Locking 0
The M15 Parallel Waterproof Connector delivers exceptional reliability for demanding applications. Engineered with advanced waterproof technology, this connector maintains stable performance in outdoor communication systems, marine electronics, and industrial environments exposed to moisture and harsh conditions. The robust construction effectively prevents water ingress, minimizing signal interruption and equipment damage risks.
Technical Drawing
M15 2 Pin 3 Pin 4 Pin 5 Pin Waterproof Male Female Connector F-Type Module Socket with 500V Rated Voltage IP67 Waterproof Push Locking 1
Frequently Asked Questions
What types of waterproof connectors do you offer?
We provide comprehensive waterproof connector solutions including LED connectors, assembly connectors, over-mold connectors, T-connectors, Y-customized connectors, livestock industry connectors, poultry industry connectors, new energy connectors, and solar system connectors. Many feature proprietary molds and custom designs.
How do I purchase your products?
Contact our sales team online or via email with the following specifications:
  • Current rating and number of contacts required
  • Preferred assembly style
  • Cable wire gauge specifications
  • Cable length and shipping preferences
How can I contact your team?
Reach us via email, phone, Skype, or WhatsApp. With over 8 years of industry experience, our professional sales and R&D teams can quickly understand your requirements and provide effective solutions. Please don't hesitate to contact us with any questions.
Are samples available?
Yes, we provide samples upon request. Customers only need to cover freight costs. Please provide your courier account number and detailed shipping address for immediate sample dispatch.
