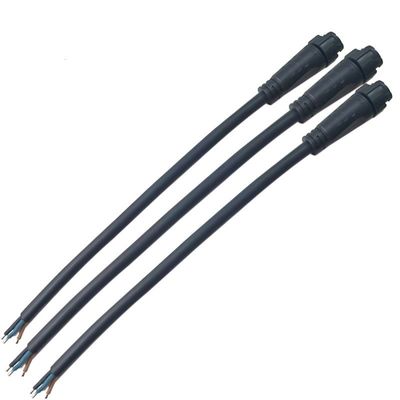

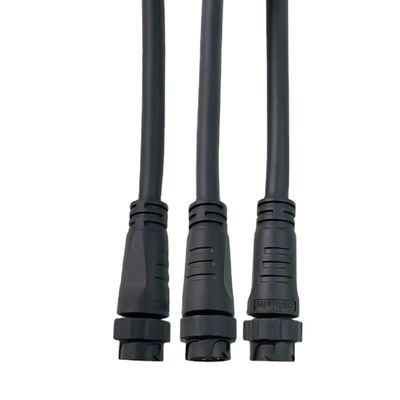

IP68 Waterproof Self Locking Nylon Male Female Connector for Floodlight Line Light

Brand Name: Cablein
Model Number: CB-M16-MDF11-4P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Waterproof:
IP68
Working Temperature:
-10℃~105℃
Keyword:
Waterproof Male Female Connector
Gender:
Male And Female
Color:
Black
Cable Length:
Customized
Rated Current:
10A
Lead Time:
10-15 Days
Highlight:

Nylon Male Female Cable Connectors

,

Male Female Cable Connectors Waterproof

Product Description
M16 Self-Locking Nylon Waterproof Male Female Connector
Product Specifications

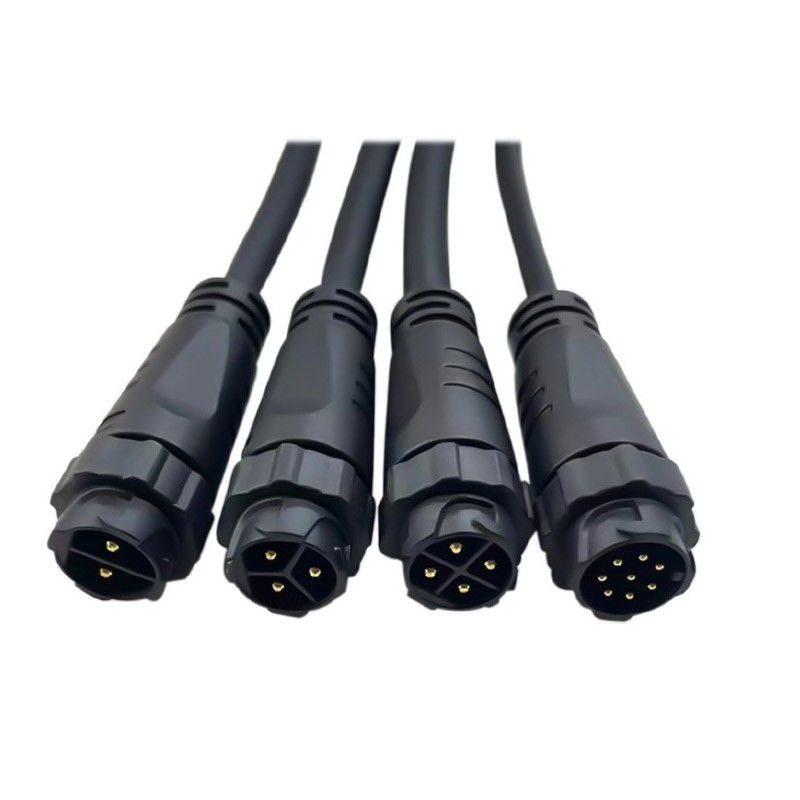

Pin Configuration 2/3/4/8 Pins Male Female Connector
Current Rating 15A Max
Material PA66 Nylon
Connection Type Screw-less waterproof connector
Operating Voltage 500V
Assembly Method Soldering or screw fitting
UV Resistance Outdoor rated
Cable Jacket OD 4.5-9.2 mm
Technical Datasheet
Specification 2Pins 3Pins 4Pins 8Pins
Rated Voltage 500V 500V 500V 110V
Rated Current 15A 15A 15A 5A
Insulation Voltage 3KV 3KV 1KV 1KV
DC 500V Insulation Resistance 500MΩ 500MΩ 500MΩ 500MΩ
IP Code IP67 IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.0mm² ≤0.75mm²
Assembly Cable Diameter 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm
Product Advantages
IP68 Waterproof Self Locking Nylon Male Female Connector for Floodlight Line Light 0
  • Waterproof design ensures reliable performance in harsh outdoor conditions
  • Self-locking mechanism provides secure and stable connections
  • Durable PA66 nylon construction resistant to wear and tear

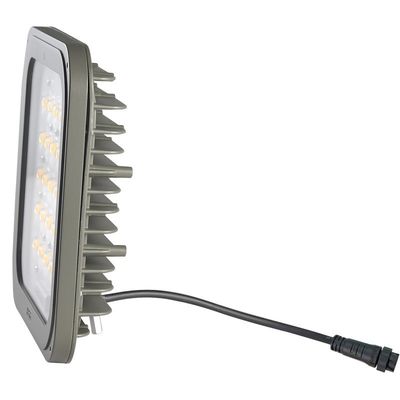

  • Simplifies installation process for floodlight and line light systems
  • Excellent electrical conductivity minimizes signal loss
  • Suitable for both professional installations and DIY projects
Technical Drawing
IP68 Waterproof Self Locking Nylon Male Female Connector for Floodlight Line Light 1
Frequently Asked Questions
What type of waterproof connectors do you have?
We offer a comprehensive range of waterproof connectors including P16 Self-Locking Injection Waterproof Connectors, Assembly waterproof connectors, Over-mold waterproof connectors, T connectors, Y customized connectors, and specialized connectors for livestock/poultry industries and new energy/solar systems. Many feature our private molds and custom designs.
How to buy your products?
Contact our sales team online or by email. Please provide: current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.
How to contact with you?
Please provide your email, phone number, Skype or WhatsApp ID. Our professional sales and R&D team with over 8 years of industry experience is ready to assist with any questions or technical support needs.
Can I get samples?
Yes, we provide samples. You only need to pay the freight cost. Please provide your courier account number and detailed address for immediate sample shipment.
