Waterproof Male Female Connector
>
M20 Connector IP67 Waterproof 25A Current Rating PA66 Nylon Male Female Connector for Industrial Heating
All Category

Waterproof Circular Connector

Waterproof Male Female Connector

Waterproof Power Connector

Waterproof Cable Connector

Waterproof Signal Connector

Waterproof Data Connector

RJ45 Waterproof Connector

Waterproof Panel Mount Connector

Waterproof LED Connectors

Power Plug
Contact Us
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contact Now
name
  • name
  • name
  • name
  • name
  • name

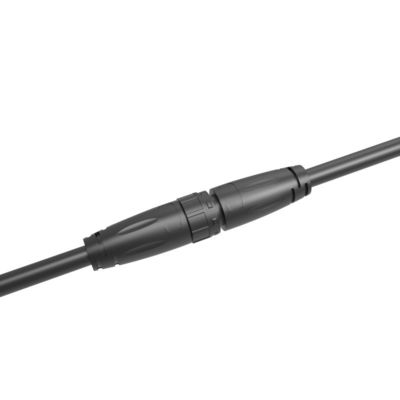

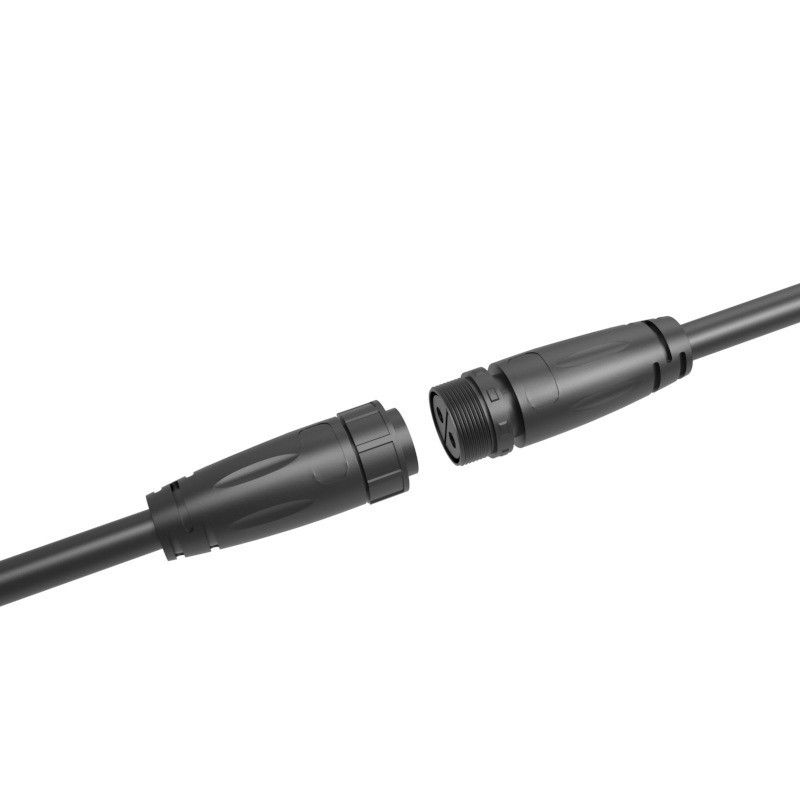

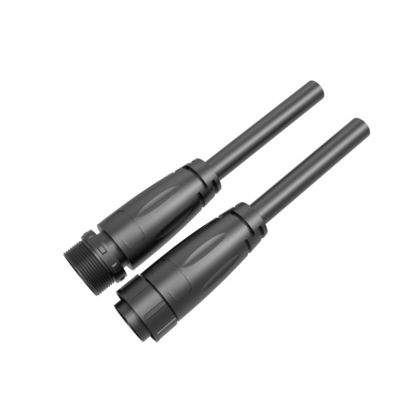

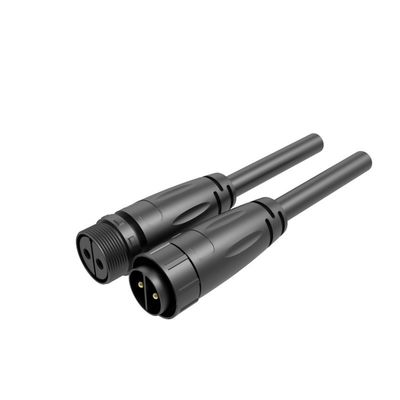

M20 Connector IP67 Waterproof 25A Current Rating PA66 Nylon Male Female Connector for Industrial Heating

Brand Name: Cablein
Model Number: CB-M20-MDF11-2P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Protection Rating:
IP67
Package:
Carton
Wiring:
Soldering
Waterproof Rating:
IP67
Number Of Pin:
3Pin
Ip Rating:
IP67 / IP68
Cable Length:
Per Your Requirement
Highlight:

Nylon Male And Female Connector

,

M20 Male And Female Connector

Product Description
M20 2-Core Nylon Male and Female Connector for Industrial Heating Equipment
Product Specifications
Pin Configuration: 2/3/4/2+2/5/2+3/7 Pins
Current Rating: 25A Max
Material: PA66 Nylon
Connection Type: Screw-less waterproof connector
Operating Voltage: 500V
Assembly Method: Soldering or screw fitting
UV Resistance: Outdoor rated
Cable Jacket OD: 5.5-11.5 mm
Technical Datasheet
Pins Number 2Pins 3Pins 4Pins 2+2Pins 5Pin 2+3Pin 7Pin
Rated Voltage 500V 500V 500V 500V 500V 500V 500V
Rated Current 25A 25A 25A 25A+8A 20A 25A+8A 20A
Insulation Voltage 3KV 3KV 3KV 3KV 2KV 2KV 2KV
DC 500V Insulation Resistance 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ
IP CODE IP67 IP67 IP67 IP67 IP67 IP67 IP67
Cable Specifications ≤2.5mm² ≤2.5mm² ≤2.0mm² ≤2.5+0.3mm² ≤0.3mm² ≤2.5+0.3mm² ≤0.3mm²
Assembly Cable Diameter 5.5-11.5mm 5.5-11.5mm 5.5-11.5mm 5.5-11.5mm 5.5-11.5mm 5.5-11.5mm 5.5-11.5mm
Product Features and Applications
M20 Connector IP67 Waterproof 25A Current Rating PA66 Nylon Male Female Connector for Industrial Heating 0
The M20 Male and Female Nylon 2-Core Connector is engineered specifically for industrial heating equipment applications. Manufactured from high-quality PA66 nylon material, this connector delivers exceptional heat resistance, durability, and performance in demanding industrial environments.
The 2-core design ensures efficient power transmission while the screw-less waterproof connection provides reliable operation and protection against environmental factors. The M20 size specification guarantees a secure fit that prevents power leakage and connection failures.
Ideal for industrial heating systems, dehumidifiers, pneumatic fans, and various manufacturing processes, this connector maintains operational efficiency and safety standards across diverse industrial applications.
Product Drawing
M20 Connector IP67 Waterproof 25A Current Rating PA66 Nylon Male Female Connector for Industrial Heating 1
Frequently Asked Questions
What type of waterproof connectors do you offer?
We provide a comprehensive range of waterproof connectors including P16 Self-Locking Injection Waterproof Connectors, assembly waterproof connectors, over-mold connectors, T-connectors, Y-customized connectors, and specialized connectors for livestock, poultry, and new energy applications. Many of our connectors feature proprietary molds and custom designs.
How do I purchase your products?
Contact our sales team online or via email with the following specifications:
  • Current rating and number of contacts required
  • Preferred assembly style
  • Cable wire gauge specifications
  • Cable length and shipping preferences
How can I contact you?
Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D teams can quickly understand your requirements and provide effective solutions. We welcome any inquiries and are ready to assist.
Can I request samples?
Yes, we are pleased to provide samples. Customers are responsible for freight costs only. Please share your courier account details and delivery address, and we will promptly dispatch the samples.
Tags:

Male Female Cable Connectors

Male Female Waterproof Connectors

Male Female Power Connector
