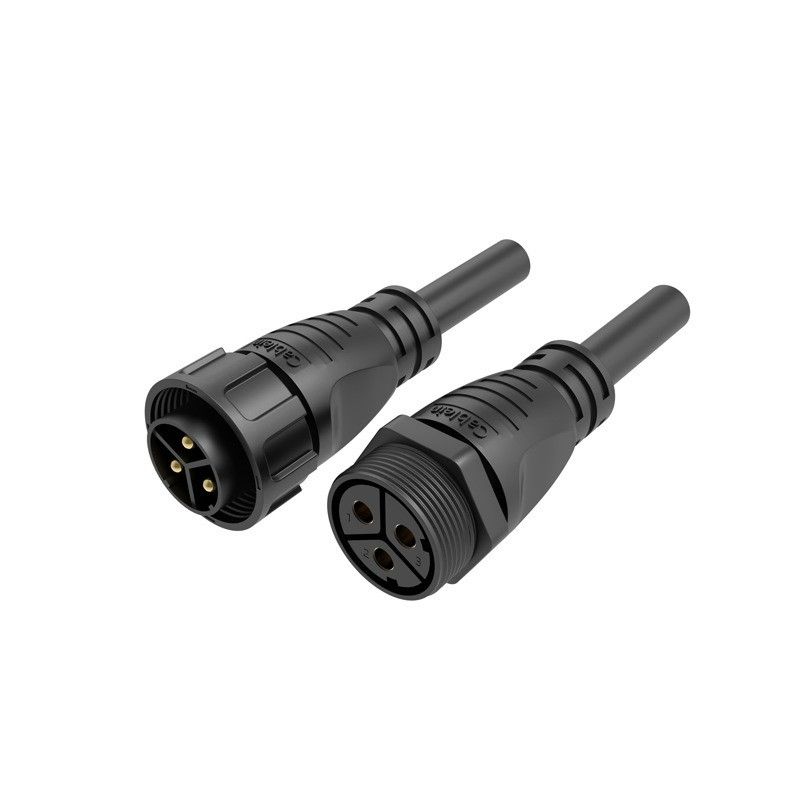

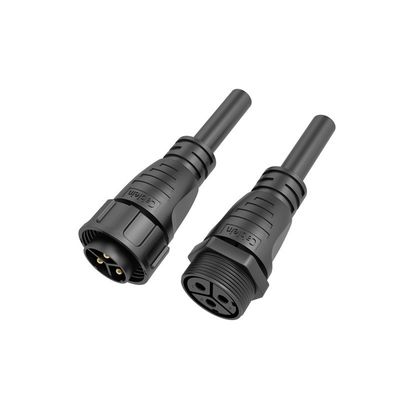

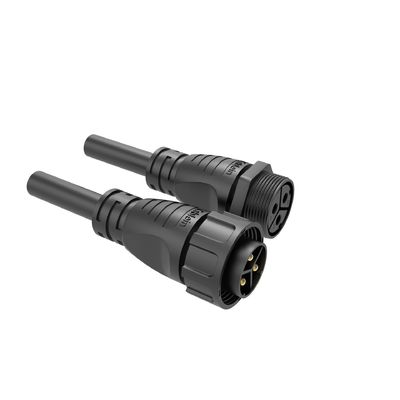

M25 IP68 Waterproof Male Female Connector with 32A Current Rating and PA66 Nylon Material

Brand Name: Cablein
Model Number: CB-M25-MDM11-3P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
M25 Three-Core Threaded Plastic Injection-Molded Waterproof Male Female Connector 32A
Temperature Range:
-40-105℃
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
500V
Waterproof:
IP68
Highlight:

3 Core Waterproof Male Female Connector

,

M25 Waterproof Male Female Connector

,

M25 Waterproof Connector 32A

Product Description
M25 Waterproof Connector - Three-Core Threaded Plastic Injection-Molded 32A
This high-quality M25 waterproof connector features a precision plastic injection-molded design for durability and reliable performance in demanding environments.
Product Specifications
Specification 2 Pins 3 Pins 4 Pins 5 Pins
Rated Voltage 500V 500V 500V 500V
Rated Current 30A 30A 30A 30A
Insulation Voltage 3KV 3KV 3KV 2KV
DC 500V Insulation Resistance 500MΩ 500MΩ 500MΩ 500MΩ
IP Code IP67 IP67 IP67 IP67
Cable Specifications ≤4.0mm² ≤4.0mm² ≤2.5mm² ≤1.5mm²
Assembly Cable Diameter 6-14mm 6-14mm 6-14mm 6-14mm
Key Features
  • Material: PA66 Nylon for superior durability
  • Current Rating: 30A maximum capacity
  • Operating Voltage: 500V
  • Connection Type: Screw-less waterproof design
  • Assembly Options: Soldering or screw fitting
  • Cable Jacket OD: 6-14 mm
  • Outdoor UV Resistance: Certified pass
  • IP67 rated for complete waterproof protection
Product Overview
M25 IP68 Waterproof Male Female Connector with 32A Current Rating and PA66 Nylon Material 0

The M25 Waterproof Male Female Connector Three-Core Threaded Plastic Injection-Molded 32A delivers reliable, watertight connections for various demanding applications. Engineered with precision plastic injection molding, this connector ensures exceptional durability and long-lasting performance.

The three-core design enables efficient power transmission, making it ideal for industrial electrical systems. The threaded connection provides a secure fit that prevents loosening or accidental disconnections, while the IP67 rating guarantees protection against water ingress in outdoor, industrial, and marine environments.

Technical Drawing
M25 IP68 Waterproof Male Female Connector with 32A Current Rating and PA66 Nylon Material 1
Frequently Asked Questions
What type of waterproof connectors do you have?
We offer a comprehensive range of waterproof connectors including P16 Self-Locking Injection Waterproof Connectors, assembly waterproof connectors, over-mold connectors, T and Y customized connectors, and specialized connectors for livestock, poultry, new energy, and solar system applications. Many feature our private mold designs with custom options available.
How to buy your products?
Contact our sales team online or by email. Please provide: current rating and number of contacts, assembly style preference, cable wire gauge specifications, cable length requirements, and preferred shipping method.
How to contact with you?
Please provide your email, phone number, Skype, or WhatsApp ID. Our professional sales and R&D team brings over 8 years of industry experience to quickly understand and solve your technical requirements.
Can I get samples?
Yes, we're pleased to provide samples. You only need to cover the freight cost. Please provide your courier account number and detailed shipping address for immediate sample dispatch.
