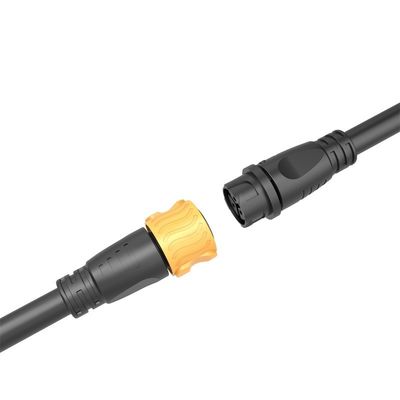

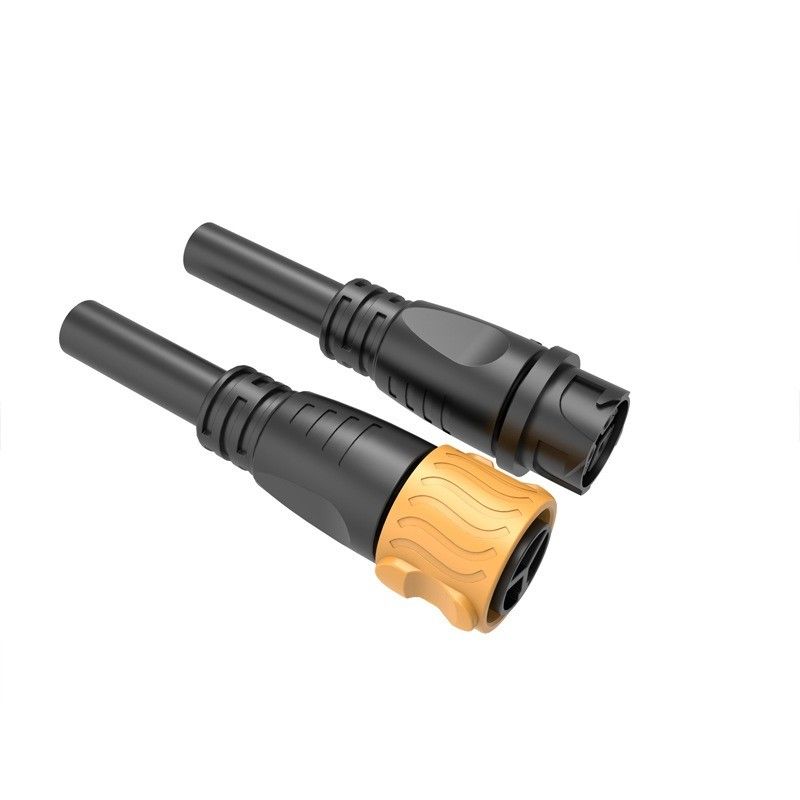

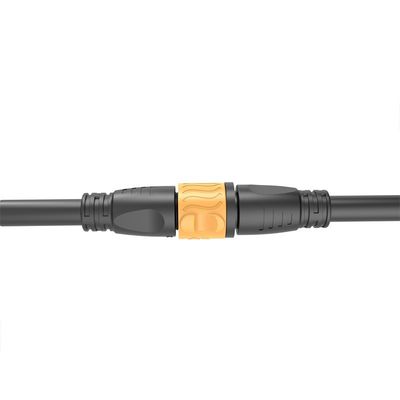

P25 Three-Core IP68 Waterproof Male Female Connector with 25A Rated Current and PA66 Nylon Material for Micro Inverter Motor Box

All Category

Waterproof Male Female Connector

Waterproof Panel Mount Connector

Power Plug

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contact Now

P25 Three-Core IP68 Waterproof Male Female Connector with 25A Rated Current and PA66 Nylon Material for Micro Inverter Motor Box

Brand Name:	Cablein
Model Number:	CB-P25-MDF11-3P-X
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Name:

P25 Three-Core Self-Locking Injection-Molded Waterproof Connector Micro Inverter Connector Motor Box

Temperature Range:

-40-105℃

Material:

PA66 Nylon

Insertion Life:

1000 Times

Voltage:

Waterproof:

Highlight:

P25 Waterproof Male Female Connector

Three Core Waterproof Male Female Connector

Product Description

P25 Three-Core Waterproof Male Female Connector

This self-locking injection-molded connector is specifically designed for micro inverter motor box applications, offering exceptional waterproof protection and reliable performance in harsh environments.

Product Specifications

Pin Configuration: 2/3/4/2+2/5/2+3/7 Pins Male Female Connector
Current Rating: 25A Max
Material: PA66 Nylon
Connection Type: Screw-less waterproof connector
Operating Voltage: 300V
Assembly Method: Soldering or screw fitting
Outdoor UV Resistance: Pass
Cable Jacket OD: 6-12mm

Technical Datasheet

Parameter	3 Pins	3+9 Pins
Rated Voltage	300V	300V
Rated Current	25A	25A +5A
Insulation Resistance	100MΩ	100MΩ
IP Code	IP67	IP67
Cable Specifications	≤2.5mm²	≤1.5+0.3mm²
Assembly Cable Diameter	6-12mm	6-12mm

Product Features

Exceptional waterproof protection for harsh and wet environments
Self-locking mechanism ensures secure connections and prevents accidental disconnections
Injection-molded construction guarantees durability and precision
Three-core design enables efficient power and signal transmission
Ideal for micro inverter motor box applications

Product Drawing

Frequently Asked Questions

What type of waterproof connectors do you have?

We offer a comprehensive range of waterproof connectors including P16 self-locking injection connectors, assembly waterproof connectors, over-mold connectors, T-connectors, Y-customized connectors, and specialized connectors for livestock/poultry industries and new energy applications including solar systems.

How to buy your products?

Contact our sales team online or by email. Please provide: current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.

How to contact you?

Please provide your email, phone number, Skype, or WhatsApp ID. Our professional sales and R&D team with over 8 years of industry experience is ready to assist you with any questions or requirements.

Can I get samples?

Yes, we provide samples. You only need to pay the freight cost. Please provide your courier account number and detailed shipping address for immediate sample dispatch.
