M16 IP68 Waterproof Male Female Connector with 15A Rated Current and Y-Type One Out Two Parallel Design for Micro Inverters

Brand Name: Cablein
Model Number: CB-M16-MDM11-4P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Cable Od:
1500mating Cycles
Cable Diameter:
12mm Max
Waterproof Level:
IP68
Rated Current:
10A Max
Item:
Waterproof Underground Cable Connector
Cable Length:
Per Your Requirement
Lead Time:
10-15 Days
Highlight:

M16 Male Female Cable Connectors

,

Waterproof Male Female Cable Connectors

Product Description

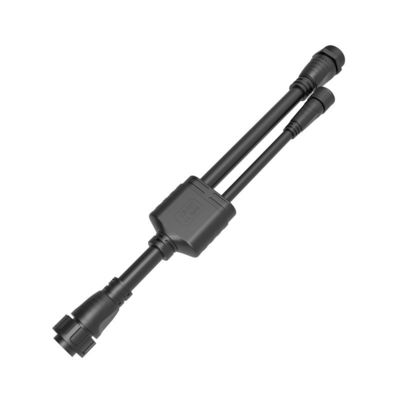

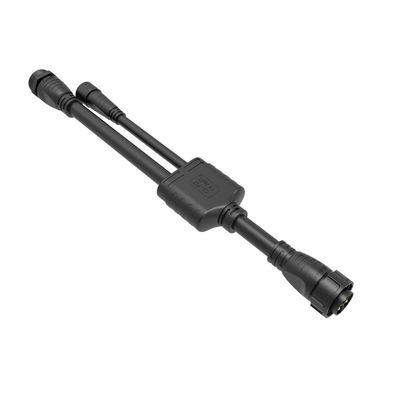

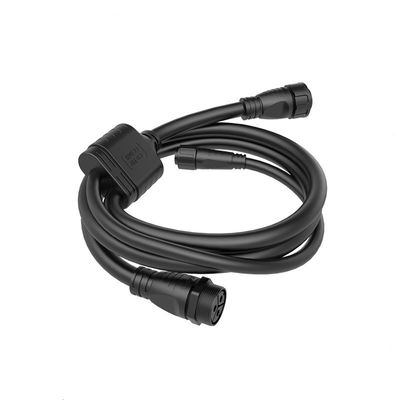

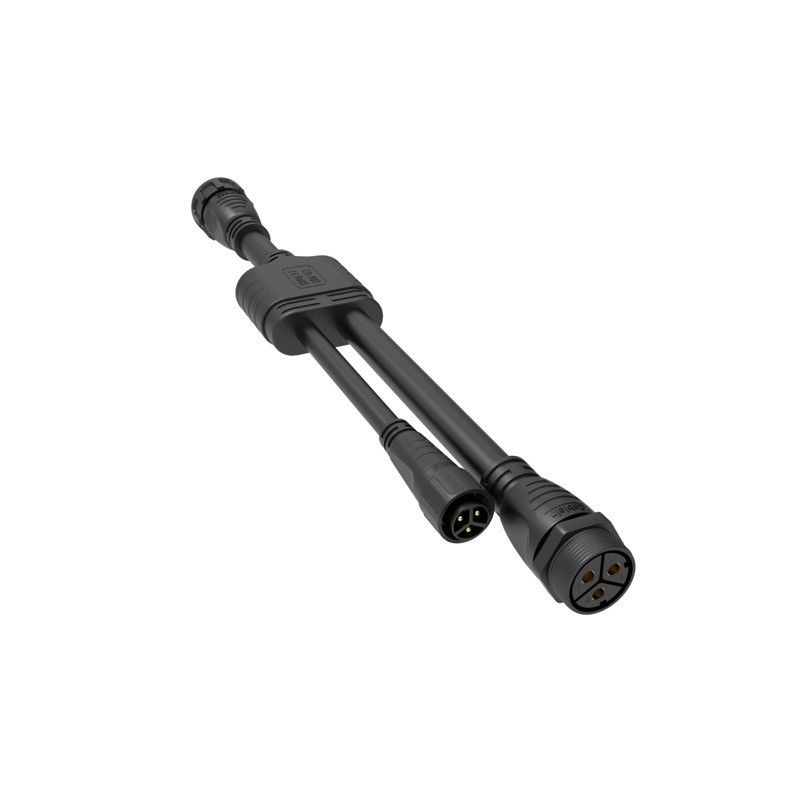

M16 Waterproof Underground Male Female Cable Connectors For Micro Inverter
Product Overview

The M16 Waterproof Male Female Connector Y-Type features a one-out-two parallel design specifically engineered for micro inverter applications, providing reliable performance in challenging environmental conditions.

Key Specifications
  • Pin Configuration: 2/3/4/2+2/5/2+3/7 Pins Male Female Connector
  • Current Rating: 15A Maximum
  • Material: PA66 Nylon
  • Connection Method: Screw-less type waterproof connector
  • Operating Voltage: 500V
  • Assembly Wire: Soldering or screw fitting
  • Outdoor UV Resistance: Certified Pass
  • Cable Jacket OD: 4.5-9.2mm
Technical Datasheet
Specification 2 Pins 3 Pins 4 Pins
Rated Voltage 500V 500V 500V
Rated Current 15A 15A 15A
Insulation Voltage 500MΩ 500MΩ 500MΩ
IP Code IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.5mm²
Assembly Cable Diameter 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm
Product Advantages
M16 IP68 Waterproof Male Female Connector with 15A Rated Current and Y-Type One Out Two Parallel Design for Micro Inverters 0

The M16 Waterproof Male Female Connector Y-Type delivers exceptional performance for micro inverter applications with its superior waterproof capabilities that ensure reliable operation in demanding environmental conditions.

The innovative one-out-two parallel design offers enhanced flexibility and convenience for efficient power distribution. Precision engineering guarantees secure and stable connections, minimizing the risk of power interruptions or malfunctions.

This connector is an ideal solution for both residential and commercial micro inverter installations, featuring simplified installation processes for improved efficiency.

Technical Drawing
M16 IP68 Waterproof Male Female Connector with 15A Rated Current and Y-Type One Out Two Parallel Design for Micro Inverters 1
Frequently Asked Questions
What type of waterproof connectors do you have?

We offer comprehensive series of waterproof connectors, including many proprietary mold designs and custom solutions. Our product range includes P16 Self-Locking Injection Waterproof Connectors for plant growth lights, assembly waterproof connectors, over-mold waterproof connectors, T-type connectors, Y-type custom waterproof connectors, livestock and poultry industry connectors, and specialized connectors for new energy and solar systems.

How to buy your products?

Contact our sales team online or via email. Please provide the following specifications: current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.

How to contact with you?

Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D teams can quickly understand and resolve your technical requirements. Feel free to reach out with any questions.

Can I get samples?

We are pleased to provide samples. You only need to cover the freight cost. Please provide your courier account number and detailed shipping address, and we will dispatch samples immediately.
