Waterproof Male Female Connector

IP67 Waterproof Self-Locking Male Female Connector with Three-Core Power Cord for Inverters

All Category

Waterproof Male Female Connector

Waterproof Panel Mount Connector

Power Plug

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contact Now

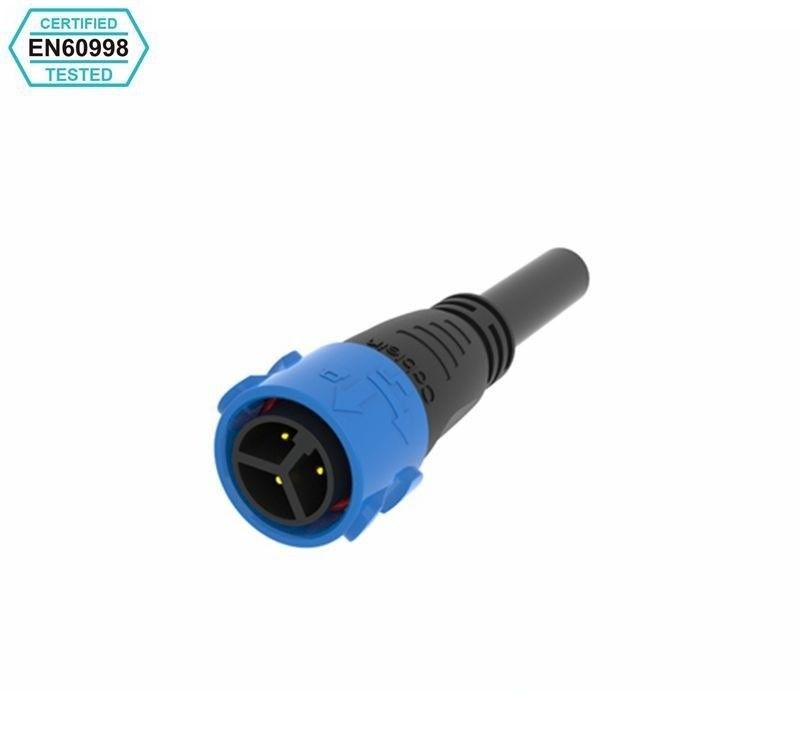

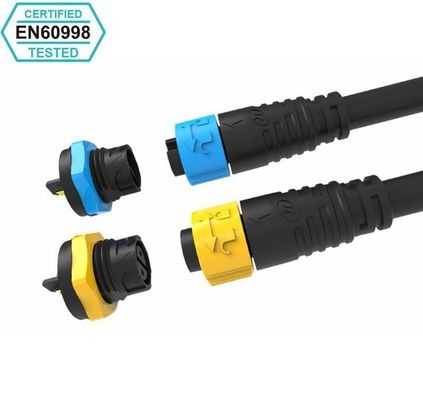

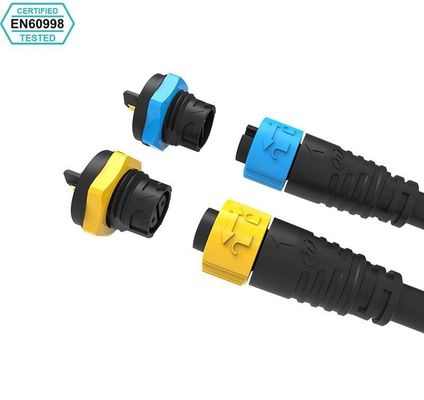

IP67 Waterproof Self-Locking Male Female Connector with Three-Core Power Cord for Inverters

Brand Name:	Cablein
Model Number:	CB-Q16-FFF01-2P
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Color:

Black Or OEM Color

Length:

Per Your Requirement

Waterproof Degree:

Shell Color:

Black

Application:

Power,Automotive,Audio & Video

Operating Voltage:

Package:

Carton

Highlight:

Waterproof Male Female Connector Self Locking

IP67 Waterproof Male Female Connector

Product Description

IP67 Waterproof Male Female Connector Self Locking Inverter Three Core Power Cord

Product Overview

Self-locking waterproof connector with three-core power cord designed for inverter applications, featuring secure connections in demanding environments.

Technical Specifications

Pin Configuration: 2/3/4/2+2/5/2+3/7 Pins Male Female Connector
Current Rating: 15A Maximum
Material: PA66 Nylon
Connection Type: Screw-less waterproof connector
Operating Voltage: 300V
Wire Assembly: Soldering or screw fitting
UV Resistance: Outdoor rated
Cable Jacket OD: 4-10mm

Performance Specifications

Parameter	2 Pins	3 Pins	4 Pins
Rated Voltage	500V	500V	500V
Rated Current	15A	15A	15A
Insulation Resistance	500MΩ	500MΩ	500MΩ
IP Rating	IP67	IP67	IP67
Cable Specifications	≤1.5mm²	≤1.5mm²	≤1.5mm²
Assembly Cable Diameter	4-10mm	4-10mm	4-10mm

Product Features

This revolutionary power cord features a self-locking mechanism and IP67 waterproof rating, ensuring secure and reliable connections in wet or challenging environments. The three-core design provides stable and efficient power transmission, making it ideal for inverter applications. Enhanced durability and protection make this connector suitable for outdoor settings, industrial facilities, and critical power connectivity applications.

Technical Drawing

Frequently Asked Questions

What type of waterproof connectors do you have?

We offer comprehensive waterproof connector series including private mold and customized solutions. Our product range includes P16 Self-Locking Injection Waterproof Connectors, Assembly waterproof connectors, Over-mold connectors, T-connectors, Y-connectors, and specialized connectors for livestock/poultry industries, new energy applications, and solar systems.

How to buy your products?

Contact our sales team online or by email. Please provide: current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.

How to contact with you?

Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D team can quickly understand and solve your technical requirements.

Can I get samples?

Yes, we provide samples with freight cost coverage. Please provide your courier account number and detailed shipping address for immediate sample dispatch.
