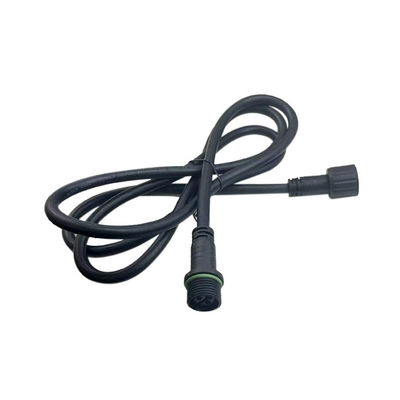

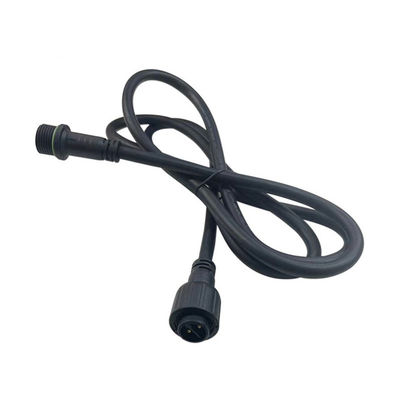

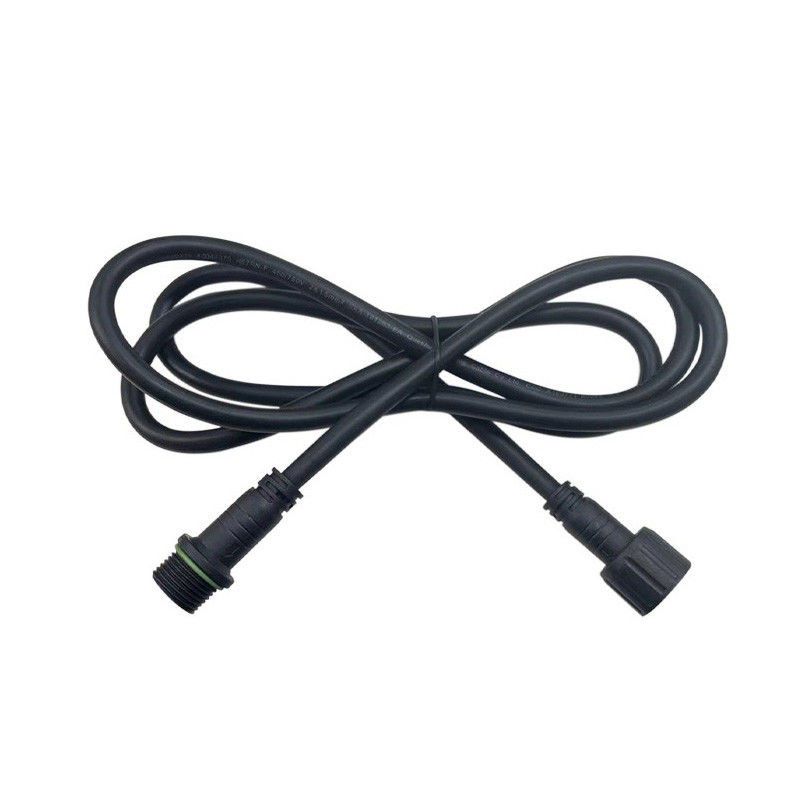

M18 Waterproof Male Female Connector with IP68 Waterproof Rating, 15A Current Capacity, and PA66 Nylon Material for Outdoor Lighting

All Category

Waterproof Male Female Connector

Waterproof Panel Mount Connector

Power Plug

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contact Now

M18 Waterproof Male Female Connector with IP68 Waterproof Rating, 15A Current Capacity, and PA66 Nylon Material for Outdoor Lighting

Brand Name:	Cablein
Model Number:	CB-M18-MDF12-3P-X
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Application:

Solar Panel

Connector Name:

M12 4Pin Power Connector

Insulation Resistance:

≥100MΩ

Package:

Carton

Connector Connector Type:

Underground Cable Connector

Waterproof Level:

Assembly Wire:

Soldering Or Screw Fitting

Highlight:

LED Male Female Connector Waterproof

M18 Male Female Connector Waterproof

Product Description

M18 LED Male Female Connector Waterproof For Outdoor Lighting Livestock Farming Plant

Product Specifications

Specification	Details
Pin Configuration	2/3/4 Male Female Connector
Current Rating	15A Max
Material	PA66 Nylon
Connection Method	Screw-less type waterproof connector
Operating Voltage	500V
Assembly Wire	Soldering or screw fitting
Outdoor UV Resistance	Pass
Cable Jacket OD	4.5-9.2mm

Technical Datasheet

Parameter	2 Pins	3 Pins	4 Pins
Rated Voltage	500V	500V	500V
Rated Current	15A	15A	15A
Insulation Voltage	500MΩ	500MΩ	500MΩ
IP Code	IP67	IP67	IP67
Cable Specifications	≤1.5mm²	≤1.5mm²	≤1.5mm²
Assembly Cable Diameter	4.5-9.2mm	4.5-9.2mm	4.5-9.2mm

Product Advantages

In outdoor lighting, livestock farming, and plant operations, reliable waterproof connectors are essential. The M18 Waterproof Male Female Connector delivers superior performance and protection in challenging outdoor environments.

Engineered with robust waterproof features to withstand rain, snow, and excessive moisture
Ensures consistent power supply for outdoor lighting safety and visibility
Ideal for livestock farming applications including automated feeding systems and monitoring sensors
Protects against moisture and dirt to minimize electrical faults
Essential for plant functions in greenhouses and hydroponic setups
Secures connections for lighting fixtures, sensors, and irrigation systems

Applications

This connector is designed for demanding applications including outdoor lighting systems, livestock farming equipment, agricultural operations, and industrial plant functions where reliable waterproof connections are critical.

Frequently Asked Questions

What type of waterproof connectors do you have?

We offer a comprehensive range of waterproof connectors including P16 Self-Locking Injection Waterproof Connectors, Assembly waterproof connectors, Over-mold connectors, T connectors, Y customized connectors, Livestock industry connectors, Poultry industry connectors, New Energy Waterproof Connectors, and Solar System waterproof connectors. Many are custom private molds designed for specific applications.

How to buy your products?

Contact our sales team online or by email. Please provide: Current Rating and Number of Contacts, Assembly style, Cable Wire gauge, Cable Length, and preferred shipping method.

How to contact with you?

Please provide your email, phone number, Skype or WhatsApp ID. Our professional sales and R&D team has over 8 years of industry experience and can quickly address your technical requirements and questions.

Can I get samples?

Yes, we provide samples. You only need to pay the freight cost. Please provide your courier account number and detailed shipping address for immediate sample dispatch.
