LP20 Push Plug Waterproof Power Connector with IP67 Protection, 20A Current Rating, and Screw-less Type IEC Standard

Brand Name:	Cablein
Model Number:	CB-LP20-2P
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Sample:

Type:

Straight Plug Waterproof Connector

Gender:

Female,Male

Connector Color:

Black/White/Grey

Protection Level:

Standard:

IEC Standard

Coupling:

Threaded

Contacts No:

2-16pins

Highlight:

5 Core Waterproof Power Connector

IEC Waterproof Power Connector

Product Description

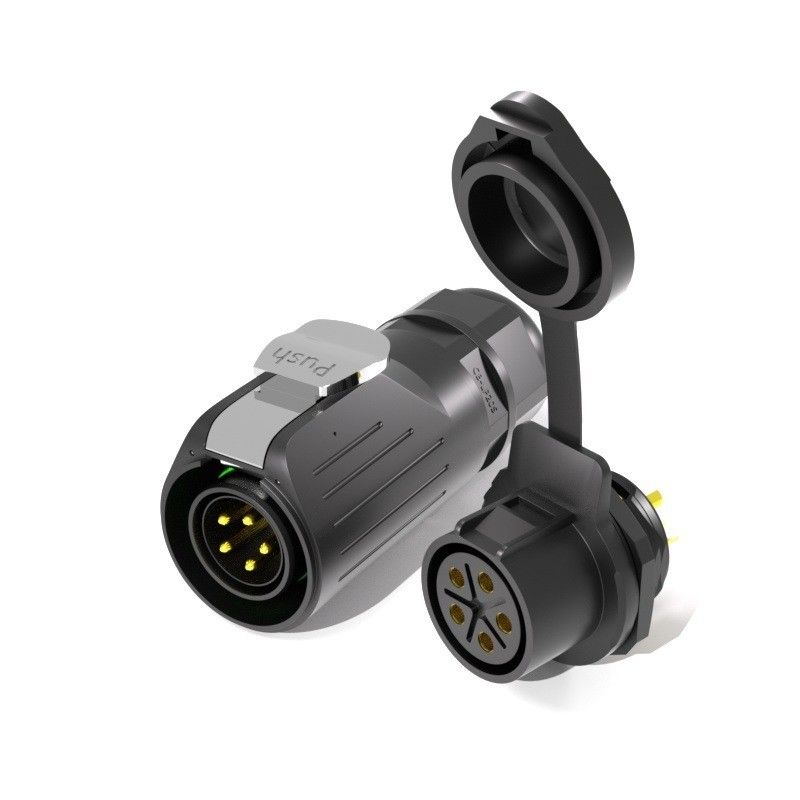

LP20 Push Plug 5 Core Waterproof Power Connector

Industrial-grade waterproof power connector with screw-less connection technology, designed for torque sensor applications and outdoor environments.

Product Specifications

Pin Configurations: 2/3/4/5/7/9/12 Male/Female Connector
Current Rating: 20A Maximum
Material: PA66 Nylon
Connection Method: Screw-less type waterproof connector
Operating Voltage: 500V
Wire Assembly: Soldering or screw fitting
Outdoor UV Resistance: Certified Pass
Cable Jacket OD: 4.5-9.2mm

Technical Datasheet

Part No.	CB-LP20-2P	CB-LP20-3P	CB-LP20-4P	CB-LP20-5P	CB-LP20-7P	CB-LP20-9P	CB-LP20-12P
Pins	2 Pin	3 Pin	4 Pin	5 Pin	7 Pin	9 Pin	12 Pin
Wire Connection - Bonding	✓	✓	✓	✓	✓	✓	✓
Wire Connection - Locking	✓	✓	✓	✓	*	*	*
Contact Member - Bonding	φ2.7*2	φ2.7*3	φ2.7*4	φ1.8*5	φ1.8*7	φ1.0*9	φ1.0*12
Contact Member - Locking	φ2.4*2	φ2.4*3	φ2.4*4	φ1.8*5	*	*	*

Applicable Wire Gauge: 2.5-4 mm² (14-12 AWG) / 1-1.5 mm² (18-16 AWG) / 0.34-0.75 mm² (22-20 AWG)
Rated Current: 20A / 10A / 5A
Rated Voltage: 500V AC / 500V AC / 250V AC
Insulation Voltage: 2500V AC / 2000V AC / 1500V AC
Contact Impedance: < 1 mΩ / < 3 mΩ / < 5 mΩ
Temperature Rise: Various ratings based on current and temperature thresholds
Insulation Resistance: ≥ 1000 MΩ
Mechanical Life: ≥ 1900 Cycles
Ambient Temperature: -40°C to +85°C
High Temperature Aging: 85°C / 168 hours

Product Advantages

The LP20 Push-Plug 5-Core Metal and Plastic Power Torque Sensor Waterproof Power Connector delivers exceptional performance with superior waterproof capabilities. Designed to withstand moisture, rain, and submersion environments, this connector ensures reliable power transmission in demanding industrial applications.

Applications

Ideal for torque sensor systems, outdoor equipment, industrial machinery, and applications requiring reliable waterproof power connections in challenging environments.

Frequently Asked Questions

What type of waterproof connectors do you have?

We offer comprehensive waterproof connector series including private mold and customized solutions. Our portfolio includes P16 Self-Locking Injection Waterproof Connectors, Assembly waterproof connectors, Over-mold connectors, T-connectors, Y-customized connectors, and specialized solutions for livestock, poultry, new energy, and solar system applications.

How to buy your products?

Contact our sales team online or via email. Please provide: current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.

How to contact with you?

Please provide your email, phone number, Skype, or WhatsApp ID. Our experienced team with over 8 years in the industry can quickly address your technical requirements and provide professional support.

Can I get samples?

Yes, we provide samples with freight cost coverage. Please share your courier account details and delivery address for immediate sample dispatch.
