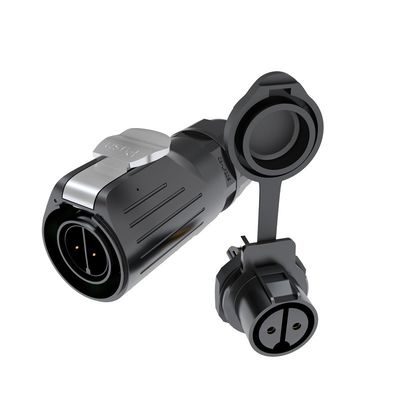

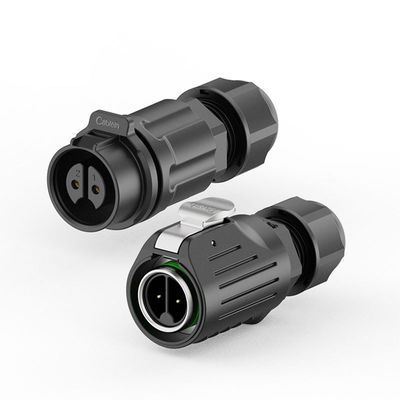

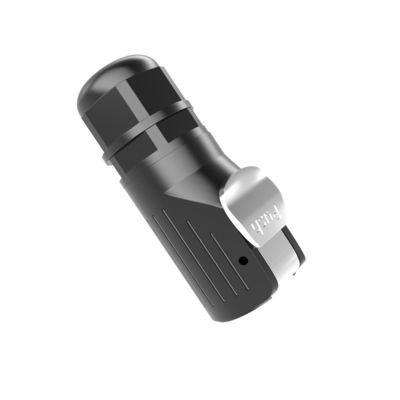

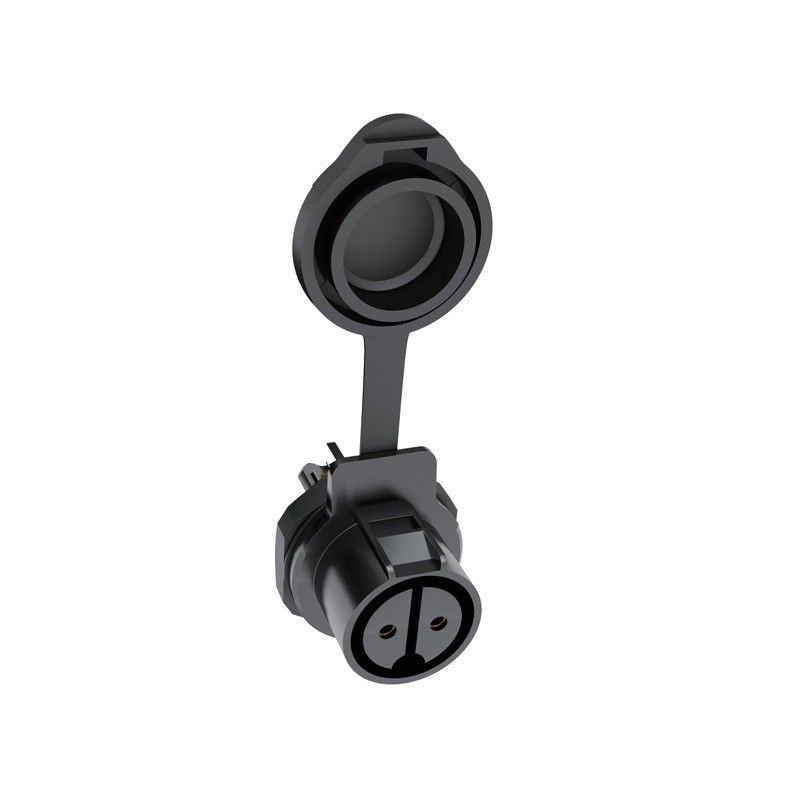

Screw Threaded Waterproof Power Connector with PA66 Nylon Material and 400V Operating Voltage for Wire-To-Board Applications

Brand Name: Cablein
Model Number: CB-LP16-2P
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Connector Size:
Customized
Connector Style:
Straight
Connection Mode:
Screw Threaded
Connector Locking System:
Screw
Durability:
≥1000 Times
Industrial Electronics:
Accessories
Cable Range:
6-10mm
Connector Type:
Push Locking
Highlight:

Waterproof Power Cord Connector Welded

,

Female Waterproof Power Cord Connector

,

Wire To Board Power Connector Welded

Product Description
LP16 Lock Screw Welded Type Wire-To-Board Waterproof Power Connector
Professional-grade waterproof power connector with male and female aviation-style locking mechanism, designed for reliable wire-to-board connections in demanding industrial environments.
Product Specifications
Feature Specification
Pin Configuration 2/3/4/5/7/9/12 Male Female Connector
Current Rating 10A Maximum
Material PA66 Nylon
Connection Method Screw-less Type Waterproof Connector
Operating Voltage 400V
Assembly Wire Soldering or Screw Fitting
Cable Jacket OD 4-9mm
Outdoor UV Resistance Certified Pass
Technical Datasheet
Part Number CB-LP16-2P CB-LP16-3P CB-LP16-4P CB-LP16-5P CB-LP16-7P CB-LP16-9P
Pins 2 Pin 3 Pin 4 Pin 5 Pin 7 Pin 9 Pin
Wire Connection Bonding/Locking Bonding/Locking Bonding/Locking Bonding/Locking Bonding Only Bonding Only
Contact Member φ2.7*2 / φ2.4*2 φ2.7*3 / φ2.4*3 φ2.7*4 / φ2.4*4 φ1.8*5 φ1.8*7 φ1.0*9
Wire Gauge 1.5mm² / 16AWG 0.5mm² / 20AWG 0.5mm² / 20AWG 0.5mm² / 20AWG 0.5mm² / 20AWG 0.5mm² / 20AWG
Rated Current 15A 5A 5A 5A 5A 5A
Performance Characteristics
  • Insulation Voltage: 2000V AC (2-4 pin), 1500V AC (5+ pin)
  • Contact Impedance: < 3 mΩ (2-4 pin), < 5 mΩ (5+ pin)
  • Temperature Rise: Varies by current rating and pin configuration
  • Insulation Resistance: ≥ 1000 MΩ
  • Mechanical Life: ≥ 1900 Cycles
  • Ambient Temperature: -40°C to +85°C
  • High Temperature Aging: 85°C / 168 hours
Material Advantages
Screw Threaded Waterproof Power Connector with PA66 Nylon Material and 400V Operating Voltage for Wire-To-Board Applications 0
The LP16 connector utilizes high-quality copper or brass alloys for contact points, providing excellent electrical conductivity and corrosion resistance. The PA66 Nylon housing ensures durability and reliable performance in harsh environmental conditions.
Applications
Screw Threaded Waterproof Power Connector with PA66 Nylon Material and 400V Operating Voltage for Wire-To-Board Applications 1
Ideal for industrial equipment, outdoor lighting systems, agricultural applications, and any environment requiring reliable waterproof electrical connections.
Frequently Asked Questions
What type of waterproof connectors do you have?
We offer a comprehensive range of waterproof connectors including P16 Self-Locking Injection types, assembly waterproof connectors, over-mold connectors, T and Y customized connectors, and specialized solutions for livestock, poultry, new energy, and solar systems.
How to buy your products?
Contact our sales team with your requirements: current rating, number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.
How to contact with you?
Reach us via email, phone, Skype, or WhatsApp. Our experienced team with over 8 years in the industry can quickly address your technical requirements and provide professional support.
Can I get samples?
Yes, we provide samples with freight cost coverage. Please provide your courier account details and shipping address for prompt sample delivery.
