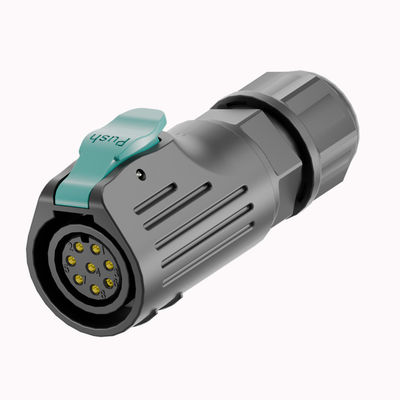

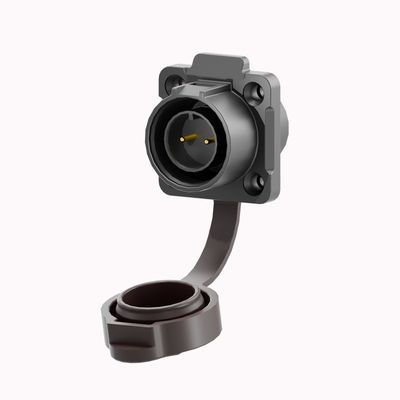

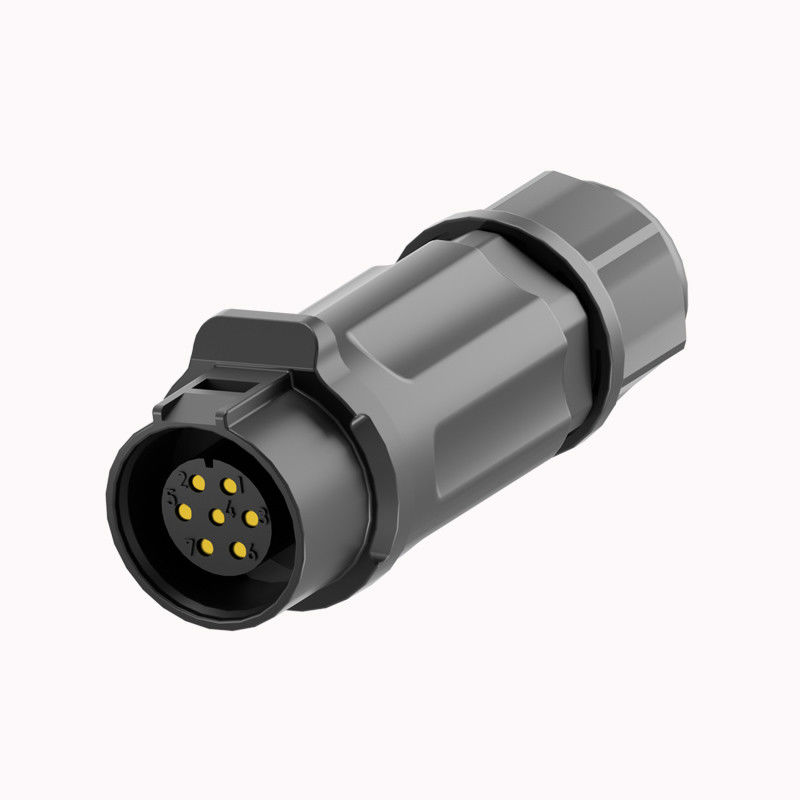

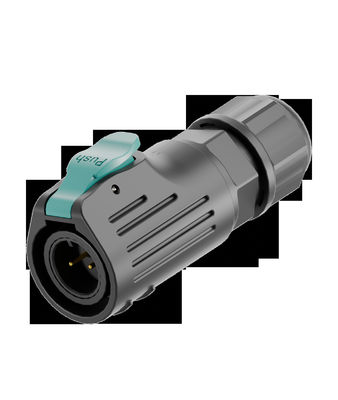

LP12 Waterproof Power Connector with IP68 Rating, PA66 Nylon Material, and 500V Voltage for Secure Electrical Connections

Brand Name:	Cablein
Model Number:	CB-LP12-3P
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Name:

LP12 Device Waterproof Power Connector Lock Screw Welded Type Waterproof Connector

Temperature Range:

-40-105℃

Material:

PA66 Nylon

Insertion Life:

1000 Times

Voltage:

Waterproof:

Highlight:

Waterproof Power Connector Welded

Male Femal Waterproof Power Connector

Product Description

PA66 Nylon Male Female Waterproof Power Connector Lock Screw Welded Type

Product Overview

Advanced waterproof power connector designed for reliable performance in demanding lighting and industrial applications.

Key Specifications

Pin Configuration: 2/3/4/5/7/9/12 Male Female Connector

Current Rating: 5A Max

Material: PA66 Nylon

Connection Method: Screw-less type waterproof connector

Operating Voltage: 125V

Assembly Wire: Soldering or screw fitting

Outdoor UV Resistance: Pass

Cable Jacket OD: 5-7mm

Technical Datasheet

Part No.	CB-LP12-2P	CB-LP12-3P	CB-LP12-4P	CB-LP12-5P	CB-LP12-7P	CB-LP12-9P
Pins	2 Pin	3 Pin	4 Pin	5 Pin	7 Pin	9 Pin
Wire Connection - Bonding	✓	✓	✓	✓	✓	✓
Wire Connection - Locking	✓	✓	✓	✓	*	*
Contact Member - Bonding	φ2.7*2	φ2.7*3	φ2.7*4	φ1.8*5	φ1.8*7	φ1.0*9
Contact Member - Locking	φ2.4*2	φ2.4*3	φ2.4*4	φ1.8*5	*	*
Applicable Wire Gauge	0.5mm² / 16AWG	0.34mm² / 20AWG	0.34mm² / 20AWG
Rated Current	15A	5A	5A
Rated Voltage	125V AC	125V AC	125V AC
Insulation Voltage	1500V AC	1500V AC	1000V AC
Contact Impedance	< 5 mΩ	< 5 mΩ	< 5 mΩ

Temperature Rise: Varies by model and current load

Insulation Resistance: ≥ 500 MΩ

Mechanical Life: ≥ 1900 Cycles

Ambient Temperature: -40°C to +85°C

High Temperature Aging: 85°C / 168 hours

Product Advantages

The LP12 Waterproof Power Connector revolutionizes lighting applications with superior performance, reliability, and safety features.

Exceptional waterproof protection against rain, humidity, and environmental challenges
Watertight seal ensures electrical connection integrity in outdoor applications
Ideal for streetlights, landscape lighting, and architectural lighting systems
Lock screw welded design provides firm, stable connections
Minimizes risk of loose contacts or intermittent power supply

Applications

Designed for demanding lighting and industrial applications requiring reliable waterproof connections.

Frequently Asked Questions

What type of waterproof connectors do you have?

We offer comprehensive waterproof connector series including private mold and customized solutions. Our product range includes P12 Self-Locking Injection Waterproof Connectors, Assembly waterproof connectors, Over-mold waterproof connectors, T/Y customized connectors, and specialized solutions for livestock, poultry, new energy, and solar systems.

How to buy your products?

Contact our sales team online or by email. Please provide: current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.

How to contact with you?

Please provide your email, phone number, Skype, or WhatsApp ID. Our experienced team with over 8 years in the industry can quickly address your requirements and provide professional support.

Can I get samples?

Yes, we provide samples with freight cost coverage. Please provide your courier number and detailed address for immediate sample dispatch.

Tags:
