Waterproof Power Connector

3 Pin IP68 Waterproof Power Connector with PA66 Nylon and 500V Rating for Industrial Applications

All Category

Waterproof Male Female Connector

Waterproof Panel Mount Connector

Power Plug

Mr. Nick Zou

nick@cableinco.com

+86 13310837463

Contact Now

3 Pin IP68 Waterproof Power Connector with PA66 Nylon and 500V Rating for Industrial Applications

Brand Name:	Cablein
Model Number:	CB-LP12-3P
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Name:

LP-24-3 Pin Power Plastic + Metal Circular Four-Hole Waterproof Aviation Plug Waterproof Power Connector

Temperature Range:

-40-105℃

Material:

PA66 Nylon

Insertion Life:

1000 Times

Voltage:

Waterproof:

Highlight:

3 Pin Waterproof Power Connector

Plastic Waterproof Power Connector

Plastic Power Connector IP68

Product Description

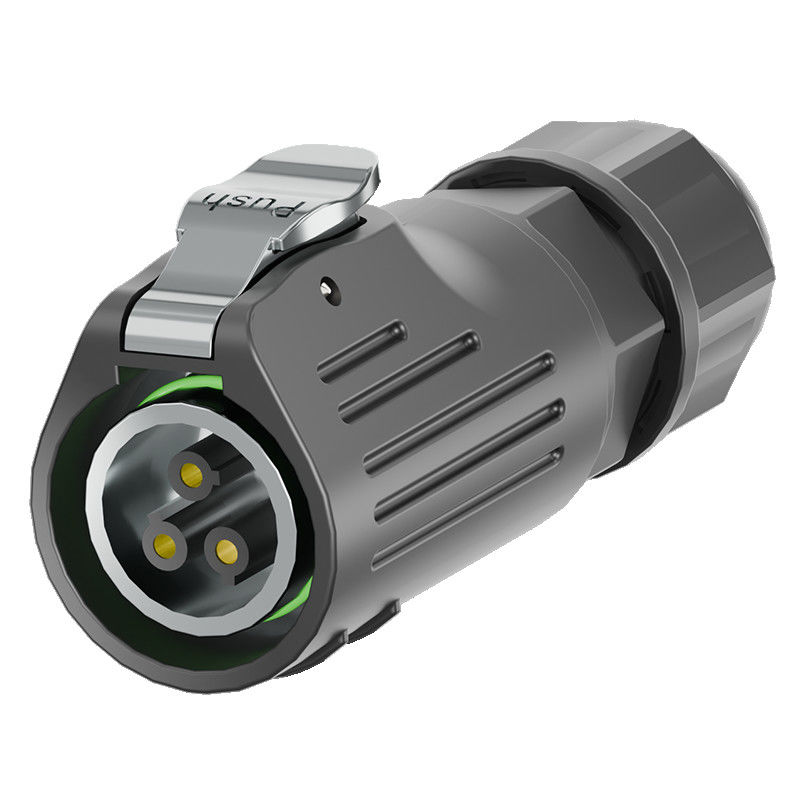

3 Pin Plastic Waterproof Power Connector IP68 PA66 Nylon Metal Circular Plug

Product Overview

The LP-24-3 Pin Power Plastic + Metal Circular Four-Hole Waterproof Aviation Plug is engineered for industrial applications requiring reliable connectivity in demanding environments.

Pin Configuration

2/3/4/5/7/9/12 Male/Female Connector

Current Rating

35A Maximum

Material

PA66 Nylon

Connection Method

Screw-less Type Waterproof Connector

Operating Voltage

500V

UV Resistance

Outdoor Rated

Wire Assembly

Soldering or Screw Fitting

Cable Jacket OD

9.5-14mm

Technical Specifications

Part No.	CB-LP16-2P	CB-LP16-3P	CB-LP16-4P	CB-LP16-5P	CB-LP16-7P	CB-LP16-9P
Pins	2 Pin	3 Pin	4 Pin	5 Pin	7 Pin	9 Pin
Wire Connection - Bonding	✓	✓	✓	✓	✓	✓
Wire Connection - Locking	✓	✓	✓	✓	*	*
Contact Member - Bonding Wire	φ2.7*2	φ2.7*3	φ2.7*4	φ1.8*5	φ1.8*7	φ1.0*9
Contact Member - Locking Wire	φ2.4*2	φ2.4*3	φ2.4*4	φ1.8*5	*	*
Applicable Wire Gauge	1.5mm² / 16AWG	0.5mm² / 20AWG	0.5mm² / 20AWG
Rated Current	35A	25A	5A
Rated Voltage	500V AC	400V AC	250V AC
Insulation Voltage	2000V AC	1500V AC	1500V AC
Contact Impedance	< 1 mΩ	< 3 mΩ	< 5 mΩ

Additional Specifications

Temperature Rise: 20A 30℃↓; 25A 40℃↓; 30A 50℃↓
Insulation Resistance: ≥ 1000 MΩ
Mechanical Life: ≥ 1900 Times
Ambient Temperature: -40℃ to +85℃
High Temperature Aging: 85℃ / 168h

Product Advantages

The LP-24-3 Pin Power Plastic + Metal Circular Four-Hole Waterproof Aviation Plug represents a significant advancement in industrial connectivity solutions. Engineered for reliability and durability in demanding environments, this connector combines robust construction with superior performance.

Featuring a hybrid plastic and metal construction, this connector offers optimal durability while maintaining a lightweight design. The circular shape ensures secure fitting and enhanced protection against environmental elements. The four-hole configuration provides stable connections even in high-vibration industrial settings.

Applications

This waterproof power connector is suitable for various industrial applications including outdoor equipment, industrial machinery, and environments requiring reliable electrical connections with protection against moisture and harsh conditions.

Frequently Asked Questions

What type of waterproof connectors do you have?

We offer a comprehensive range of waterproof connectors including P16 Self-Locking Injection Waterproof Connectors, Assembly waterproof connectors, Over-mold waterproof connectors, T and Y customized connectors, Livestock industry connectors, Poultry industry connectors, New Energy Waterproof Connectors, and Solar System waterproof connectors. Many types are our private mold designs with customization options available.

How to buy your products?

Contact our sales team online or by email. Please provide the following information:

Current Rating and Number of Contacts required
Preferred assembly style
Cable wire gauge specifications
Cable length requirements and shipping preferences

How to contact with you?

Please provide your email, phone number, Skype, or WhatsApp ID. Our team has over 8 years of industry experience with professional sales and R&D support to quickly address your requirements and solve technical challenges.

Can I get samples?

Yes, we are pleased to provide samples. You only need to cover the freight cost. Please provide your courier account number and detailed shipping address, and we will dispatch samples promptly.
