IP67 Waterproof Power Connector Panel Mount 3 Pin with 10A Current Rating for Secure Electrical Connections

Brand Name:	Cablein
Model Number:	CB-BC01
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Mounting Style:

Panel Mount

Ip Grade:

Contact Pin:

2pin Power 1pin Grounding 5pin Signal

3 Pin

Current Rating:

Gender:

Male And Female

Insulation Resistance Mo:

Highlight:

IP44 Plug Power Connector Waterproof

Panel Mount Power Connector Waterproof

Panel Mount Power Connector Three Core

Product Description

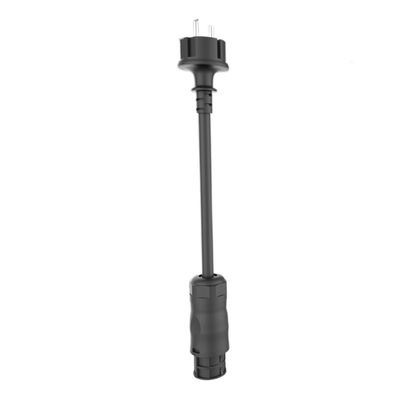

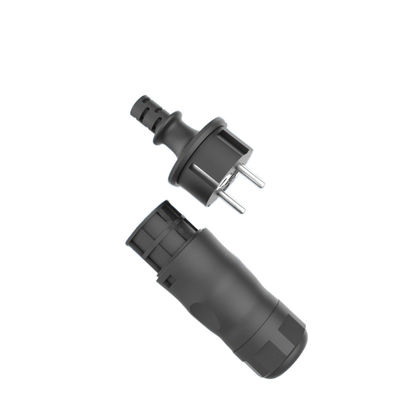

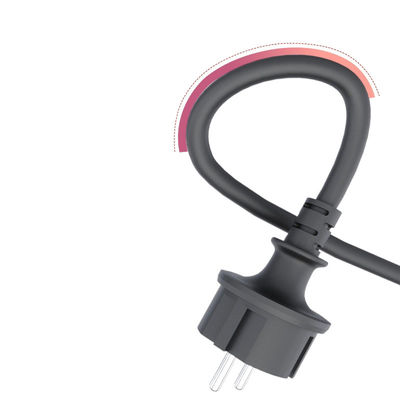

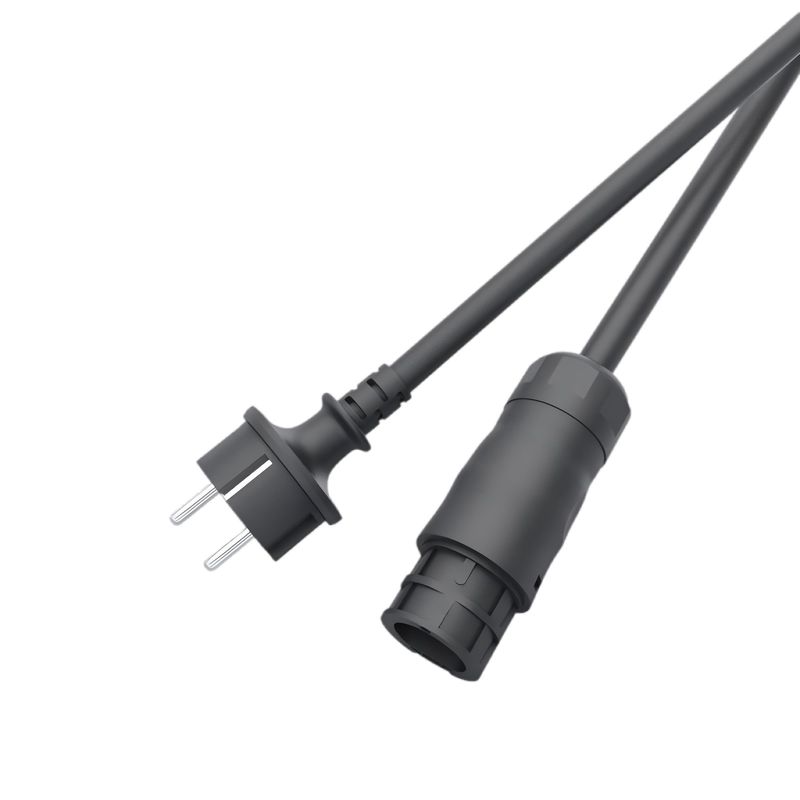

IP44 Plug Panel Mount Power Connector - Waterproof Wire to BC01 Three Core Connector

Pin Configuration

2/3/4/5/7/9/12 Male/Female Connector

Current Rating

20A Maximum

Material

PA66 Nylon Construction

Operating Voltage

500V AC

Connection Method

Screw-less Type Waterproof Connector

Wire Assembly

Soldering or Screw Fitting Options

UV Resistance

Outdoor UV Resistant Certified

Cable Jacket OD

4.5-9.2mm Range

Technical Specifications

Part No.	CB-LP20-2P	CB-LP20-3P	CB-LP20-4P	CB-LP20-5P	CB-LP20-7P	CB-LP20-9P	CB-LP20-12P
Pins	2 Pin	3 Pin	4 Pin	5 Pin	7 Pin	9 Pin	12 Pin
Wire Connection - Bonding	✓	✓	✓	✓	✓	✓	✓
Wire Connection - Locking	✓	✓	✓	✓	*	*	*
Contact Member - Bonding	φ2.7*2	φ2.7*3	φ2.7*4	φ1.8*5	φ1.8*7	φ1.0*9	φ1.0*12
Contact Member - Locking	φ2.4*2	φ2.4*3	φ2.4*4	φ1.8*5	*	*	*

Performance Ratings

Wire Gauge	Rated Current	Rated Voltage	Insulation Voltage	Contact Impedance	Temperature Rise
2.5-4 mm² (14-12 AWG)	20A	500V AC	2500V AC	< 1 mΩ	20A 30℃↓; 25A 40℃↓; 30A 50℃↓
1-1.5 mm² (18-16 AWG)	10A	500V AC	2000V AC	< 3 mΩ	10A 30℃↓; 15A 40℃↓; 20A 50℃↓
0.34-0.75 mm² (22-20 AWG)	5A	250V AC	1500V AC	< 5 mΩ	5A 30℃↓; 7A 40℃↓; 10A 50℃↓

Insulation Resistance: ≥ 1000 MΩ

Mechanical Life: ≥ 1900 Cycles

Ambient Temperature: -40℃ to +85℃

High Temperature Aging: 85℃ / 168 hours

Product Advantages

Introducing the IP44 Plug Wire to BC01 Three-Core Connector 3X1.5 Square Micro Inverter Waterproof Power Connector! This high-quality connector is specially designed to provide reliable and waterproof power connections.

Constructed with precision and durability in mind, it ensures a secure fit and optimal performance even in challenging environments. The 3X1.5 square configuration offers efficient power transmission, making it ideal for various applications, especially in micro inverter setups.

With its IP44 waterproof rating, you can have peace of mind knowing that your power connections are protected from moisture, dust, and other elements.

Applications

Frequently Asked Questions

Q: What type of waterproof connectors do you have?

A: We have all series types of waterproof connectors, including many private mold designs and customized options. We specialize in BC01 Welded 7-Core Male Plug With Flange Female Socket Cutting Machine Wall Aviation Plug Waterproof Power Connector, assembly waterproof connectors, over-mold waterproof connectors, T waterproof connectors, Y customized waterproof connectors, livestock industry connectors, poultry industry waterproof connectors, New Energy Waterproof Connectors, and Solar System waterproof connectors.

Q: How to buy your products?

A: Contact our sales team online or by email. Please provide:

• Current Rating and Number of Contacts

• Assembly Style

• Cable Wire Gauge

• Cable Length and Shipping Method

Q: How to contact with you?

A: Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, we have professional sales and R&D teams ready to understand your requirements and provide timely solutions. Feel free to reach out with any questions.

Professional Support Available

Our experienced team is ready to assist with technical specifications, custom requirements, and application guidance for your waterproof connector needs.
