IP67 Waterproof Power Connector with 500V AC Rating and Three Core Design for Photovoltaic Solar Micro Inverter

Brand Name:	Cablein
Model Number:	CB-Q28
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Connecting Model:

Push Lock

Connector Design:

Weipu Connector

Product Details:

2 Pin Outdoor Waterproof Power Connector

Operating Temperature:

-40°C To 105°C

Couoing:

Threaded Coupling

Ip Grade:

Durability:

≥500 Mating&unmating Cycles

Connecting Mode:

Quickly Bayonet Connecting

Highlight:

Micro Inverter Power Connector Waterproof

Waterproof Male And Female Connector

Three Core Male And Female Connector

Product Description

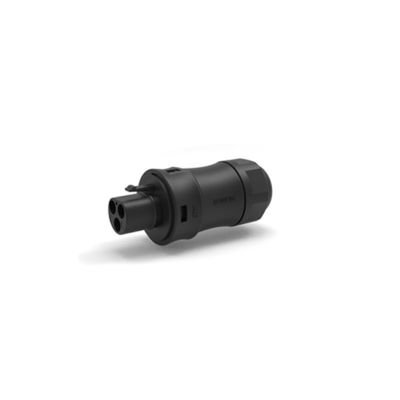

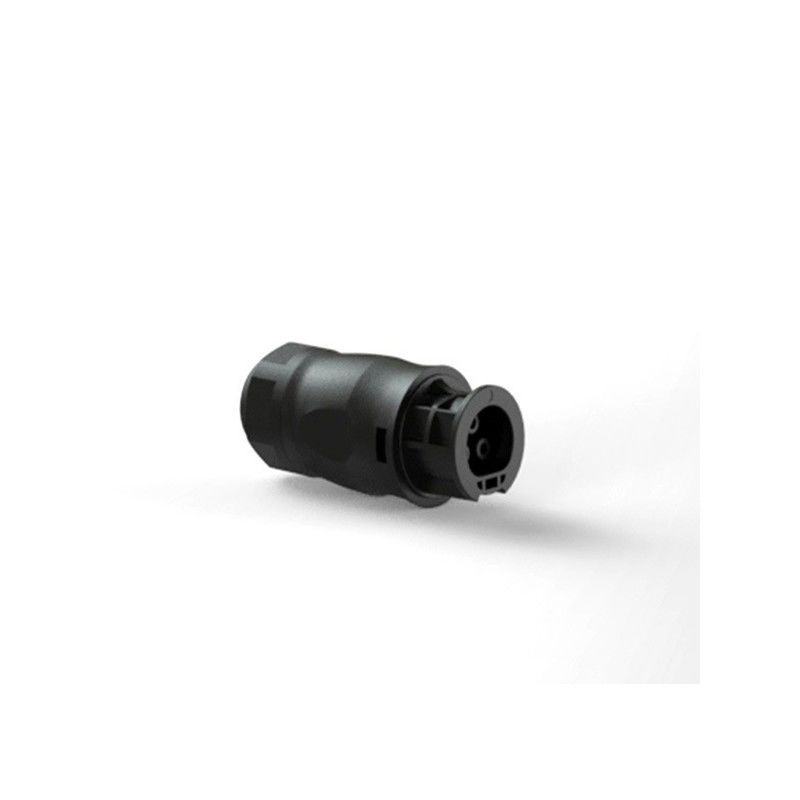

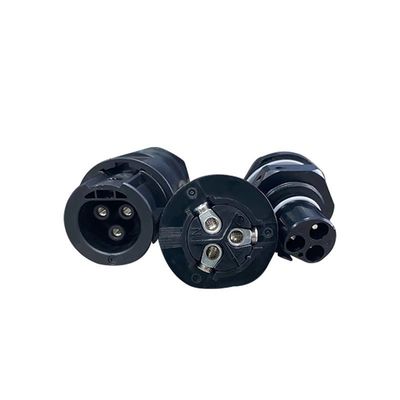

Micro Inverter Power Connector - Waterproof Three Core Male and Female Connector

Product Overview

The Q28 Male and Female Head Three Core Photovoltaic Solar Micro Inverter Waterproof Power Connector ensures reliable power connections in solar energy systems with advanced waterproof protection and stable three-core power transmission.

Key Specifications

Pin Options: 2/3/4/5/7/9/12 Male/Female

Current Rating: 20A Max

Material: PA66 Nylon

Connection Type: Screw-less waterproof connector

Operating Voltage: 500V

Wire Assembly: Soldering or screw fitting

UV Resistance: Outdoor rated

Cable Jacket OD: 4.5-9.2mm

Technical Datasheet

Part No.	CB-Q28-2P	CB-Q28-3P	CB-Q28-4P	CB-Q28-5P	CB-Q28-7P	CB-Q28-9P	CB-Q28-12P
Pins	2 Pin	3 Pin	4 Pin	5 Pin	7 Pin	9 Pin	12 Pin
Wire Connection - Bonding	✓	✓	✓	✓	✓	✓	✓
Wire Connection - Locking	✓	✓	✓	✓	*	*	*
Contact Member - Bonding Wire	φ2.7*2	φ2.7*3	φ2.7*4	φ1.8*5	φ1.8*7	φ1.0*9	φ1.0*12
Contact Member - Locking Wire	φ2.4*2	φ2.4*3	φ2.4*4	φ1.8*5	*	*	*

Performance Specifications:
Applicable wire gauge: 2.5-4 mm² (14-12 AWG) / 1-1.5 mm² (18-16 AWG) / 0.34-0.75 mm² (22-20 AWG)
Rated Current: 20A / 10A / 5A
Rated Voltage: 500V AC / 500V AC / 250V AC
Insulation Voltage: 2500V AC / 2000V AC / 1500V AC
Contact Impedance: < 1 mΩ / < 3 mΩ / < 5 mΩ
Temperature Rise: 20A 30℃↓;25A 40℃↓;30A 50℃↓ / 10A 30℃↓;15A 40℃↓;20A 50℃↓ / 5A 30℃↓;7A 40℃↓;10A 50℃↓
Insulation Resistance: ≥ 1000 MΩ
Mechanical Life: ≥ 1900 Times
Ambient Temperature: -40 to +85 ℃
High Temperature Aging: 85 ℃ / 168 h

Product Advantages

The Q28 Male and Female Head Three Core Photovoltaic Solar Micro Inverter Waterproof Power Connector represents advanced technology in solar energy connectivity. Specifically engineered for photovoltaic systems, this connector ensures reliable and efficient power transmission.

The waterproof construction makes it ideal for outdoor environments, providing protection against moisture and harsh weather conditions. The three-core design delivers stable power transmission, enhancing both performance and safety for solar micro inverters.

Suitable for both residential and commercial solar installations, this connector simplifies setup processes and minimizes power disruption risks. It's an essential component that supports seamless solar energy system operation, making clean energy more accessible and dependable.

Applications

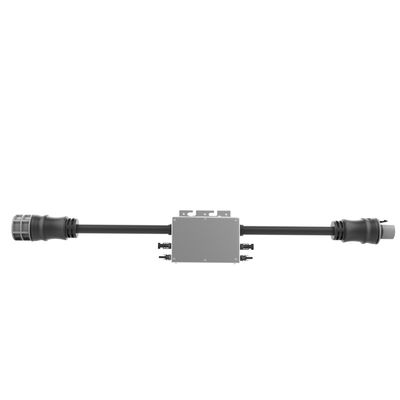

Ideal for photovoltaic solar systems, micro inverters, and outdoor power connections requiring waterproof protection and reliable performance.

Frequently Asked Questions

Q: What type of waterproof connectors do you have?

A: We offer a comprehensive range of waterproof connectors including private mold designs and custom solutions. Our product line includes:

BC01 Welded 7-Core Male Plug With Flange Female Socket
Assembly waterproof connectors
Over-mold waterproof connectors
T waterproof connectors
Y customized waterproof connectors
Livestock and poultry industry connectors
New Energy Waterproof Connectors
Solar System waterproof connectors

Q: How to buy your products?

A: Contact our sales team online or by email. Please provide:

Current rating and number of contacts required
Preferred assembly style
Cable wire gauge specifications
Cable length and shipping preferences

Q: How to contact you?

A: Please reach out via email, phone, Skype, or WhatsApp. With over 8 years of industry experience, our professional sales and R&D team can quickly understand your requirements and provide effective solutions. Don't hesitate to contact us with any questions.
