IP68 RST25I Waterproof Power Connector 500V with PA66 Nylon for Micro Inverter Applications
All Category

Waterproof Circular Connector

Waterproof Male Female Connector

Waterproof Power Connector

Waterproof Cable Connector

Waterproof Signal Connector

Waterproof Data Connector

RJ45 Waterproof Connector

Waterproof Panel Mount Connector

Waterproof LED Connectors

Power Plug
Contact Us
Mr. Nick Zou
nick@cableinco.com
+86 13310837463
Contact Now
name
  • name
  • name
  • name
  • name
  • name

IP68 RST25I Waterproof Power Connector 500V with PA66 Nylon for Micro Inverter Applications

Brand Name: Cablein
Model Number: RST251
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:

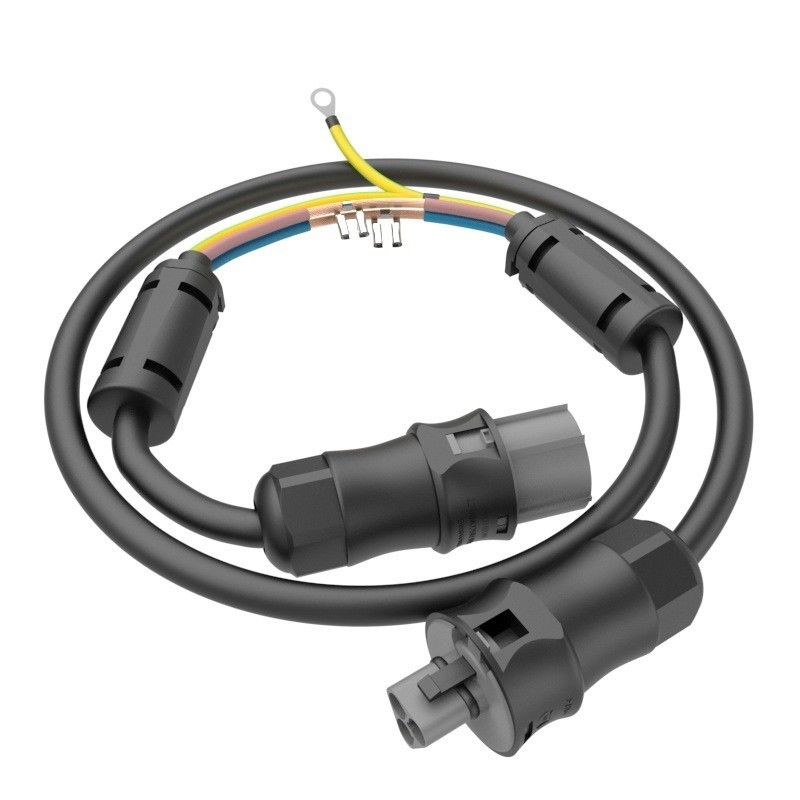

RST25I Male + Female Head, TC-ER 14AWG Micro Inverter Special Waterproof Power Connector Cable
Temperature Range:
-40-105℃
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
500V
Waterproof:
IP68
Highlight:

IP68 Waterproof Power Connector

,

Waterproof Power Connector 500V

,

Waterproof Male Female Cable Connector

Product Description
IP68 RST25I Waterproof Power Connector 500V Male Female Cable Connector
High-performance waterproof power connector designed for micro inverter applications with IP68 rating and 500V operating voltage.
Product Specifications
Pin Configuration 2/3/4/5/7/9/12 Male Female Connector
Current Rating 20A Maximum
Material PA66 Nylon
Connection Type Screw-less waterproof connector
Operating Voltage 500V
Assembly Method Soldering or screw fitting
UV Resistance Outdoor rated
Cable Jacket OD 4.5-9.2mm
Key Features & Advantages
IP68 RST25I Waterproof Power Connector 500V with PA66 Nylon for Micro Inverter Applications 0
  • IP68 rating for superior outdoor protection
  • Push-locking waterproof design for easy operation
  • High quality construction with 12-month warranty
  • Panel mount socket and butt joint options available
  • Pin quantity options from 2 to 22 positions
  • Custom cable lengths and terminal processing available
RST251 series connectors are engineered for high precision automatic insertion with self-locking mechanisms and comprehensive waterproof/dustproof features. Ideal for demanding environments including LED displays, audio-visual equipment, medical devices, industrial controls, test and measurement equipment, and AV systems.
Applications
IP68 RST25I Waterproof Power Connector 500V with PA66 Nylon for Micro Inverter Applications 1
Specifically designed for micro inverter systems and compatible with TC-ER 14AWG cables for reliable power transmission in challenging conditions.
Frequently Asked Questions
What type of waterproof connectors do you offer?
We provide comprehensive waterproof connector solutions including BC01 welded 7-core connectors, assembly waterproof connectors, over-mold connectors, T-connectors, custom Y-connectors, livestock industry connectors, and specialized new energy and solar system waterproof connectors. Many feature proprietary molds and custom designs.
How do I purchase your products?
Contact our sales team online or via email. Please specify: current rating and number of contacts required, assembly style preference, cable wire gauge specifications, cable length requirements, and preferred shipping method.
How can I contact you?
Reach us via email, phone, Skype, or WhatsApp. Our experienced team has over 8 years of industry expertise with professional sales and R&D support to quickly address your requirements and provide effective solutions.
Tags:
