Waterproof Cable Connector
>
IP67 LED Waterproof Cable Connector For Retro E27 Lamp Head Running Horse Light

IP67 LED Waterproof Cable Connector For Retro E27 Lamp Head Running Horse Light

Brand Name: Cablein
Model Number: CB-E27-MDF12
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T, Western Union
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
LED Livestock Light String Outdoor Waterproof IP67 Retro E27 Lamp Head Christmas Wedding Light Running Horse Light
Temperature Range:
-40-105℃
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
500V
Waterproof:
IP68
Highlight:

LED Waterproof Cable Connector

,

IP67 Waterproof Cable Connector

Product Description

LED Livestock Light String Outdoor Waterproof IP67 Retro E27 Lamp Head Christmas Wedding Light Running Horse Light Details



Pin: 2/3/4//8 Pins Male Femal Connector               Current Rating(A): 1.6A Max



Material:PA66 Nylon                                    Conenction Way: Screw-less type waterproof connector



Operating Voltage: 300V                          Assembly Wire: Soldering or screw fitting



Out Door UV Resistance: Pass               Cable Jacket OD: 4.5-9.2 mm



LED Livestock Light String Outdoor Waterproof IP67 Retro E27 Lamp Head Christmas Wedding Light Running Horse Light  datasheet

Pins Number  2Pins 3Pins 4Pins 8Pins
Rated Voltage  300V 300V 300V 110V
Rated Current  1.6A 1.6A 1.6A 1.6A
Insulation voltage  3KV 3KV 1KV 1KV
DC 500V Insulatin resistance  500MΩ 500MΩ 500MΩ 500MΩ
IP CODE  IP67 IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.0mm² ≤0.75mm²
Assembly cable diameter 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm







LED Livestock Light String Outdoor Waterproof IP67 Retro E27 Lamp Head Christmas Wedding Light Running Horse Light ​advantages:

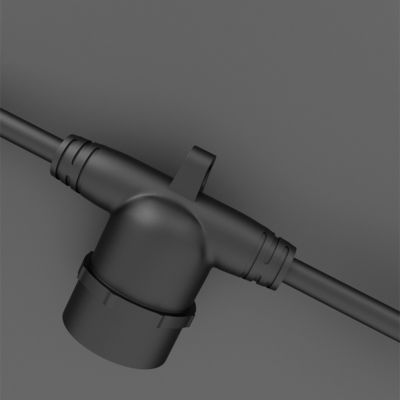

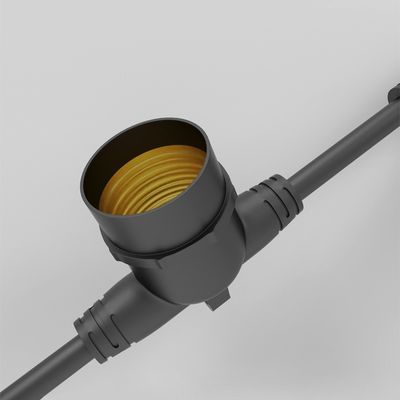

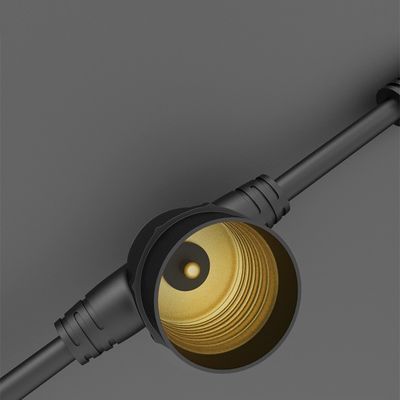

IP67 LED Waterproof Cable Connector For Retro E27 Lamp Head Running Horse Light 0


Introducing the LED Waterproof Cable Connector specifically designed for IP67 Retro E27 Lamp Head Running Horse Light applications!

This high-quality connector is engineered to ensure a secure and waterproof connection in various environments. Whether it's for outdoor installations or areas prone to moisture, it offers reliable protection for your lighting setup.

The IP67 rating guarantees excellent resistance against water and dust, allowing your running horse light to shine bright without the worry of damage. Its easy-to-install design makes it convenient for both professionals and DIY enthusiasts.


LED Livestock Light String Outdoor Waterproof IP67 Retro E27 Lamp Head Christmas Wedding Light Running Horse Light Drawing

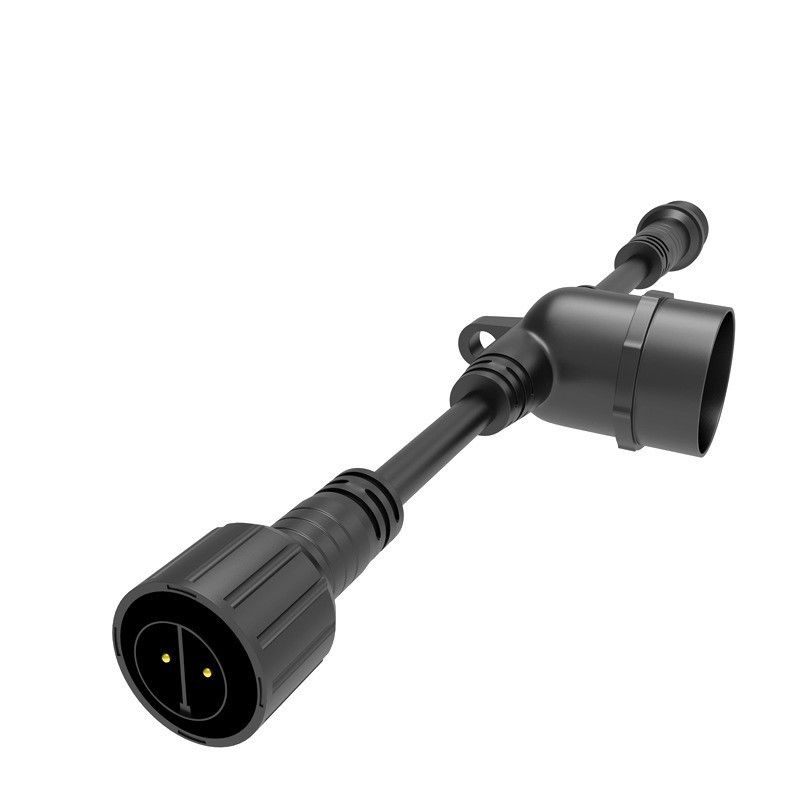

IP67 LED Waterproof Cable Connector For Retro E27 Lamp Head Running Horse Light 1





FAQ





1. Q: What type waterproof connectors do you have?
A: We have All series type waterproof connectors, Many types are our private mold, some of our connectors are customized.We foucs on
P16 Self-Locking Injection Waterproof Male Female Connector Plant Growth Light Outdoor Waterproof Equipment Connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector,Livestock industry, poultry industry waterproof connector, New Energy Waterproof Connector, Solar System waterproof connector...



2. Q: How to buy your products?
A: Contact With Our Sales Team online or By email



* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way



3. Q: How to contact with you?


A: Please give us email or Phone number,skype or whatsapp ID if possible, we have worked for this industry more than 8 years,we have Professional sales and R&D team , we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.





4. Q: Can i get samples?



A: It's my honor for us to offer you samples,you just need pay freight cost.You can let me know your courier number and your detail address,Then I can send you sample at once.
