IP67 Waterproof Cable Connector with PA66 Nylon Material for 500V LED Light Applications

Brand Name: Cablein
Model Number: CB-E27-MDF12
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
LED Livestock Light String Outdoor Waterproof IP67 Retro E27 Lamp Head Christmas Wedding Light Running Horse Light
Temperature Range:
-40-105℃
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
500V
Waterproof:
IP68
Highlight:

LED Waterproof Cable Connector

,

IP67 Waterproof Cable Connector

Product Description
IP67 LED Waterproof Cable Connector for Retro E27 Lamp Head Running Horse Light
Product Overview

High-quality waterproof connector designed specifically for IP67 Retro E27 Lamp Head Running Horse Light applications, ensuring secure and reliable connections in various environments.

Key Specifications
Pin Configuration: 2/3/4/8 Pins Male/Female
Current Rating: 1.6A Max
Material: PA66 Nylon
Connection Type: Screw-less waterproof
Operating Voltage: 300V
Wire Assembly: Soldering or screw fitting
UV Resistance: Outdoor rated
Cable Diameter: 4.5-9.2 mm
Technical Specifications
Parameter 2 Pins 3 Pins 4 Pins 8 Pins
Rated Voltage 300V 300V 300V 110V
Rated Current 1.6A 1.6A 1.6A 1.6A
Insulation Voltage 3KV 3KV 1KV 1KV
Insulation Resistance 500MΩ 500MΩ 500MΩ 500MΩ
IP Rating IP67 IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.0mm² ≤0.75mm²
Cable Diameter 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm
Product Features

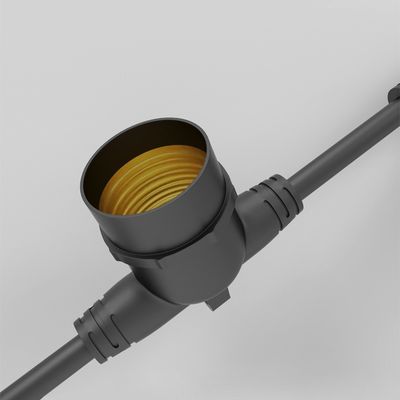

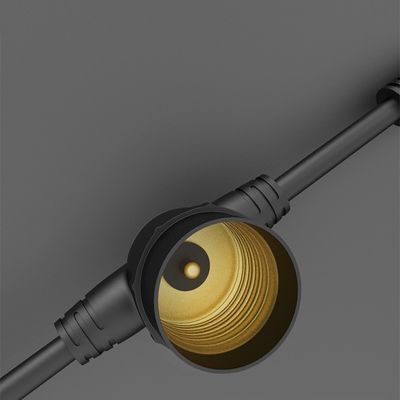

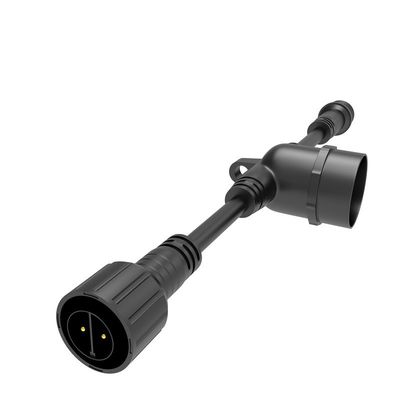

IP67 Waterproof Cable Connector with PA66 Nylon Material for 500V LED Light Applications 0

This high-quality connector is engineered to ensure secure and waterproof connections in various environments. The IP67 rating guarantees excellent resistance against water and dust, allowing your running horse light to shine bright without damage concerns.

Easy-to-install design makes it convenient for both professionals and DIY enthusiasts, perfect for outdoor installations or areas prone to moisture.

Technical Drawing
IP67 Waterproof Cable Connector with PA66 Nylon Material for 500V LED Light Applications 1
Frequently Asked Questions
What type of waterproof connectors do you have?
We offer a comprehensive range of waterproof connectors including:
  • P16 Self-Locking Injection Waterproof Connectors
  • Assembly waterproof connectors
  • Over-mold waterproof connectors
  • T and Y customized waterproof connectors
  • Livestock and poultry industry connectors
  • New Energy and Solar System waterproof connectors
Many types are our private mold and we specialize in custom solutions.
How to buy your products?
Contact our sales team online or by email. Please provide:
  • Current rating and number of contacts required
  • Assembly style preference
  • Cable wire gauge specifications
  • Cable length and shipping requirements
How to contact you?
Please provide your email, phone number, Skype or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D team can quickly understand your requirements and provide effective solutions.
Can I get samples?
Yes, we're pleased to provide samples. You only need to cover the freight cost. Please provide your courier account number and detailed shipping address for immediate sample dispatch.
