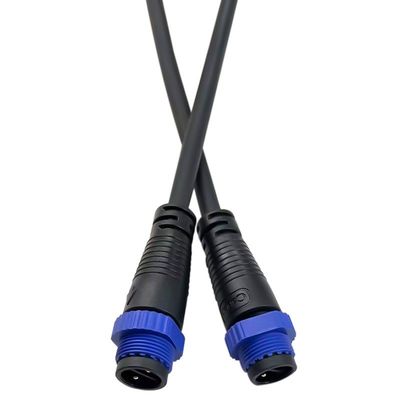

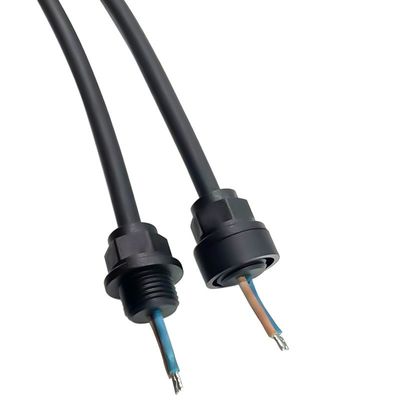

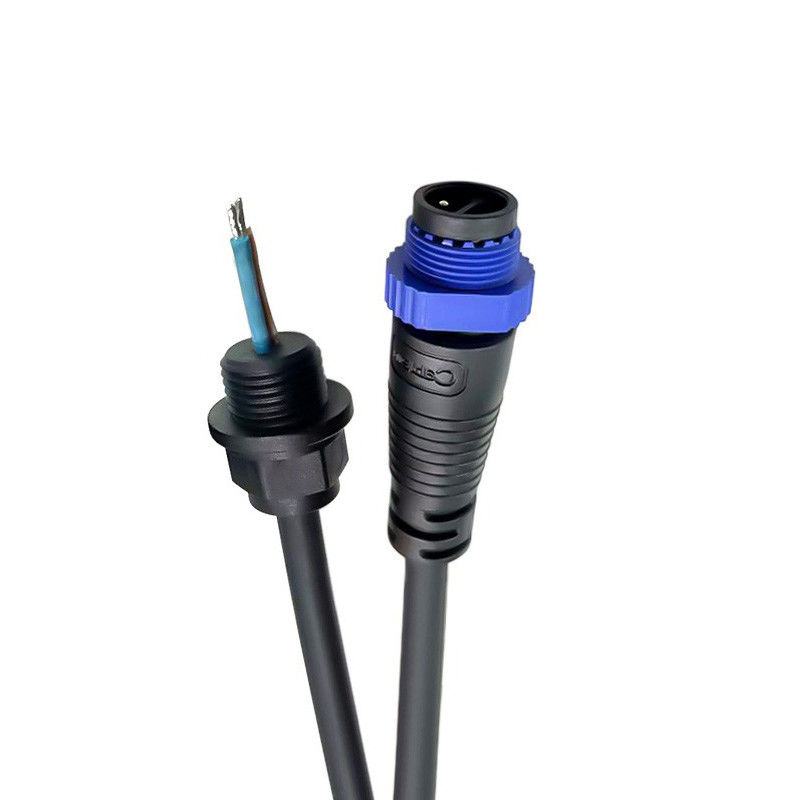

Threaded M15 Waterproof Cable Connector with IP68 Rating PA66 Nylon Material for 500V Solar Power Systems

Brand Name: Cablein
Model Number: CB-M15-2P-W
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
Threaded M15 Two-Core Power Cord Injection Molded Tail Card Waterproof Cable Connector Solar Power System Panel
Temperature Range:
-40-105℃
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
500V
Waterproof:
IP68
Highlight:

Threaded Waterproof Cable Connector

,

M15 Waterproof Cable Connector

Product Description
Threaded M15 Waterproof Cable Connector for Solar Power Systems
High-performance threaded M15 waterproof cable connector designed specifically for solar power system panels and outdoor applications.
Product Specifications
Pin Configuration: 2/3/4/8 Pins Male/Female
Current Rating: 10A Max
Material: PA66 Nylon
Connection Type: Screw-less Waterproof
Operating Voltage: 220V
UV Resistance: Outdoor Rated
Cable Jacket OD: 4.5-9.2 mm
Assembly Method: Soldering or Screw Fitting
Technical Datasheet
Specification 2 Pins 3 Pins 4 Pins 8 Pins
Rated Voltage 300V 300V 300V 110V
Rated Current 1.6A 1.6A 1.6A 1.6A
Insulation Voltage 3KV 3KV 1KV 1KV
DC 500V Insulation Resistance 500MΩ 500MΩ 500MΩ 500MΩ
IP Code IP67 IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.0mm² ≤0.75mm²
Assembly Cable Diameter 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm
Key Features
  • IP67 rating for reliable outdoor performance
  • Push-locking full waterproof design for easy operation
  • High-quality construction with 12-month warranty
  • Panel mount socket with butt joint compatibility
  • Available in pin quantities from 2 to 22
  • Custom cable lengths and terminal processing available
The DT06-2S Tyco injection molded connector provides easy plug-and-play functionality while effectively protecting splices and junctions from water and environmental elements. To disconnect, simply unscrew the main body and separate the two ends. The M16 waterproof connector features multiple waterproofing levels including o-rings, waterproof sealant, and flexible end seals that tighten and seal when screwed together.
Product Drawing
Threaded M15 Waterproof Cable Connector with IP68 Rating PA66 Nylon Material for 500V Solar Power Systems 0
Frequently Asked Questions
What types of waterproof connectors do you offer?
We provide a comprehensive range of waterproof connectors including private mold designs and custom solutions. Our portfolio includes P16 Self-Locking Injection Waterproof Connectors, Assembly waterproof connectors, Over-mold connectors, T-connectors, Y-custom connectors, and specialized solutions for livestock, poultry, new energy, and solar system applications.
How can I purchase your products?
Contact our sales team online or via email. Please provide: current rating and number of contacts required, assembly style preference, cable wire gauge specifications, cable length requirements, and preferred shipping method.
How can I contact you?
Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D team can quickly understand your requirements and provide effective solutions. Don't hesitate to reach out with any questions.
Can I request samples?
Yes, we're pleased to provide samples. You only need to cover the freight cost. Please provide your courier account number and detailed shipping address, and we'll dispatch samples immediately.
