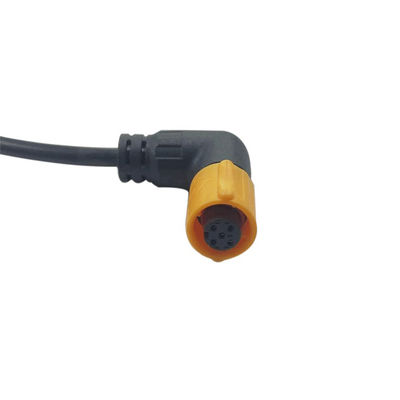

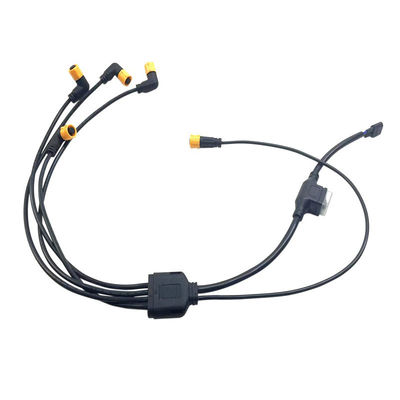

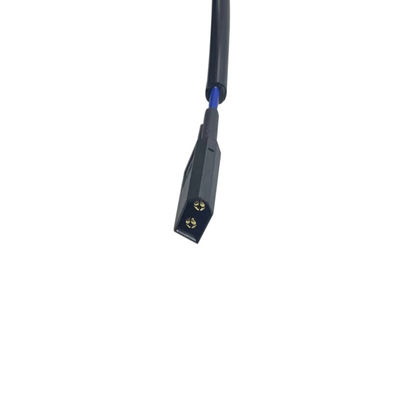

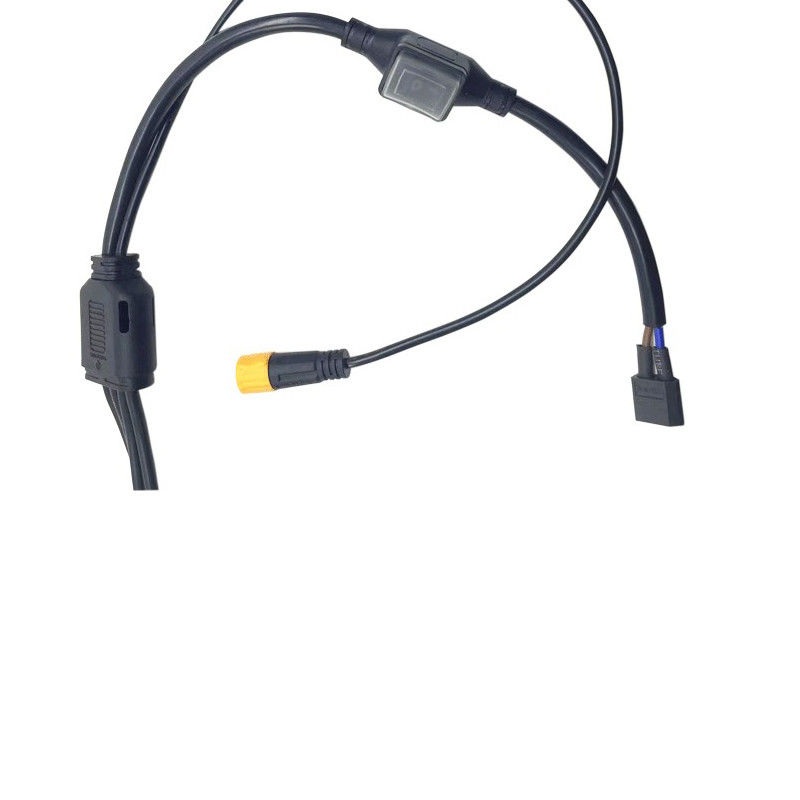

IP67 Waterproof Y-Type Self-Locking Cable Connector with PA66 Nylon Material for New Energy Equipment

Brand Name: Cablein
Model Number: CB-TP001-4P
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
IP67 Waterproof Cable Connector Y-Type Two Tow Four Self-Locking Connector Head UAV New Energy Equipment
Temperature Range:
-40-105℃
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
300V
Waterproof:
IP68
Matel:
PA66
Connecting Model:
Screw Locking
Product:
Waterproof Cable Connector
Gender:
Male / Female
Rated Voltage:
300V
Pins:
2pin/3pin/4pin/5pin
Protection Leval:
IP67
Package Details:
46 X 33 X 23 CM:(5000PCS)
Highlight:

Waterproof IP67 Cable Connector

,

Self Locking IP67 Cable Connector

Product Description
Self Locking Waterproof IP67 Cable Connector Y Type
This high-quality Y-type connector is engineered for new energy equipment applications, providing reliable and watertight connections in demanding environments. The self-locking mechanism ensures secure connections while the IP67 rating guarantees protection against moisture, dust, and harsh conditions.
Product Specifications
Pin Configuration: 2/3/4/8 Pins Male/Female
Current Rating: 10A Maximum
Material: PA66 Nylon
Connection Type: Screw-less waterproof connector
Operating Voltage: 220V
Assembly Method: Soldering or screw fitting
UV Resistance: Outdoor rated
Cable Jacket OD: 4.5-9.2 mm
Technical Data Sheet
Parameter 2 Pins 3 Pins 4 Pins 8 Pins
Rated Voltage 300V 300V 300V 110V
Rated Current 1.6A 1.6A 1.6A 1.6A
Insulation Voltage 3KV 3KV 1KV 1KV
DC 500V Insulation Resistance 500MΩ 500MΩ 500MΩ 500MΩ
IP Code IP67 IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.0mm² ≤0.75mm²
Assembly Cable Diameter 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm
Product Overview
This IP67 waterproof Y-type cable connector with self-locking mechanism is specifically designed for new energy equipment applications. It provides reliable, watertight connections for solar panels, wind turbines, UAV systems, and other new energy devices operating in harsh environmental conditions.
The connector's robust construction ensures long-term performance and protection against moisture, dust, and outdoor elements. The self-locking feature prevents accidental disconnections, making it an essential component for reliable power transmission in new energy systems.
Product Drawing
IP67 Waterproof Y-Type Self-Locking Cable Connector with PA66 Nylon Material for New Energy Equipment 0
Frequently Asked Questions
What types of waterproof connectors do you offer?
We provide a comprehensive range of waterproof connectors including P16 self-locking injection connectors, assembly waterproof connectors, over-mold connectors, T-type connectors, Y-type connectors, and specialized connectors for livestock/poultry industries, new energy applications, and solar systems. Many of our connectors feature custom molds and designs.
How do I purchase your products?
Contact our sales team online or by email. Please provide the following information: current rating and number of contacts required, assembly style preference, cable wire gauge specifications, cable length requirements, and preferred shipping method.
How can I contact you?
Please provide your email, phone number, Skype, or WhatsApp ID. Our team has over 8 years of industry experience with professional sales and R&D departments ready to address your technical requirements and provide timely solutions.
Can I request samples?
Yes, we provide samples upon request. Customers are responsible for freight costs. Please provide your courier account number and detailed shipping address for sample delivery.
