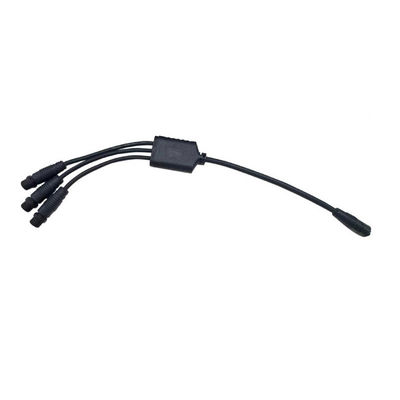

IP68 PA66 Nylon Y-Type M12 Waterproof Cable Connector for 220V Street Lamp Applications
  • name
  • name
  • name
  • name

IP68 PA66 Nylon Y-Type M12 Waterproof Cable Connector for 220V Street Lamp Applications

Brand Name: Cablein
Model Number: CB-Y01-3P
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
Y-Type One Minute Two/One Minute Six M12 Street Lamp Module Plant Light Waterproof Cable Connector
Temperature Range:
-40-105℃
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
220V
Waterproof:
IP68
Application:
Automotive
Gender:
Female, Male And Female, Male To Female, Male, Male&Female
Highlight:

M12 Waterproof Cable Connector

,

TUV Waterproof Cable Connector

,

IP68 M12 Cable Connectors

Product Description
Y Type IP68 M12 Waterproof Cable Connector
Professional Y-Type M12 waterproof connector designed for street lamp and plant light applications, featuring one-minute installation capability for efficient setup.
Product Specifications
Pin Configuration
2/3/4/8 Pins Male/Female
Current Rating
10A Maximum
Material
PA66 Nylon
Connection Type
Screw-less Waterproof
Operating Voltage
220V
UV Resistance
Outdoor Rated
Wire Assembly
Soldering or Screw Fitting
Cable Diameter
4.5-9.2 mm
Technical Specifications
Parameter 2 Pins 3 Pins 4 Pins 8 Pins
Rated Voltage 300V 300V 300V 110V
Rated Current 1.6A 1.6A 1.6A 1.6A
Insulation Voltage 3KV 3KV 1KV 1KV
Insulation Resistance 500MΩ 500MΩ 500MΩ 500MΩ
IP Rating IP67 IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.0mm² ≤0.75mm²
Cable Diameter 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm
IP68 PA66 Nylon Y-Type M12 Waterproof Cable Connector for 220V Street Lamp Applications 0
The Y-Type M12 Waterproof Cable Connector is engineered for reliable outdoor lighting applications, particularly in street lamp installations. Its IP68 waterproof rating ensures consistent performance in adverse weather conditions.
Designed for durability and installation efficiency, this connector enables secure connections in just one minute, significantly reducing setup time for street lamp projects. The high-quality construction provides stable electrical connections, minimizing fault risks and extending lighting system longevity.
Compatible with various street lamp models, this versatile connector offers a seamless installation solution that delivers consistent, safe illumination for roads and community spaces.
Product Drawing
IP68 PA66 Nylon Y-Type M12 Waterproof Cable Connector for 220V Street Lamp Applications 1
Frequently Asked Questions
What types of waterproof connectors do you offer?
We provide comprehensive waterproof connector solutions including P16 Self-Locking Injection Waterproof Connectors, Assembly waterproof connectors, Over-mold connectors, T-type connectors, Y-type customized connectors, livestock industry connectors, new energy connectors, and solar system waterproof connectors. Many feature proprietary molds and custom designs.
How do I purchase your products?
Contact our sales team online or via email. Please provide:
- Current rating and number of contacts required
- Preferred assembly style
- Cable wire gauge specifications
- Cable length requirements and shipping preferences
How can I contact your team?
Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D teams can quickly understand your requirements and provide effective solutions.
Are samples available?
Yes, we provide samples upon request. Customers only need to cover freight costs. Please provide your courier account number and detailed shipping address for prompt sample delivery.
Ready to Order?
Contact our experienced team today for pricing, technical specifications, and custom connector solutions tailored to your project requirements.
Tags:

Waterproof Wire Nuts

Cable Waterproof Connector

Male Waterproof Wire Connector
