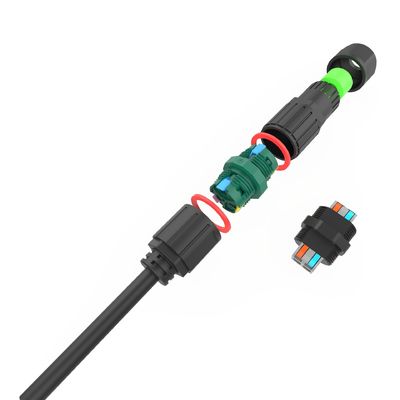

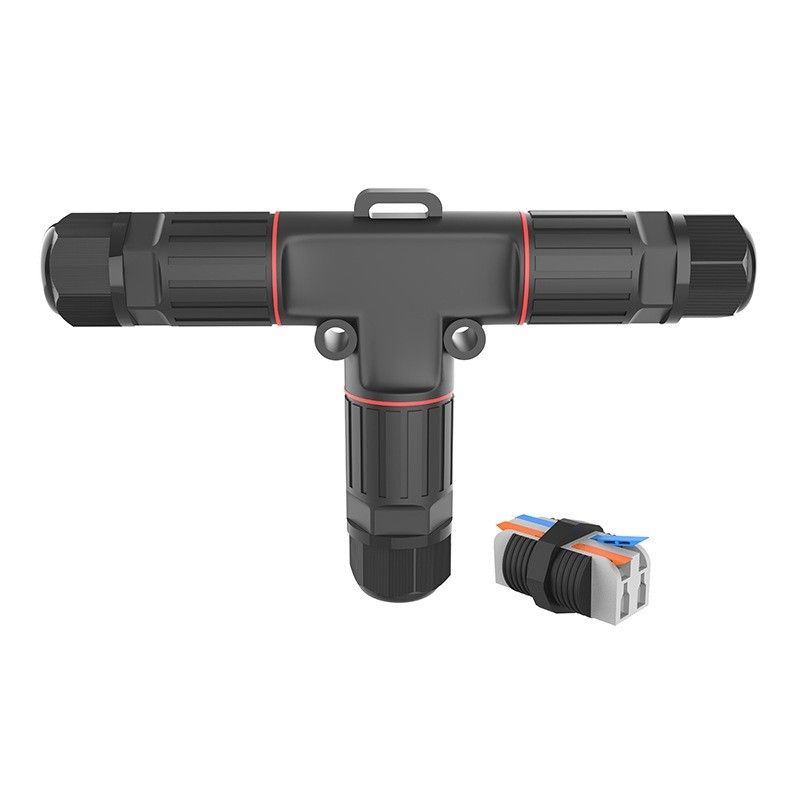

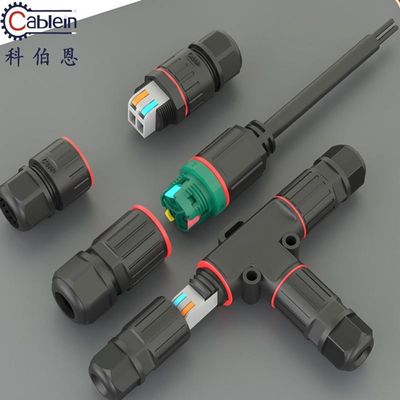

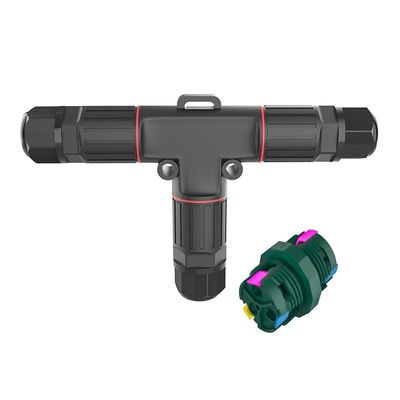

M20 Quick Connector IP67 Waterproof 3 Core Quick Card Press Aviation Plug for Outdoor Applications

Brand Name:	Cablein
Model Number:	CB-M20-FLF11-20
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL, CB, SAA

Name:

M20 Waterproof Data Connector Quick Card Press Quick Connector 3 Core For Outdoor Lamp

Material:

PA66 Nylon

Insertion Life:

1000 Times

Voltage:

Waterproof:

Product Keywords:

Electrical Power Connector

Rated Current:

Contact Material:

Alloy Copper

Supply Ability:

50000pcs per day

Highlight:

Waterproof Data Connector M20

3 Core Waterproof Data Connector

Product Description

Outdoor 3 Core Waterproof Data Connector M20 Quick Card Press Quick Connector

This M20 waterproof data connector features a quick card press mechanism for easy installation and is specifically designed for outdoor lamp applications. Engineered with high-quality materials to ensure durability and reliability in harsh outdoor conditions.

Product Specifications

Specification	Details
Manufacturer	Cablein
Product Name	2-10 core aviation plug male and female head connection cable
Wire Specification	Outer diameter 5.0-7.0MM (PVC/rubber)
Wire Color	Black/white (custom colors available with minimum order quantity)
Wire Length	Customized according to customer requirements
Plug Specifications	LP12-2P, 3P, 4P, 5P, 6P, 7P, 8P, 9P, 10P
Rated Current	1A-10A
Rated Voltage	250V-1500Ω
Contact Material	¢2.0MM copper needle, tinned phosphor bronze tube
Insulation Material	Bakelite, PVC
Working Temperature	-40°C to 105°C

Applications

Widely used in vehicle signal lines, automotive rear-view systems, gas monitoring system communication cables, and various sensor equipment connections.

Key Features

UL standard or national standard compliant wiring
Strong anti-interference capability and stable signal transmission
Aviation plug end injection molding for aesthetic appearance
Standard waterproof performance
Easy installation and long service life
Strictly inspected and compliant with ROXH standards
Meets reliability test requirements for electrical applications

Application Industries

Stage Equipment

Smart Grid

LED Lighting

Solar Energy Equipment

Ship Equipment

Agriculture

Electric Power Equipment

Vehicle Equipment

Ebike/Motorcycle

Communications Equipment

Heavy Machinery

Transportation

Product Drawing

Frequently Asked Questions

Q: How to buy your products?

A: Contact our sales team online or by email. Please provide the following information:

Confirm current rating and number of contacts
Confirm assembly style
Confirm cable wire gauge
Confirm cable length and shipping method

Q: Can I get samples?

A: We are pleased to offer samples. You only need to pay the freight cost. Please provide your courier account number and detailed address, and we will send the sample immediately.
