PA66 Nylon IP67 Waterproof Data Connector with 15A Max Current for Industrial Equipment

Brand Name: Cablein
Model Number: CB-P16-MDM11-4P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Cable Od:
1500mating Cycles
Cable Diameter:
12mm Max
Waterproof Level:
IP68
Rated Current:
10A Max
Item:
Waterproof Underground Cable Connector
Cable Length:
Per Your Requirement
Lead Time:
10-15 Days
Name:
P16 Electrical Waterproof Data Connectors Industrial Equipment IP67 PA66
Highlight:

Waterproof Data Connector IP67

,

PA66 Waterproof Data Connector

,

IP67 Waterproof Electrical Wire Connectors

Product Description
PA66 Waterproof Data Connector IP67 Electrical Wire Connectors
High-performance waterproof data connectors designed for industrial equipment applications requiring reliable data transmission in challenging environments.
Product Specifications
Parameter 2 Pins 3 Pins 4 Pins
Rated Voltage 500V 500V 500V
Rated Current 15A 15A 15A
Insulation Resistance 500MΩ 500MΩ 500MΩ
IP Rating IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.5mm²
Assembly Cable Diameter 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm
Key Features
  • Pin Options: 2/3/4/2+2/5/2+3/7 Pins Male/Female Connector
  • Current Rating: 15A Maximum
  • Material: High-Quality PA66 Nylon
  • Connection Method: Screw-less Type Waterproof Design
  • Operating Voltage: 500V
  • Assembly Options: Soldering or Screw Fitting
  • Outdoor UV Resistance: Certified Pass
  • Cable Jacket OD: 4.5-9.2mm
Product Advantages

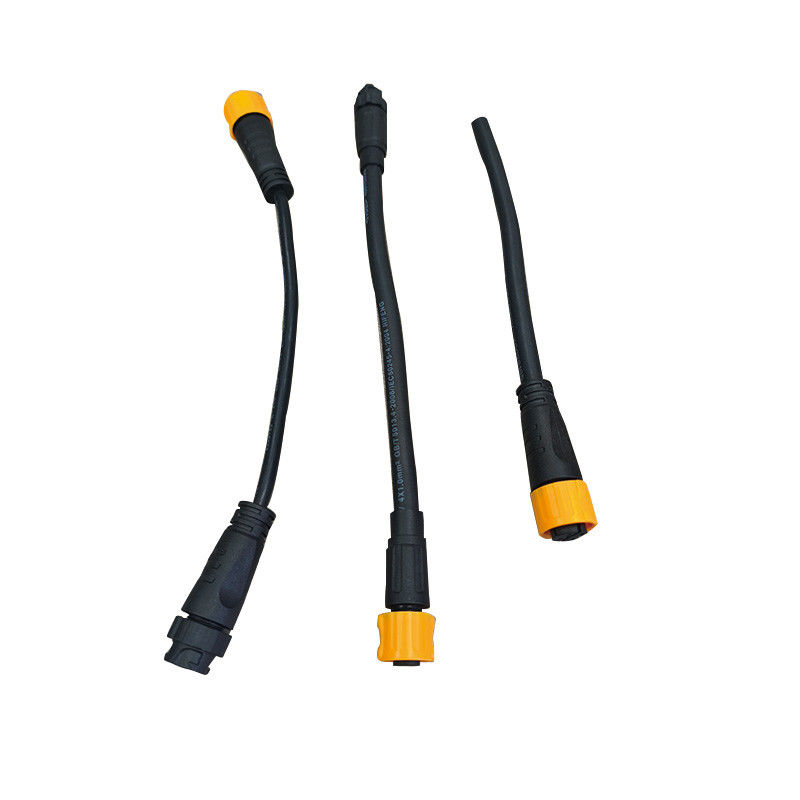

PA66 Nylon IP67 Waterproof Data Connector with 15A Max Current for Industrial Equipment 0
P16 Electrical Waterproof Data Connectors provide the ideal solution for industrial equipment applications. Constructed from durable PA66 material, these connectors are engineered to withstand harsh industrial environments while maintaining reliable performance.
With an IP67 rating, these connectors offer superior protection against water, dust, and contaminants, ensuring uninterrupted data transmission even in demanding conditions. The enhanced durability reduces maintenance requirements and minimizes equipment downtime, while the waterproof design protects against moisture-related damage, extending equipment lifespan and reliability.
Technical Drawing
PA66 Nylon IP67 Waterproof Data Connector with 15A Max Current for Industrial Equipment 1
Frequently Asked Questions
What type of waterproof connectors do you have?
We offer a comprehensive range of waterproof connectors including P16 Self-Locking Injection Waterproof Connectors, Assembly waterproof connectors, Over-mold waterproof connectors, T-connectors, Y-customized connectors, and specialized connectors for livestock/poultry industries, new energy applications, and solar systems. Many feature our proprietary molds and custom designs.
How to buy your products?
Contact our sales team online or by email. Please provide: Current rating and number of contacts required, assembly style preference, cable wire gauge specifications, cable length requirements, and preferred shipping method.
How to contact with you?
Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D teams can quickly understand your requirements and provide effective solutions.
Can I get samples?
Yes, we're pleased to provide samples. You only need to cover the freight cost. Please provide your courier account number and detailed shipping address for immediate sample dispatch.
