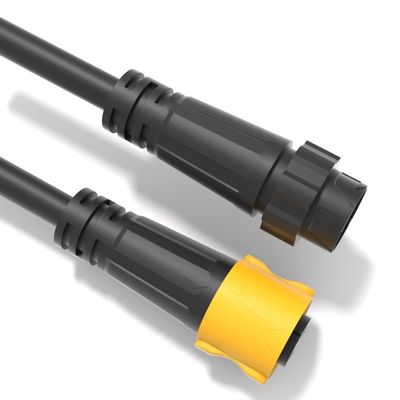

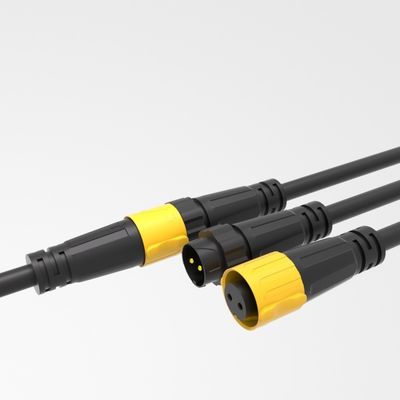

Self-Locking Waterproof Data Connector IP67 Rated for 250VAC Male Female Connector

Brand Name: Cablein
Model Number: CB-P12-MDM11-6P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Product Name:
P12 Self-locking Waterproof Data Connector Male Female 2-8-core Connector IP67
Cable Diameter:
12mm Max
Waterproof Level:
IP68
Rated Current:
10A Max
Rated Voltage:
250VAC
Cable Length:
Per Your Requirement
Lead Time:
10-15 Days
Connector Gender:
Male/Female
Highlight:

Self Locking Waterproof Data Connector

,

Waterproof Data Connector IP67

,

250VAC Male Female Connector

Product Description
P12 Self-Locking Waterproof Data Connector
Product Overview
High-performance IP67 rated waterproof data connector with self-locking mechanism, available in male and female configurations with 2-8 cores.
Key Specifications
  • Pin Configurations: 2/3/4/2+2/5/2+3/7 Pins Male & Female
  • Current Rating: 8A Maximum
  • Material: PA66 Nylon
  • Connection Type: Screw-less waterproof connector
  • Operating Voltage: 250V
  • Wire Assembly: Soldering or screw fitting
  • UV Resistance: Outdoor rated
  • Cable Jacket OD: 4-8mm
Technical Datasheet
Specification 2 Pins 3 Pins 4 Pins
Rated Voltage 250V 250V 250V
Rated Current 8A 8A 8A
Insulation Resistance 500MΩ 500MΩ 500MΩ
IP Rating IP67 IP67 IP67
Cable Specifications ≤1.5mm² ≤1.5mm² ≤1.5mm²
Assembly Cable Diameter 4.5-9.2mm 4.5-9.2mm 4.5-9.2mm
Self-Locking Waterproof Data Connector IP67 Rated for 250VAC Male Female Connector 0
Product Advantages
The P12 Self-locking Waterproof Data Connector delivers exceptional protection against water and dust with its IP67 rating, making it ideal for demanding industrial and outdoor environments. Manufactured with precision in the Putra Industrial Area, these connectors ensure reliable data transmission in harsh conditions for industrial machinery, outdoor equipment, and applications requiring secure waterproof connections.
Frequently Asked Questions
What types of waterproof connectors do you offer?
We provide comprehensive waterproof connector solutions including P16 Self-Locking Injection connectors, assembly waterproof connectors, over-mold connectors, T-connectors, Y-customized connectors, and specialized connectors for livestock/poultry industries, new energy applications, and solar systems.
How do I purchase your products?
Contact our sales team online or by email. Please provide: current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.
How can I contact you?
Reach us via email, phone, Skype, or WhatsApp. With over 8 years of industry experience, our professional sales and R&D team can quickly address your technical requirements and provide effective solutions.
Can I request samples?
Yes, we provide samples with freight costs covered by the customer. Please provide your courier account number and detailed shipping address for prompt sample delivery.
Professional waterproof connector solutions for industrial applications
Trust our 8+ years of expertise in connector manufacturing for reliable performance in demanding environments.
