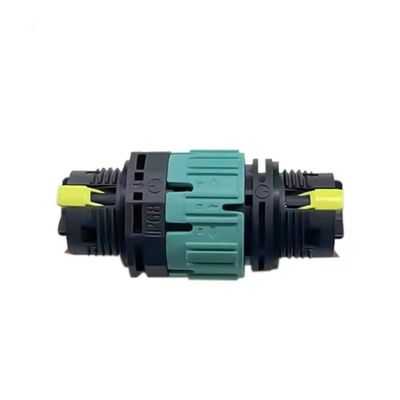

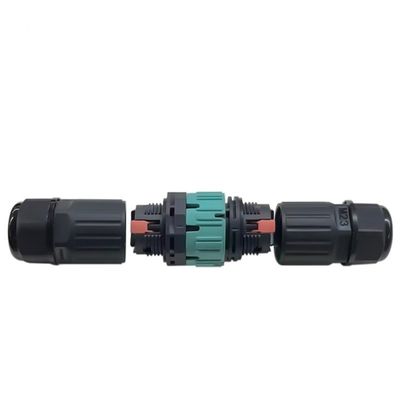

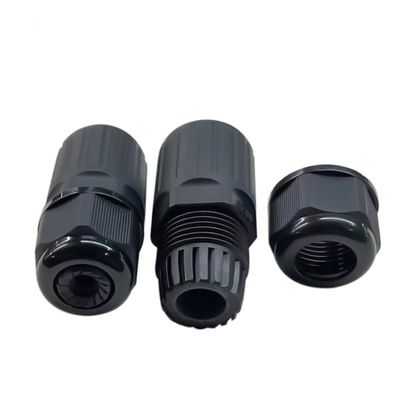

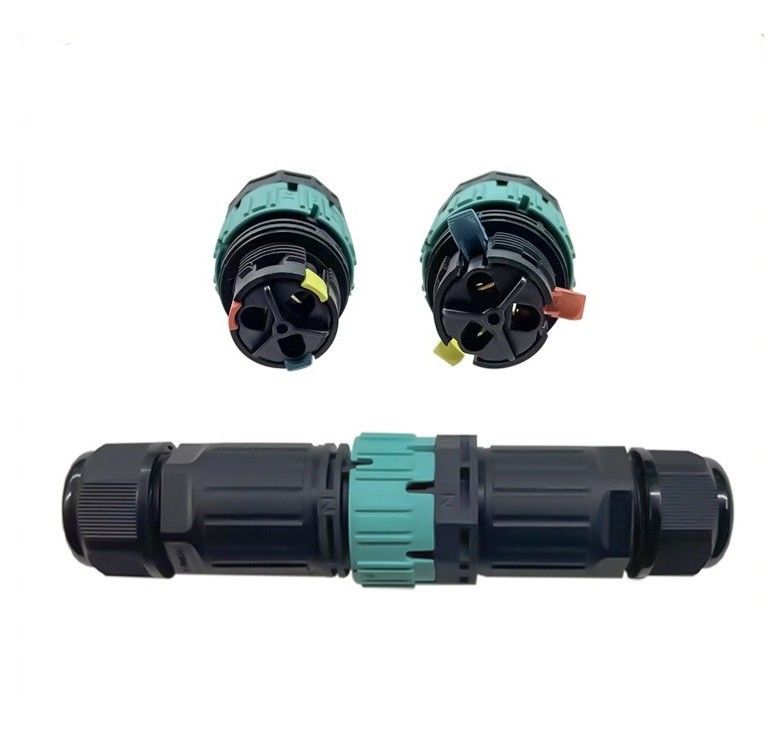

M23 Connector IP68 Waterproof Data Connector with PA66 Nylon and 450V Rating for Outdoor Use

Brand Name: Cablein
Model Number: CB-M20-FLF01-3O
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
M23 Fast Card Waterproof Data Connector Butt Three Core Connector IP68 Outdoor
Temperature Range:
-40-105℃
Material:
PA66 Nylon
Insertion Life:
1000 Times
Voltage:
450V
Waterproof:
IP68
Cable Length:
Per Your Requirement
Sample Availability:
Yes
Highlight:

Fast Card Waterproof Data Connector

,

M23 Waterproof Data Connector

Product Description
M23 Fast Card Waterproof Data Connector IP68 Three Core Connector Outdoor
Product Overview

Professional M23 Fast Card Waterproof Data Connector featuring IP68 rating for outdoor applications. This three-core connector ensures reliable data transmission in harsh environmental conditions.

Technical Specifications
Pin Configuration 3Pin Male/Female Connector
Current Rating 10A Max
Material PA66 Nylon
Connection Method Screw-less type waterproof connector
Operating Voltage 450V
Assembly Wire Soldering or screw fitting
Outdoor UV Resistance Pass
Cable Jacket OD 5-9 mm, 9-12 mm
Technical Datasheet
Parameter Specification
Pins Number 3 Pins
Rated Voltage 220V
Rated Current 10A
Insulation Voltage 3KV
DC 500V Insulation Resistance 100MΩ
IP Code IP68
Cable Specifications 0.5mm²-2.5mm²
Assembly Cable Diameter 5-9mm, 9-12mm
Product Features & Advantages
M23 Connector IP68 Waterproof Data Connector with PA66 Nylon and 450V Rating for Outdoor Use 0
  • IP68 rated for complete protection against water and dust ingress
  • Ideal for outdoor applications and harsh environmental conditions
  • Three-core configuration ensures stable and efficient data connectivity
  • Durable PA66 Nylon construction with UV resistance
  • Suitable for industrial machinery and outdoor monitoring systems
  • Reliable performance in extreme weather conditions
Technical Drawing
M23 Connector IP68 Waterproof Data Connector with PA66 Nylon and 450V Rating for Outdoor Use 1
Frequently Asked Questions
What type of waterproof connectors do you have?
We offer comprehensive waterproof connector solutions including LED waterproof connectors, assembly waterproof connectors, over-mold waterproof connectors, T-connectors, Y-customized connectors, livestock industry connectors, poultry industry connectors, new energy waterproof connectors, and solar system waterproof connectors. Many of our connectors feature private molds and custom designs.
How to buy your products?
Contact our sales team online or by email with the following details:
  • Confirm current rating and number of contacts
  • Specify assembly style requirements
  • Provide cable wire gauge specifications
  • Confirm cable length and shipping preferences
How to contact with you?
Please provide your email, phone number, Skype, or WhatsApp ID. With over 8 years of industry experience, our professional sales and R&D teams can quickly understand your requirements and provide effective solutions. Feel free to reach out with any questions.
Can I get samples?
Yes, we are pleased to provide samples. You only need to cover the freight cost. Please provide your courier account number and detailed shipping address, and we will dispatch samples immediately.
Contact Information

For technical specifications, pricing, or custom requirements, please contact our sales team for professional assistance and quick response times.
