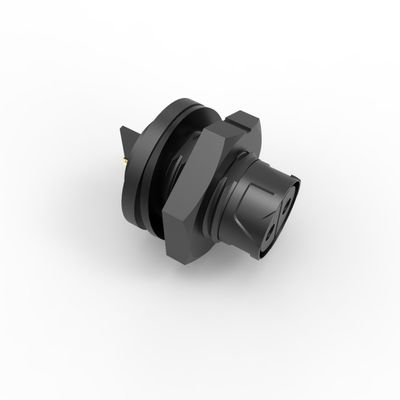

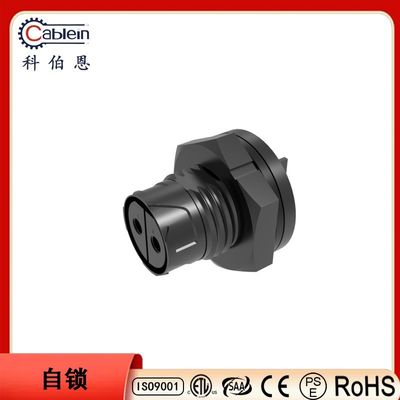

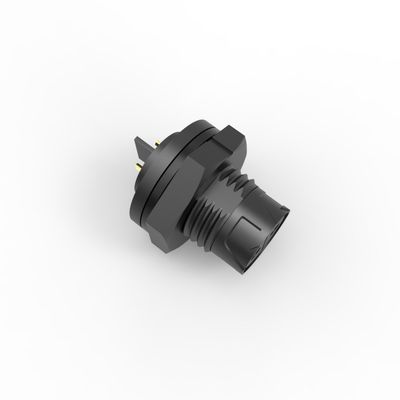

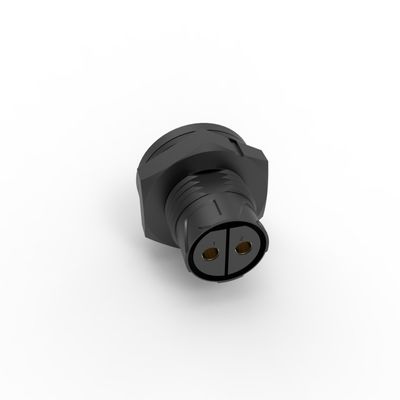

IP67 Waterproof Panel Mount Connector Female Pin Threaded Welded 3 4-Core Socket

Brand Name: Cablein
Model Number: CB-P16-FFF01-3P-X
MOQ: 1PCS
Price: Price Can Contact With Our Sales
Packaging Details: High Quality export carton
Payment Terms: T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen China
Certification:
CE, ROHS, TUV , ETL
Name:
P16 Front Waterproof Panel Mount Connector Female Pin Threaded Welded 3 4-Core Socket
Metal:
Gilded Brass
Material:
PA6 Nylon
Insertion Life:
1000 Times
Voltage:
100V
Waterproof:
IP67
Highlight:

IP67 Panel Mount Waterproof Connector

,

Female Panel Mount Waterproof Connector

Product Description
P16 Front Waterproof Panel Mount Connector
IP67 rated female pin threaded welded 3-4 core socket connector designed for industrial applications including solar micro inverters.
Product Specifications
Pin Configuration: M12 welded waterproof panel socket 2-8 cores
Current Rating: 8A+3A Max
Material: PA6 Nylon
Connection Type: Threaded Panel Mount
Operating Voltage: 100V
Assembly Method: Soldering or screw fitting
UV Resistance: Outdoor rated
Cable Jacket OD: 4-8 mm²
Technical Datasheet
Pins Number 2Pins 3Pins 4Pins 2+3Pins 6Pins 8Pins
Rated Voltage 100V 100V 80V 80V 80V 80V
Rated Current 8A 8A 8A 8A+3A 3A 3A
Insulation Voltage 3KV 3KV 1KV 1KV 1KV 1KV
DC 500V Insulation Resistance 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ 200MΩ
IP CODE IP67 IP67 IP67 IP67 IP67 IP67
Cable Specifications ≤1mm² ≤1mm² ≤1mm² ≤1+0.3mm² ≤0.2mm² ≤0.2mm²
IP67 Waterproof Panel Mount Connector Female Pin Threaded Welded 3 4-Core Socket 0 IP67 Waterproof Panel Mount Connector Female Pin Threaded Welded 3 4-Core Socket 1
Key Advantages
The P16 Front Waterproof Panel Mount Connector offers superior performance for solar micro inverters and industrial applications:
  • IP67 waterproof rating ensures reliable operation in harsh weather conditions
  • Threaded and welded construction provides secure, stable connections
  • 3-4 core socket accommodates multiple wires for efficient power transmission
  • Female pin configuration simplifies installation and connection process
  • Enhances durability and functionality of solar energy systems
Technical Drawing
IP67 Waterproof Panel Mount Connector Female Pin Threaded Welded 3 4-Core Socket 2
Frequently Asked Questions
What type of waterproof connectors do you have?
We offer comprehensive waterproof connector series including LED waterproof connectors, assembly waterproof connectors, over-mold waterproof connectors, T connectors, Y customized connectors, livestock industry connectors, poultry industry connectors, new energy connectors, and solar system waterproof connectors. Many are private mold designs with custom options available.
How to buy your products?
Contact our sales team online or by email. Please provide: current rating and number of contacts, assembly style, cable wire gauge, cable length, and preferred shipping method.
How to contact with you?
Please provide your email, phone number, Skype or WhatsApp ID. Our professional sales and R&D team with over 8 years of industry experience is ready to assist with any technical questions or requirements.
Can I get samples?
Yes, we provide samples with freight cost coverage only. Please provide your courier account number and detailed shipping address for immediate sample dispatch.
