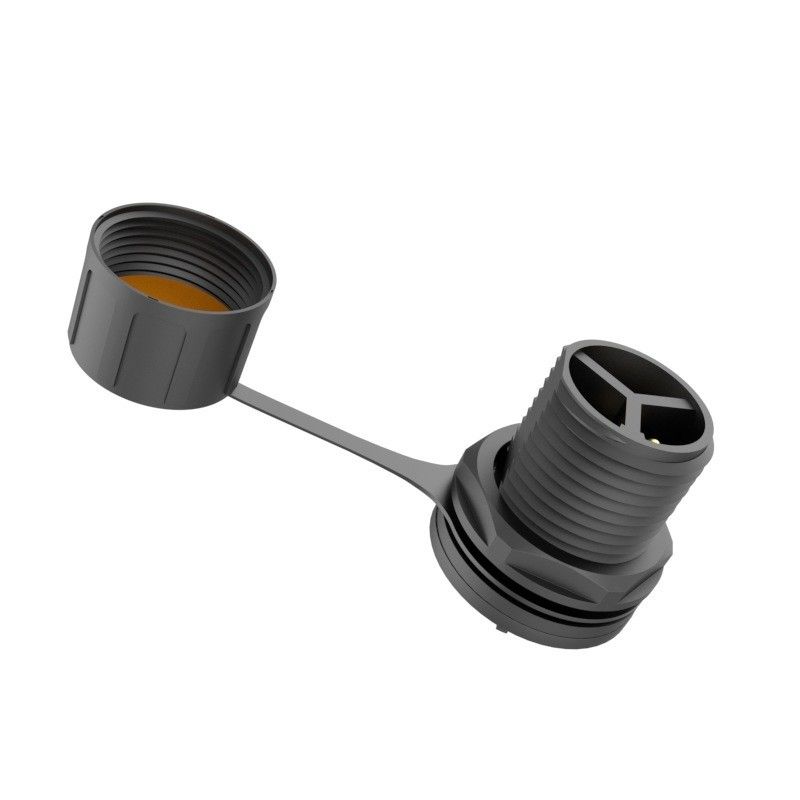

M16 3-Core Male Pin Waterproof Panel Mount Connector IP67 Screw Threaded Nylon Material

Brand Name:	Cablein
Model Number:	CB-P16-3P
MOQ:	1PCS
Price:	Price Can Contact With Our Sales
Packaging Details:	High Quality export carton
Payment Terms:	T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen China

Certification:

CE, ROHS, TUV , ETL

Connector Size:

M16 3-Core Male Pin Waterproof Panel Mount Connector IP67 Nylon Material Controller

Connector Style:

Panel Type

Connection Mode:

Screw Threaded

Connector Locking System:

Screw

Durability:

≥1000 Times

Industrial Electronics:

Accessories

Cable Range:

6-10mm

Connector Type:

Push Locking

Supply Ability:

50000pcs per day

Highlight:

Male Pin Waterproof Panel Mount Connector

3 Core Waterproof Panel Mount Connector

M16 Waterproof Connector IP67

Product Description

M16 3-Core Male Pin Waterproof Panel Mount Connector

High-quality nylon material connector with IP67 waterproof rating, designed for controller applications in demanding environments.

Product Specifications

Pin Configuration

2/3/4/5/7/9/12 Male/Female

Current Rating

10A Max

Material

PA66 Nylon

Connection Type

Screw-less waterproof connector

Operating Voltage

400V

Wire Assembly

Soldering or screw fitting

UV Resistance

Outdoor rated

Cable Jacket OD

4-9mm

Technical Datasheet

Part No.	CB-P16-2P	CB-P16-3P	CB-P16-4P	CB-P16-5P	CB-P16-7P	CB-P16-9P
Pins	2 Pin	3 Pin	4 Pin	5 Pin	7 Pin	9 Pin
Wire Connection - Bonding	✓	✓	✓	✓	✓	✓
Wire Connection - Locking	✓	✓	✓	✓	*	*
Contact Member - Bonding	φ2.7*2	φ2.7*3	φ2.7*4	φ1.8*5	φ1.8*7	φ1.0*9
Contact Member - Locking	φ2.4*2	φ2.4*3	φ2.4*4	φ1.8*5	*	*
Applicable Wire Gauge	1.5mm² /16AWG	0.5mm² /20AWG	0.5mm² /20AWG	0.5mm² /20AWG	0.5mm² /20AWG	0.5mm² /20AWG
Rated Current	15A	5A	5A	5A	5A	5A
Rated Voltage	400V AC	250V AC	250V AC	250V AC	250V AC	250V AC

Performance Characteristics

Insulation Voltage

2000V AC / 1500V AC

Contact Impedance

< 3 mΩ / < 5 mΩ

Temperature Rise

20A 30℃↓; 25A 40℃↓; 30A 50℃↓

Insulation Resistance

≥ 1000 MΩ

Mechanical Life

≥ 1900 Times

Ambient Temperature

-40℃ to +85℃

High Temperature Aging

85℃ / 168h

Product Advantages

The M16 3-Core Male Pin Waterproof Panel Mount Connector is crafted from high-quality nylon material, offering exceptional durability and reliability. With an IP67 waterproof rating, it is perfectly designed to withstand harsh environments and provide secure connections.

Ideal for controller applications, this connector ensures seamless signal transmission and power supply. Whether in industrial machinery, outdoor equipment, or any demanding setting, it guarantees stable performance. The panel mount design simplifies installation and integration, making it a convenient choice for various projects.

Applications

Suitable for industrial machinery, outdoor equipment, controller systems, and demanding environmental applications requiring reliable waterproof connectivity.

Frequently Asked Questions

What type of waterproof connectors do you have?

We offer a comprehensive range of waterproof connectors including P16 Self-Locking Injection Waterproof Connectors, Assembly waterproof connectors, Over-mold waterproof connectors, T/Y customized connectors, and specialized connectors for livestock/poultry industries, new energy applications, and solar systems.

How to buy your products?

Contact our sales team online or by email. Please provide:

Current rating and number of contacts required
Assembly style preference
Cable wire gauge specifications
Cable length and shipping requirements

How to contact with you?

Please provide your email, phone number, Skype, or WhatsApp ID. Our professional sales and R&D team with over 8 years of industry experience is ready to assist with any technical questions or requirements.

Can I get samples?

Yes, we provide samples with freight cost coverage. Please provide your courier account number and detailed shipping address for prompt sample delivery.
